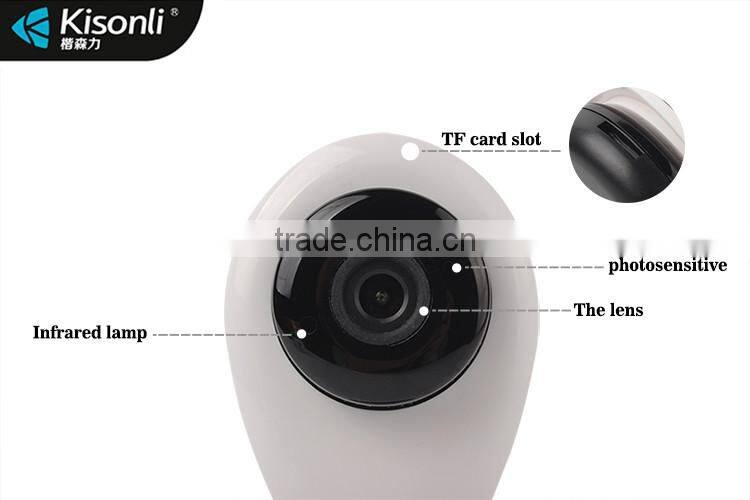

High Quality night vision camera, wireless ip camera with TF Card
Model |
Model No. |
Y8 |
System |
Operating System |
Embedded Linux OS |
Image Sensor |
Sensor |
High Definitioin Color CMOS Sensor |
Display Resolution |
1280*720 (1.0 Megapixel) |
|
Min. Illuminatioin |
0.1 Lux / F1.2 (With IR Illuminator) |
|
Lens |
Lens Type |
Glass Lens |
Lens Parameter |
Focal Length: 3.6 mm; Aperture: F 2.4 |
|
Angle of View |
90 Degrees |
|
Video |
Image Compression |
H.264. |
Image Frame Rate |
30fps maxmium, downward adjustable |
|
Resolution |
720P(1280 x 720), VGA(640 x 360), QVGA(320 x 180) |
|
Image Adjustment |
Automatic |
|
Flip Mirror Image |
Automatic (Built-in gravity sensing system, Auto filp mirror image) |
|
Infrared Mode |
Automatic |
|
Night Visibility |
6pcs IR-LEDs, night vision range up to 8 metres |
|
Audio |
Coding Standards |
G.711A. |
Input / Output |
Supports two-way audio, Built-in Mic & Speaker |
|
Record |
microSD Card |
Supports 128G microSD Card ( only supports FAT32 file system format) |
Record Mode |
Alarm record, motion detection alarm record, timing video, manual Record |
|
Record Standard |
VGA 25 fps |
|
Playback |
Supports remote playback |
|
Network |
Wireless |
Standard IEEE 802.11 b/g/n, Security support: WEP, WPA, WPA2 Encryption |
Online Visitor |
Online Visitor LAN supports 10 people, WAN supports 5 people |
|
Onvif |
Supports Onvif Protocol and supports NVR (above Onvif version 2.4.2) |
|
Others |
Product Type |
Plastic/ Indoor Use |
DC Power |
DC5V/1A |
|
Working Temperature |
0~55 |
|
Working Humidity |
10%- 90% RH |
|
Size |
Approx. 68x68x 110mm (LxWxH) |
|
Weight |
Approx. 350g |
|
|
System Required
|
SmartPhone & TablePC |
Supports iOS and Android system |
PC |
Only supports remote monitor on Internet Explorer(IE) browser |
Feature:
HD 1.0 mega pixels home series IP IR cameras; H.264 Video Compression.
High image and video quality, two-way audio monitoring.
Allow remote viewing & record from anywhere anytime.
WiFi compliant with wireless standards IEEE 802.11b/g/n, onvif.
P2P plug and play, Push video, APP, Motion detection alarm.
SD Slot support (MAX: 64G).

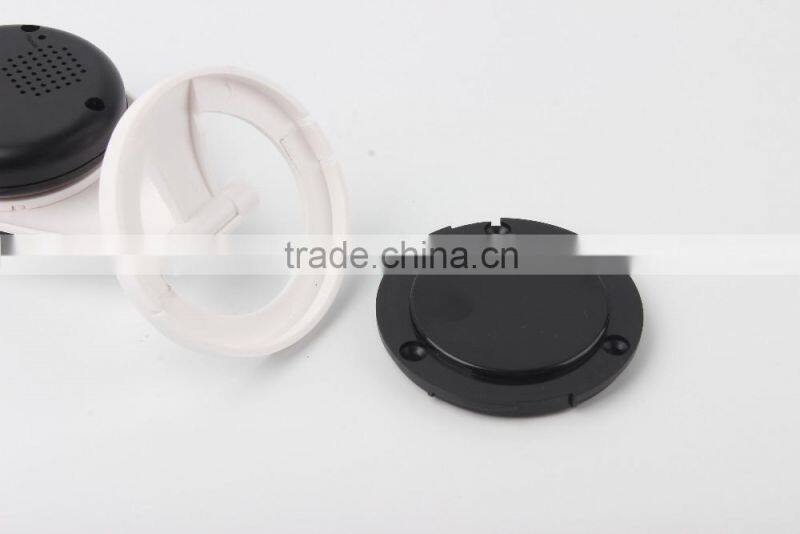

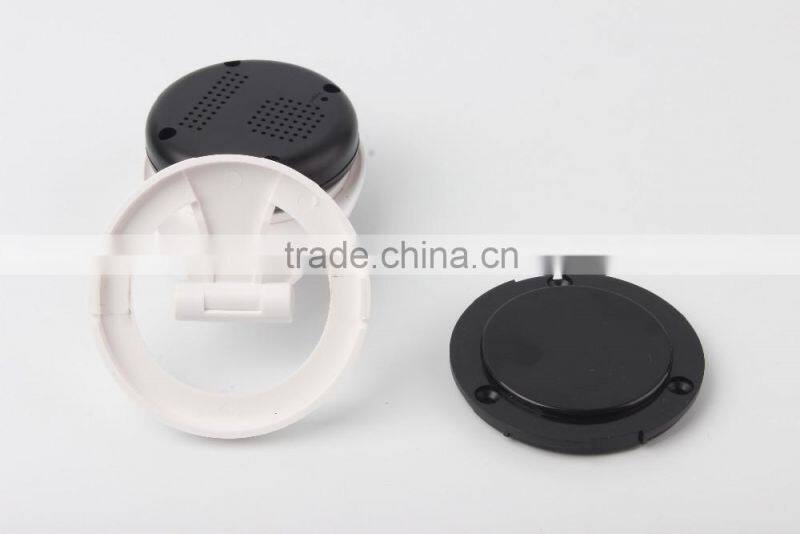

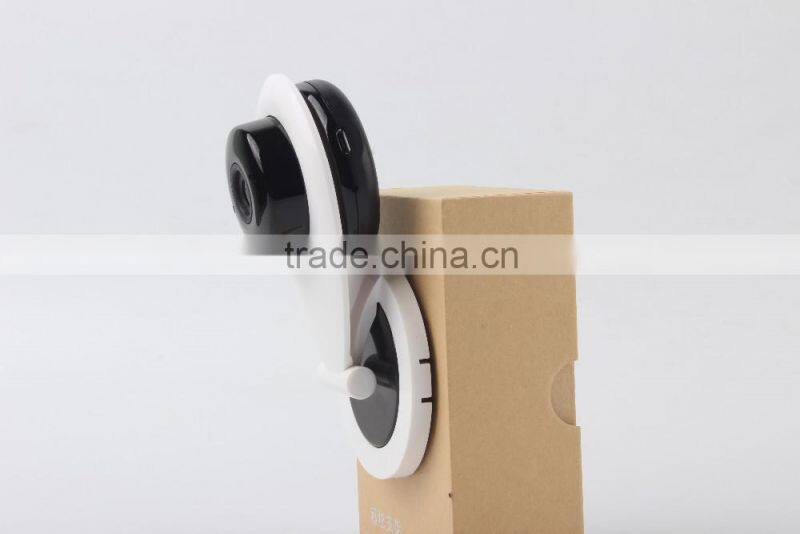

With magnetic on the bottom, easily to be installed.

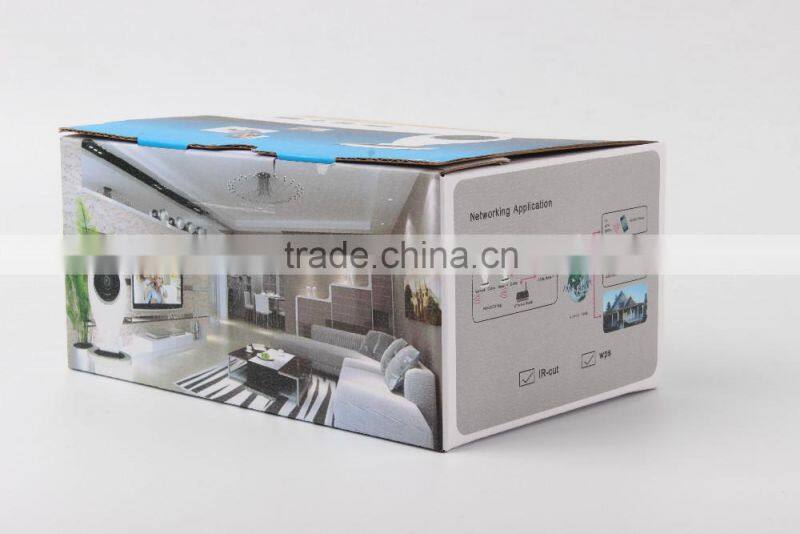

Package
Color box sizes: 17*11*9cm
Weight: 0.25kg
12 month Warranty after goods ship.
Why choose us ?
1. We are Shenzhen leading manufacturer of cameras.
2. Alibaba Assessed Gold Supplier.
3. 100% QC inspected before shipment.
4. Best after-sales & pre-sales services.
Shipment
Quick installtion guide
1,Downlaod and install YYP2P mobile phone APP
search YYP2P from Apple Store or Android Google Play according to your cell-phone system,you may also download YYP2P on the website .Then register and log in YYP2P following the prompts
2,Adding camera

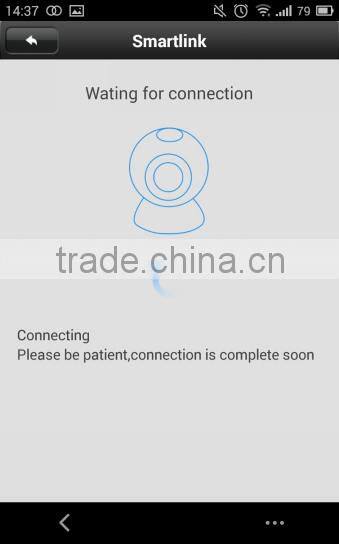

Way1 adding with wifi
connecting your cell-phone to a wifi(please make sure the wifi connected is 2.4G because the camera wifi does not support 5G)open the YYP2P APP in your phone,

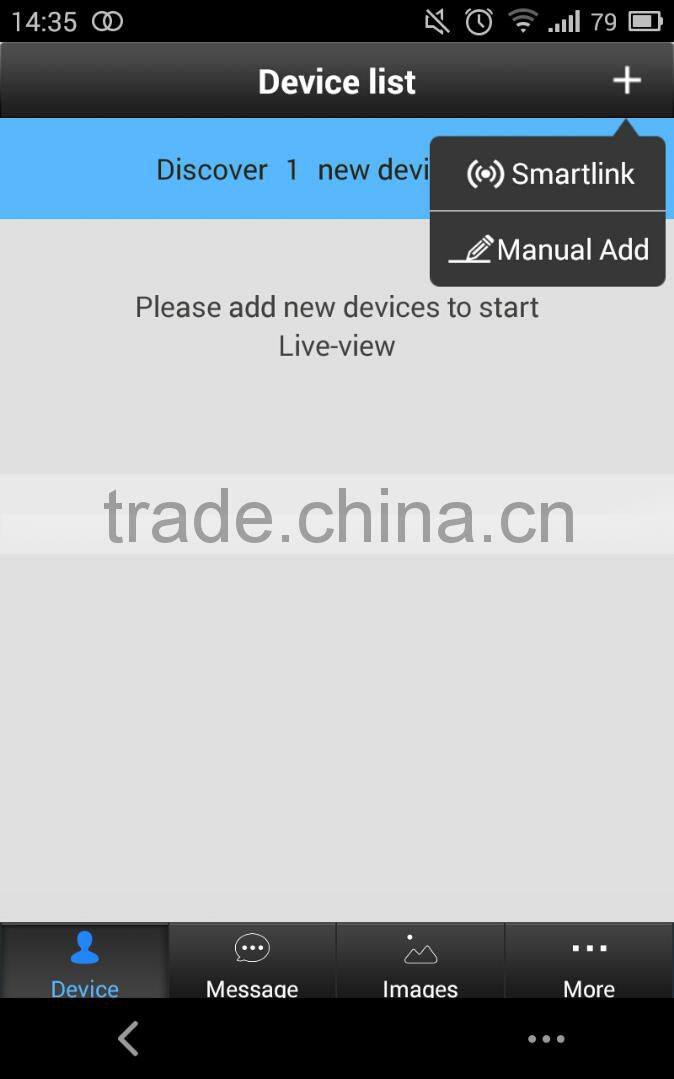

click the adding bottom"+",on the top right corner of the device list,choose intelligent online,

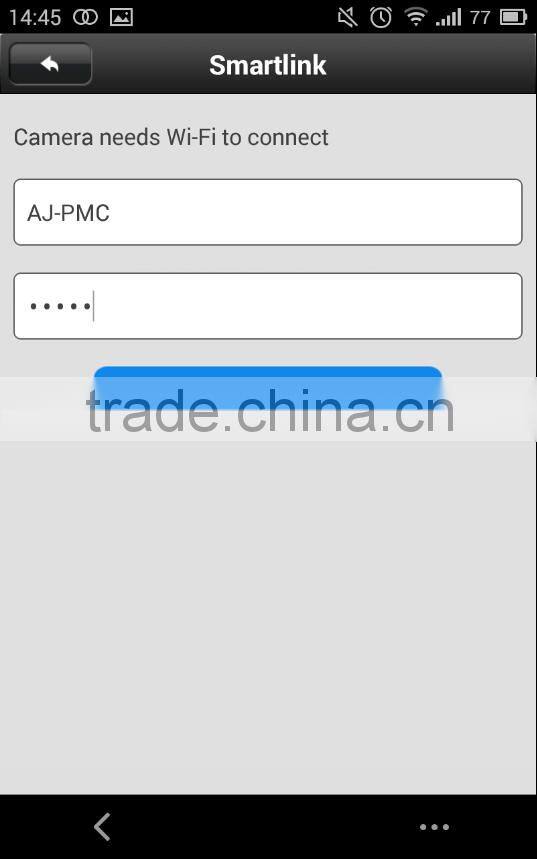

the APP will automatically identify the WIF SSID connected ,input the password and click "next",
thencomplete the rest operations following the prompts.

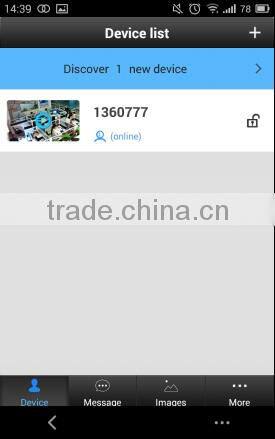

After the camera is connected to WiFi,input the password of the device and save
nnecting internet through wired network
Switch on the camera, connect the one end of the network cable to the internet interface of the camera,
the other end to the LAN interface of the router(make sure thr DHCP function of the router is open),
if the camera is successfully connected to the internet, the network light will shine constantly.
4,the wireless sensor learning the code
The camera(some models) can match with the wireless sensor learning of the same frequency
(door magnet, smoke detector, body Pir etc.) ,and set up wireless alarm system; for example,
put the door magnet learning to the 1st channel of the hall defence area:
click the blank entry in the device list, choose setting-up in the pop-up option
menu>defence area>hall>channel
1, click ok and trigger door sensor at the same time,
it will show “Study Successfully”. In the alarm settings, open “receiving alarm information”.
At this moment, organizing a defense for the camera, after the success of the protection,
once the door sensor is triggered, the camera will send alarm messages to the mobile terminal App.
