Help CenterSolar Cell Sorting Machine
Related Products
Name: solar cell sorting machine .

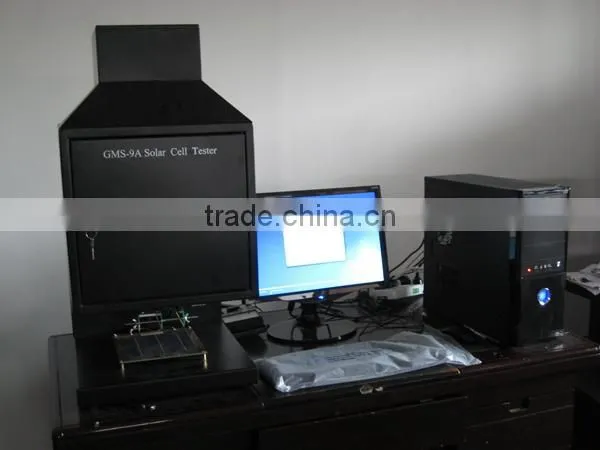

SOLAR CELL TESTER IS USED IN SOLAR PANEL ASSEMBLY LINE:
About Gmee Solar
GMEE SOLAR, specializing in turnkey solution for solar module production line, so far has exported machines and production
lines to many countries, like Mexico, UK, India, Thailand, Malaysia, US, Japan, Germany, Italy, etc., and continuously gets praise
and trust from customers. With 8+ years of experience in the Solar PV industry, GMEE SOLAR together with its solid parters,
has formed a professional team to fulfill its customer satisfaction. .
GMEE SOLAR’s head company -- YIHENG
YIHENG is the first and largest manufacturer of laminator in China since 2001. Its “ORIENT” laminators have 70% high-end market in China. The largest customers include: Yingli solar, CSI, Jinko, and JA solar.
GMEE SOLAR’s Solid Partner -- GEOLITE
GEOLITE was founded in 2003, and owns patents of 13 advanced technology. GEOLITE invented the first auto solar cell stringer.
in China and is the leading manufacturer of auto stringer with complete solution of the auto solar module production line.
Features & main functions
1.Acquired data: I-V curve, Voc, Isc, Pmp (Peak Power), Current and Voltage at Peak Power, Current at Constant
Voltage, FF (Fill factor), Conversion Efficiency, Light Intensity, Ambient Temperature;
2. Automatic sorting and displaying. It can be sorted by the current and voltage, and the result can be displayed on the test plane.
3. Four-line measurement. It ensures the accuracy of solar module test.
4. Light intensity and temperature can be taken simultaneously. It ensures the automatical correction accuracy of module temperature and light intensity.
Parameter:
Testing area: 16cm*16cm
GMS-9A |
GMS-8B |
||
Power Supply |
220VAC±10%, 50Hz |
Power Supply |
220VAC±10%, 50Hz |
Input Power |
1.1KW |
Input Power |
1.1KW |
Spectral Irradiance Distribution |
IEC 60904-9, AAA |
Spectral Irradiance Distribution |
IEC 60904-9, AAA |
Testing Area |
160mm*160mm |
Testing Area |
200mm*200mm |
Spectrum |
AM1.5 |
Spectrum |
AM1.5 |
Simulator Class |
A |
Simulator Class |
B |
Non-uniformity of irradiance |
±2% |
Non-uniformity of irradiance |
±3% |
LTI |
±1% |
LTI |
±1% |
STI |
±0.5% |
STI |
±0.5% |
Light pulse duration |
10ms |
Light pulse duration |
10ms |
Lamp lifetime |
300,000 flashes |
Lamp lifetime |
1,000,000 flashes |
Range of Light Intensity |
600 - 1250W/ m², Adjustable |
Range of Light Intensity |
300 - 1200W/ m², Adjustable |
Voltage ranges |
0-7.5V/15V/30V/60V |
Voltage ranges |
0-12V |
Current ranges |
0-0.75A/1.5A/3A/6A/12A |
Current ranges |
0-0.8A |
Data collection |
2ms~8ms |
Data collection |
3ms |
Machine Dimension |
380mm*490mm*700mm |
Machine Dimension |
380mm*490mm*700mm |
Weight |
40kg |
Weight |
40kg |
Details show:

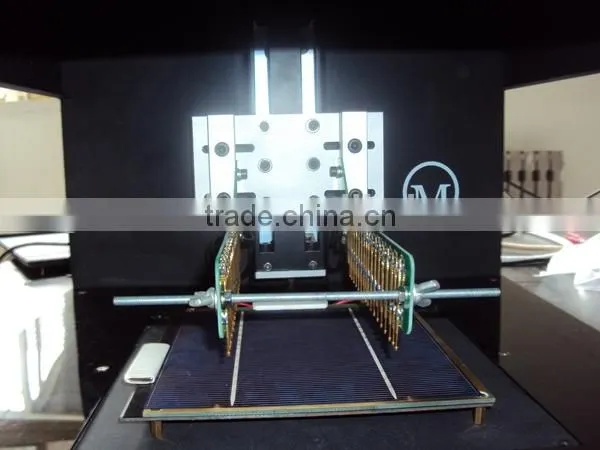

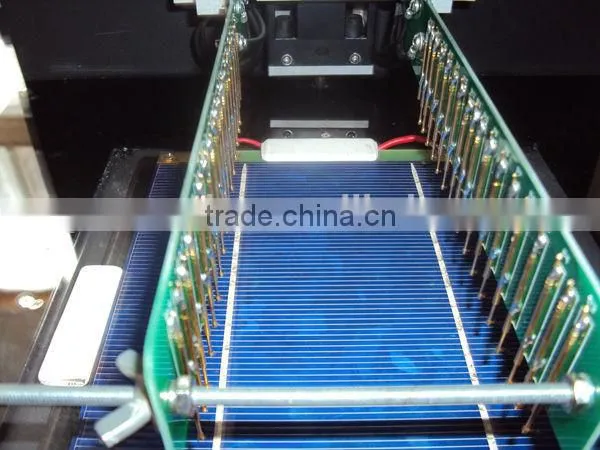

Testing Area

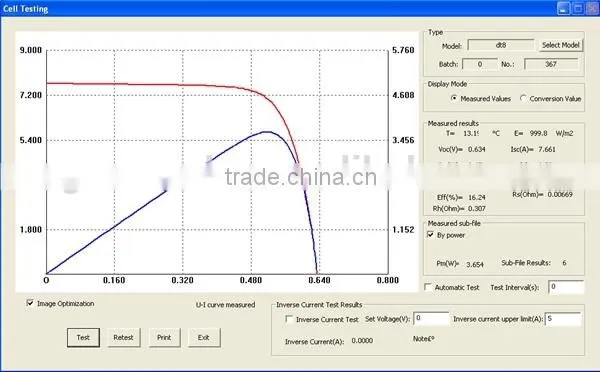

Testing report
