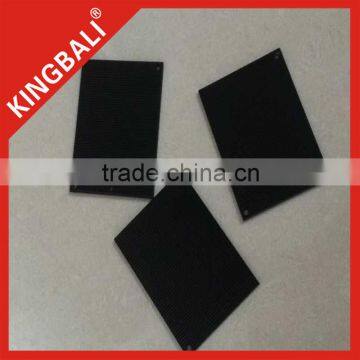

KingBali 8400 series Aluminium&Copper Heat Dissipation Thermal Radiating Material
Material:
Nano-carbon heat powder
8400 Thermal black powder, comprising a resin, thermally conductive powder, graphene and other ingredients;It can be sprayed on shaped radiator, after high temperature curing, uniform coverage in the radiator; With high wear resistance, acid and alkali resistance, high thermal performance.
Figure a Figure b

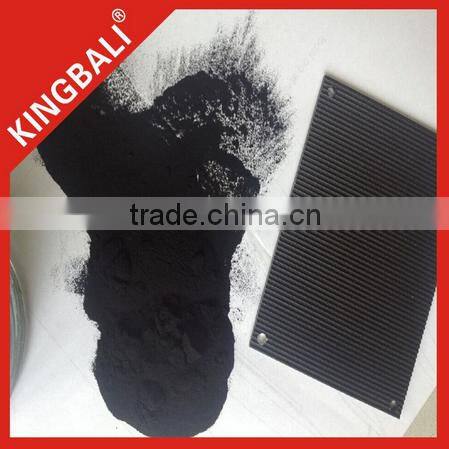

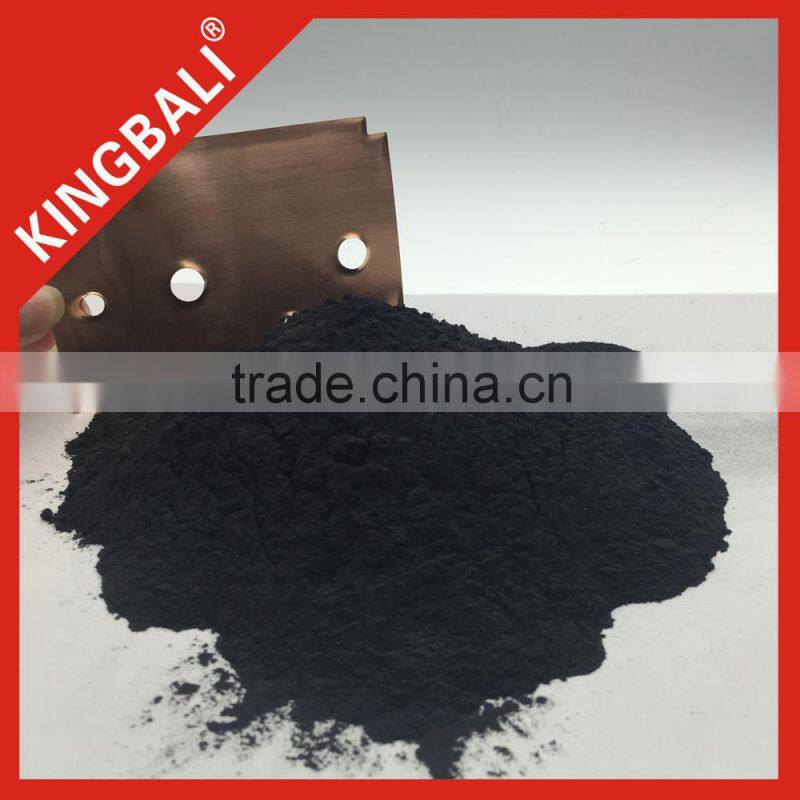

Figure a:8400 Nano-carbon heat powder

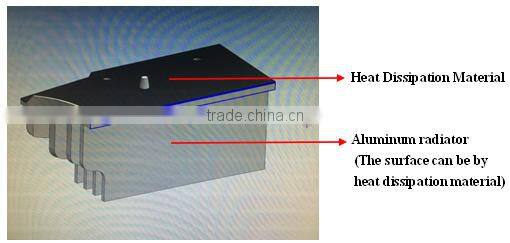

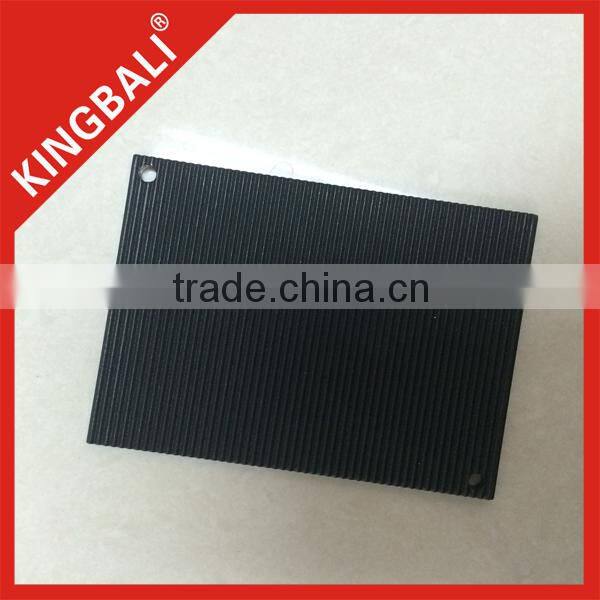

Figure b:Aluminum radiator spraying carbon nano body schematic
Features:
1. With good thermal conductivity and temperature effect.
2. Good thermal stability, chemical stability and weather resistance.
3. Good processing performance, hardening heat without peeling.
4. Good heat dissipation, sprayed on different radiator, cooling effect is increased by 15%-25% of harmful substances on the human body, is a new type of coolant.

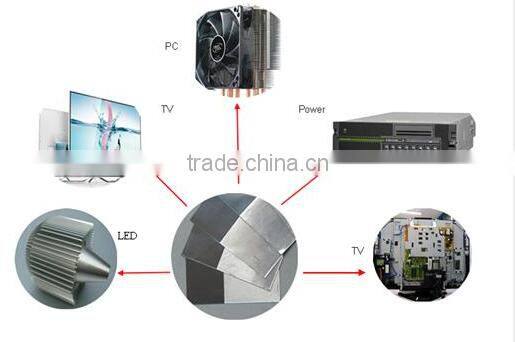

5. Can be widely used in LED, computers, communications, consumer electronics, heat dissipation material is a good solution to improve the work performance, can reduce the difficulty of design, reduce cost, reduce the thermal damage and more, the cost is low.
About Test:

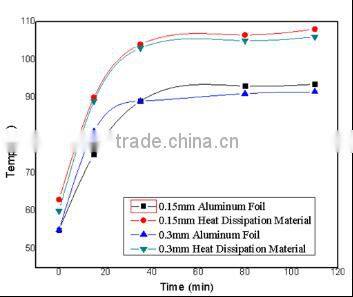

Spraying temperature contrast on the copper foil, aluminum foil, aluminum:
8400 series Aluminium&Copper Heat Dissipation Thermal Radiating Material:
TYPICAL PROPERTIES OF 8400 | ||
Model |
8400 |
standard |
Color |
Black |
Visual |
Salt water spray test |
≥500hr No blistering peeling |
ASTMB117 |
Coating thickness |
30~80μm |
ASTMD1186 |
Resistance |
1.0x1012 |
ASTM-D257 |
Accelerated weathering test |
>600hr |
UV-A340 |
Color aberration |
ΔE≤1.0 |
Colorimeter |
Anti-alcohol |
Wipe 20 times without fading |
Anhydrous Ethanol |
Application:
1.Woven Bag or Marked With Customer's Information Or Customized |
2.Standard Export Carton |
3. QC Department Will Check In Case The Packing Method Isn't Safe Enough. |
- Your inquiry related to our product & price will be replied within 24hours.
- Well-trained & experienced staff are to answer all your inquiries in English of course.
- OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
- Your business relationship with us will be confidential to any third party.
- Good after-sale service offered, please get back if you got question.
Our company Huizhou Kingbali Technology Co.,Ltd,we are the manufacturer for Thermal Interface Material Product/Die cut Material Product/Silicone&Rubber Material Product etc.
Our customer are widely in the domestic and foreign markets.
