Specifications
Industrial Juice Extractor1,Stainless Steel
2,Easy Operate
3,High Efficiency
4,YH-Series
380V~4Kw Fruit Juice Machine/High Quality Juice Making Machine/Industrial Juice Extractor
Parameter Of Industrial Juice Extractor :
Model |
YH-1.5 |
Capacity |
1.5T/H |
Screw diameter |
175mm |
Screw speed |
400rpm |
Filter screen hole |
0.3mm |
Power |
4kw |
Dimension |
1560*450*1340mm |
Description Of Industrial Juice Extractor :
1,Juice making machine for tomato, pineapple, carrot, apple ,aloe, cactus ,fruit and vegetable juice press.
2,juice making machine by the propulsion of the screw axis extrusion, with juice, discharging function.
3,The juice making machine material of wet part made by high quality stainless steel
4,The Component of the machine included :front support ,hopper , spiral shaft, Filter net,
juice holding device, back support , Out slag notch and so on . Screw shaft is supported on the bearing seat,
the right end is supported on the wheel bearing seat, motor by a pair of belt wheel drives the screw
shaft through operation.
Working Way Of Industrial Juice Extractor :
Screw shaft clockwise rotation along the direction of the Slag outlet, bottom diameter slowly become big
but the Pitch narrows gradually ,when material pushed by the screw shaft .Due to the spiral chamber
narrows gradually, thus forming the material press. fruit and vegetable products join the hopper, the
screw shaft propulsion and compression, by squeezing out the juice through a filter into the bottom of
a juice holding device, and the slag by the axis of the screw and regulating head taper portion is formed
between the annular gap discharge, pressure head can adjust the size of the gap, to adjust the slag
resistance, can change the slag rate.
Juice making machine can process:
1.Fruits:pineapple .pear.apple
2.Berries fruit: mulberry fruit, grapes, oranges...
3.Vegetable:tomatoes, ginger, garlic, celery .carrot

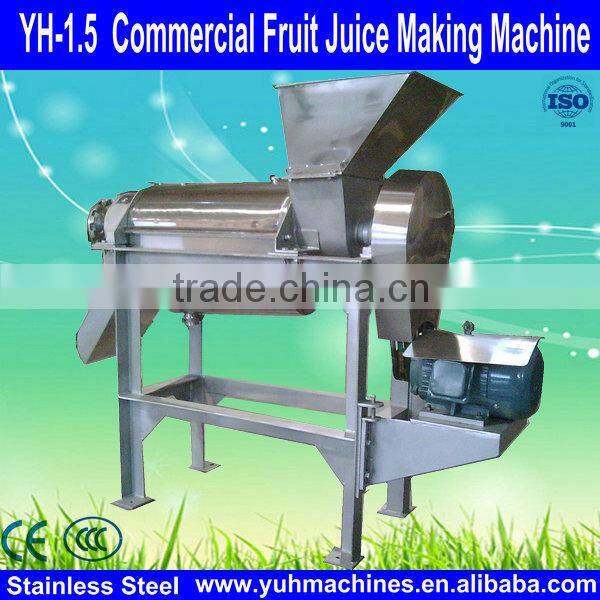

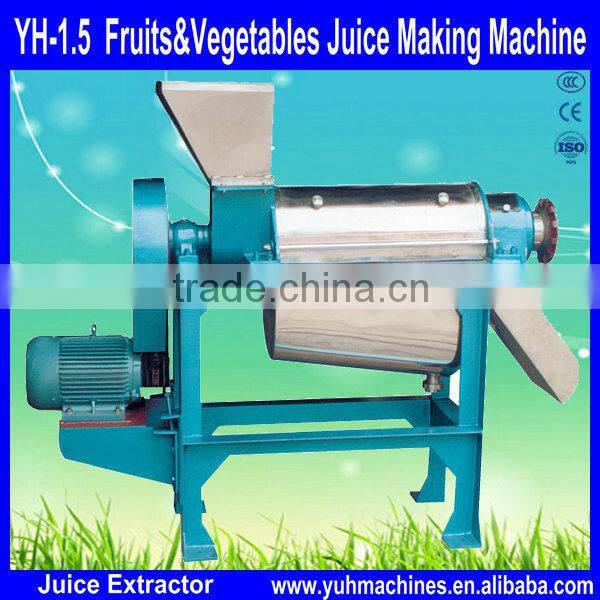

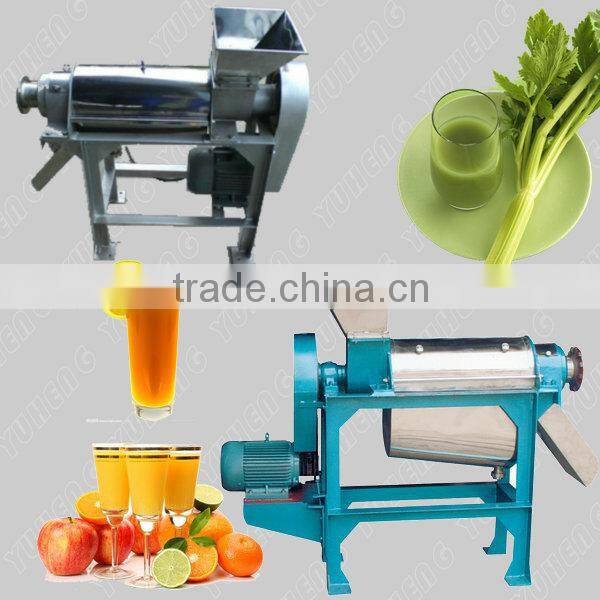

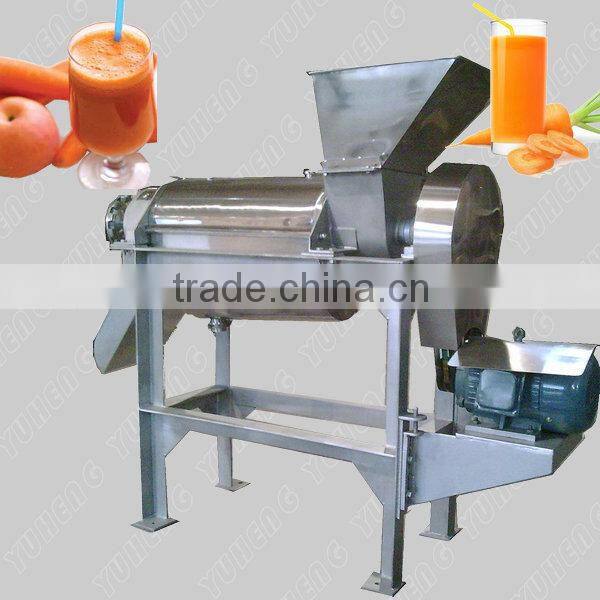

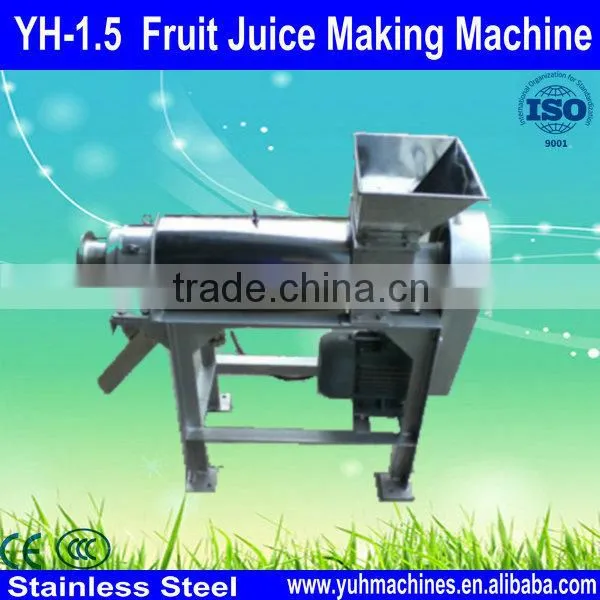

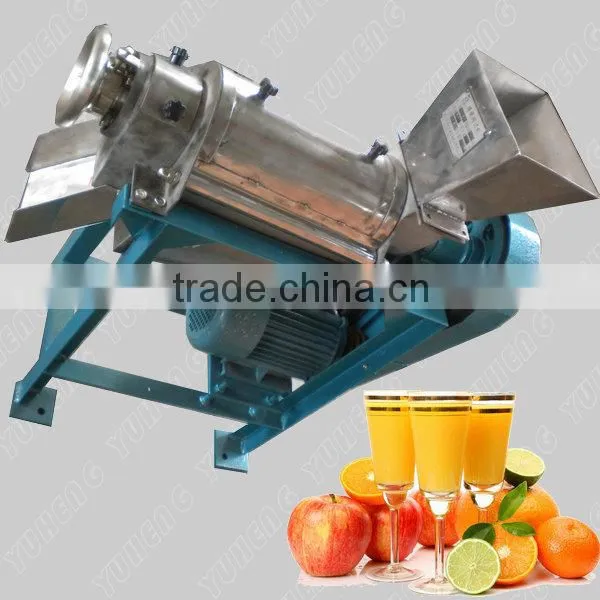

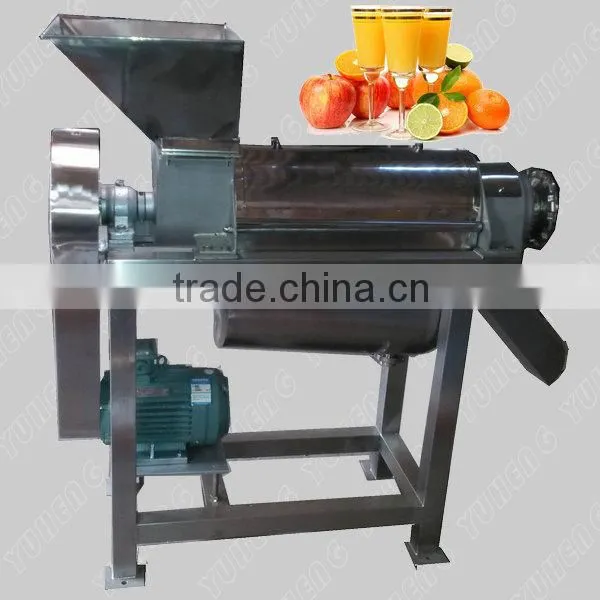

Picture Of Industrial Juice Extractor :
Packing And Shipping Of Industrial Juice Extractor :
Packaging Method: Wooden Case Package/Plywood Packing
Shipping Way: By Sea or By Air or By express:DHL UPS TNT FEDEX EMS (Select one way)
Packing Picture Of Industrial Juice Extractor :
- One Year Guarantee for whole machine.
- 24 hours technical support by email.
- OEM is welcomed.
Q: How do I buy from your company?
A: When you find the product you want, just send inquiry to us, and we will reply you within 24 hours .then send you order conformation information, when you confirm to buy the products, we will prepare the proforma invoice and bank details for you. then you paid.
Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer), Western Union. finish the payment.
Q: How can you guarantee my payment ?
A : Our company is ALIBABA GOLD SUPPLIER. and ALIBABA have make us done enterprise authentication. and our company is located in the capital of China, beijing city. Beijing is typical of upper class culture. We always adhere to the "customers foremost, quality first" of aim, pay attention to honesty, the pursuit of excellence.
Q: Can I buy different models in one time?
A: Yes we can combine the shipments.
Q: How long it will take before you ship the products?
A: We normally ship your order within 24-48 hours since receving your payment.
Q: If i have any questions ,how can i contact you?
A: You can always contact us with your problems.by email or phone.
We are always there with warm service.
