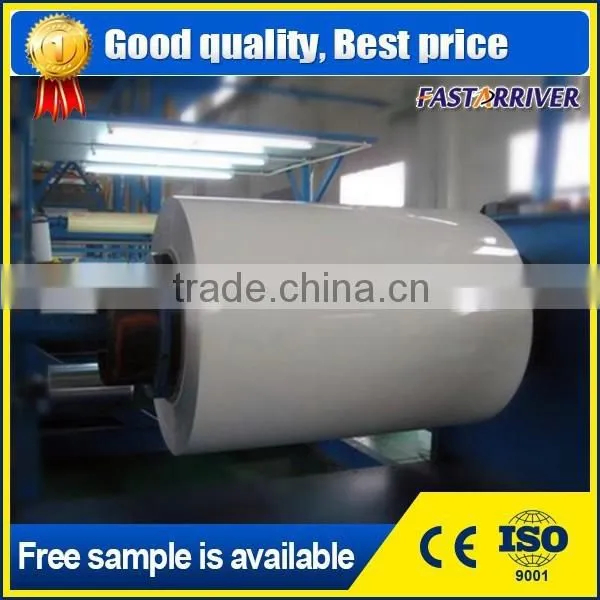

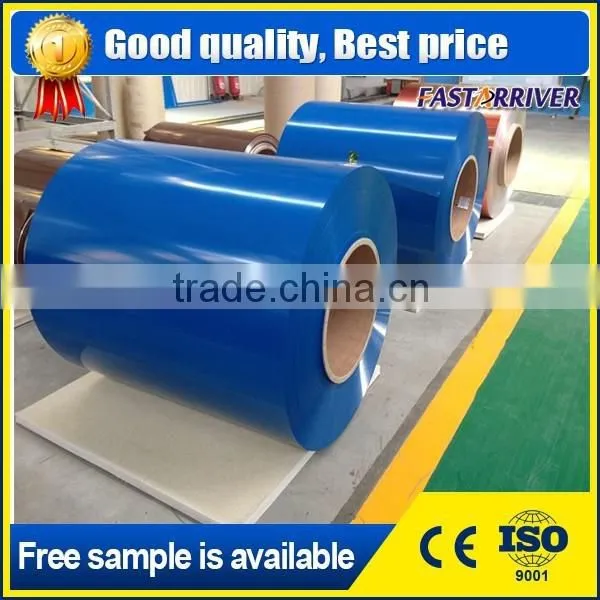

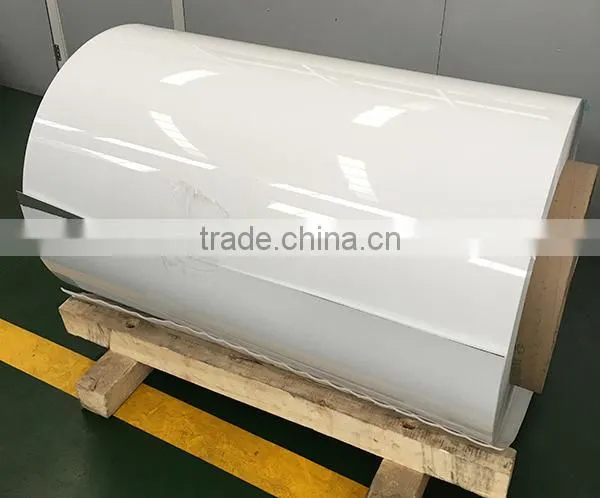

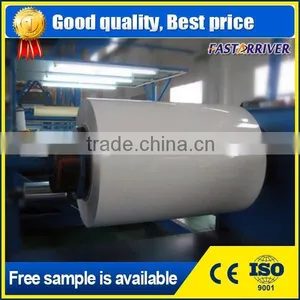

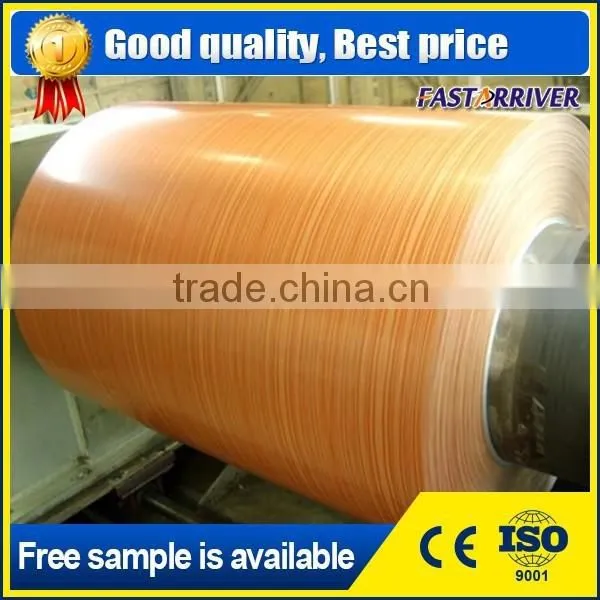

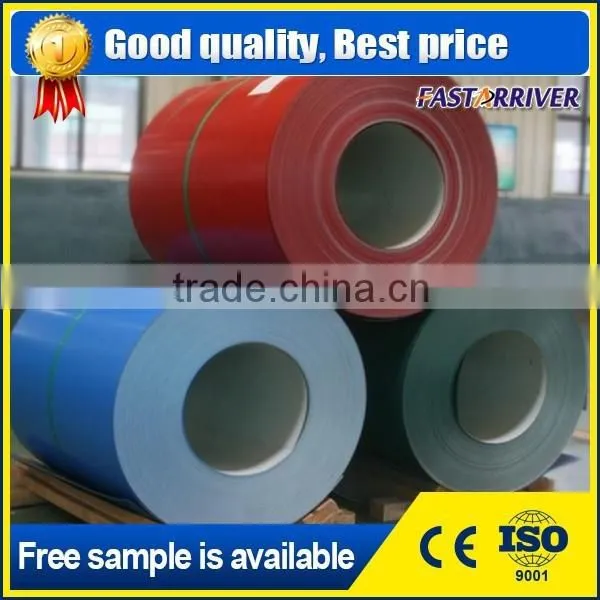

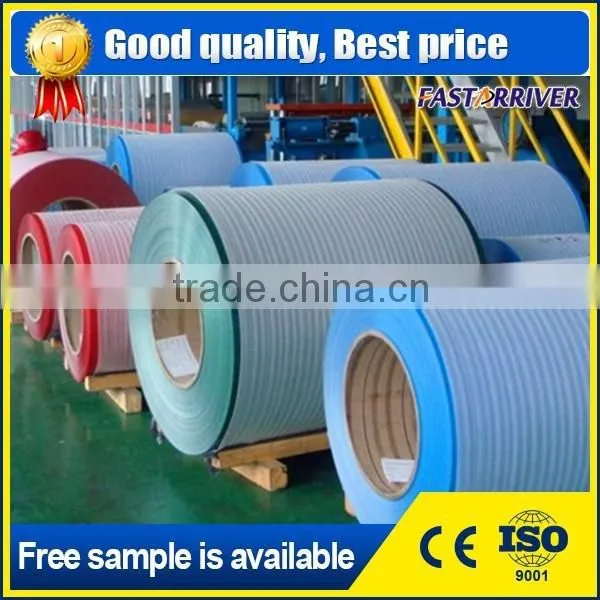

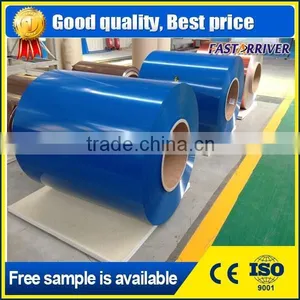

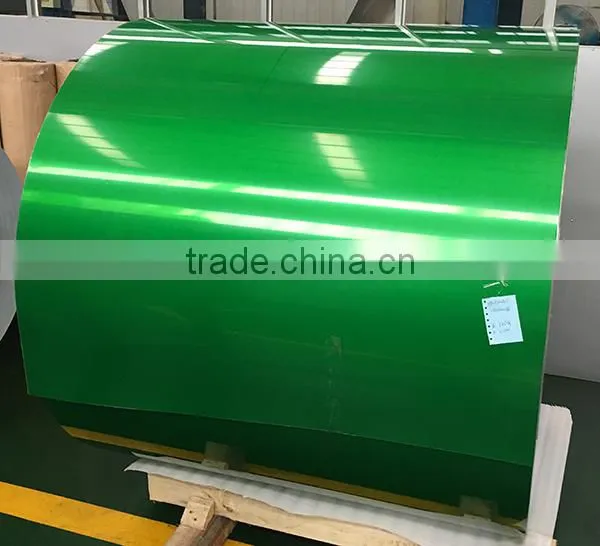

wholesale PE PVDF Color Painted Aluminum Coil 3003
u SPECIFICATION
Alloy |
Temper |
Thickness |
Width |
Interior diameter |
Color |
|
A1100,A3003,A1050, A8011,A3105,A5005 etc |
O - H112 |
0.25-2.0mm |
100-1650mm |
405mm, 505mm, 150mm etc. |
RAL PANTONE Or as customer sample |
Specification can be customized according to request | |||||
u COATING
Coating |
PE,PVDF |
Color |
AS to all RAL color |
Gloss |
10-90%(EN ISO-2813:1994) |
Coating Thickness |
PE: more than 18 micron |
PVDF: more than 25 micron | |
Coating Hardness (pencil resistance) |
More than 2h |
Coating adhesion |
5J(EN ISO-2409:1994) |
Impact Resistance |
No peeling or cracking(50 kg/cm,ASTMD-2794:1993) |
Flexibility (T-bend) |
2T |
MEK resistance |
More than 100 |
u PVDF Color Coating
It is well known that fluorocarbon lacquer coating (PVDF coating) owes the best acid resistant/alkali and
temperature tolerant capabilities of all painting materials. Being the best quality of precoated aluminum, PVDF
coated coils are especially suitable for outdoor roofing walls and ceiling manufacturing.
u Polyester (PE) Color Coating
Using high-grade polyester lacquer coating material, the finished coated coils are with delicate color uniform
texture, color and diverse. It is the most popular and most common used materials in decorative usage. The PE
coated aluminum are widely used in ACP( aluminum composite panel ) production and indoor ceiling usage.
v Common RAL colors for choice
u APPLICATION
l Exterior applications: wall cladding, facades, roofs and canopies, tunnels, column covers or renovations
l Interior applications: wall cladding, ceilings, bathrooms, kitchens and balconies
l Advertisement and market applications: display platforms, signboards, fascia and shop fronts
FREE SAMPLE IS AVAILABLE
Any needs or interests, please feel free to contact me,
best price and service will be provided for you.
