Best Quality Customize Food Packaging Bags With Window

Best Quality Customize Food Packaging Bags With Window thumbnail-1
Best Quality Customize Food Packaging Bags With Window photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Boevan
Model Number:
BHH-360Q
Contact Supplier Request Quote Chat Now
Shanghai Boevan Packaging Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Boevan
Model Number BHH-360Q

Specifications

1.food packaging bags with window
2.Widely used in various fields
3.Premium configuration
4.Reasonable Price

BHH-360Q    Best quality customize food packaging bags with window



Best quality customize food packaging bags with window



General Description For food packaging bags with window:

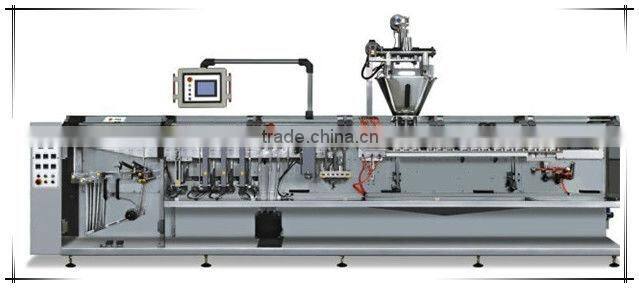

This is a fully-automatic packing machine with Form-Fill-Seal function which is widely used for food, beverage, cosmetics, chemicals, pharmaceuticals packaging. While, this type of packing machine adopts triplex outlet design in order to improve the producing capability. The packing material can be regular laminated film such as, PE/AL/PET; PE/NY/AL/PET; CPP/NY/AL/PET. This type of machine can make stand up pouch and then finish the packing process. The main packager can be integrated with various filling systems, suitable for all kinds of products, such as powder, small granule, liquid, viscous liquid, paste, tablet, candy, solid, stick, large solid and irregular products.



Technical Parameter For food packaging bags with window:



Model BHH-360Q
Pouch Size 50mm*70mm(Min.)   90mm*180(Max.)
Filling Capacity 100ml
Packing Speed 240-300ppm
Power 14kw
Air Consumption 400NL/min
Weight 2500kg
Dimension 7050*970*1360mm
Material Quality Stainless steel/Carbon steel
Packing Material Laminated film(PE/NY/AL/PET)
Function 3 side seal, 4 side seal



Features&Advantages For food packaging bags with window:



Triplex Design

Stable operation, easy adjustment; 3 pouches at the same time, triple productivity



Servo Advance System

Easy computerized specification change; Stable pouch advance with less deviation; Big torquemoment of pouch advance, suitable for big volume





Unique Triple Knives

Smooth cut, no entaglement, little knife barasion, long operation life span.



Packing Process For food packaging bags with window:


 Best quality customize food packaging bags with window

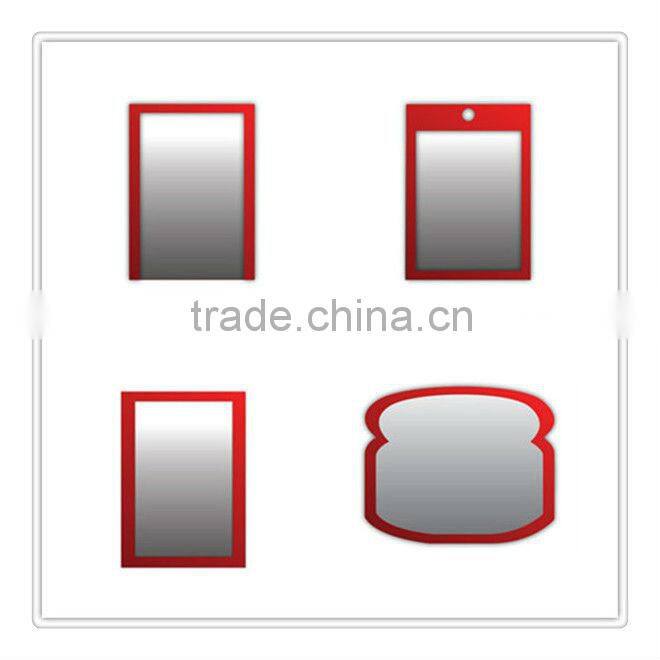

Packing Sample - 3/4 Side Seal:

Best quality customize food packaging bags with window

Configuration - Top Brand:

Main Components Vendor
PLC Allen-Bradley/SIEMENS/Mitsubishi
Touch Screen Allen-Bradley/SIEMENS/Mitsubishi
Inverter   SIEMENS/Mitsubishi
Servo Motor SIEMENS/Panasonic
Photocell Autonics
Main Motor ABB
Pneumatic Parts SMC/Festo/CAMOZZ
Vacuum Generator SMC/Festo/CAMOZZ

Application - Food, Beverage, Cosmetics, Household/Pharmaceutical Industry:

1.Food Industry:
Mayonnaise & Sauce, Tomato Ketchup, Candy & Chocolate, Snack, Milk Powder, Oil Product, Dairy Food, Spices & Seasoning, Pet Food, Honey and so on.



2.Beverage Industry:

Coffee & Tea, Powder Drink, Water Product, Yoghurt & Liquid Milk, Fruit Juice, Beer & Liquor, Nutritional Beverages and so on.



3.Cosmetics & Personal Care:

Skin Care, Hair Care, Sun Care, Baby Care, Oral Care, Bath & Shower, Cream, Toweletters, Perfumery and so on.



4.Household Industry:

Dishwash Product, Detergent, Laundry Product, Fabric Softener, Floor Cleaner, Air Freshener and so on.



5.Industrial Chemicals:

Agrichemical, adhesive, Lubricant, Paint and so on.



6.Pharmaceutical Industry:

Powder Pharma, Granule Pharma, Tablet Pharma, Capsule Pharma, Liquid Pharma, Ampoule and so on.

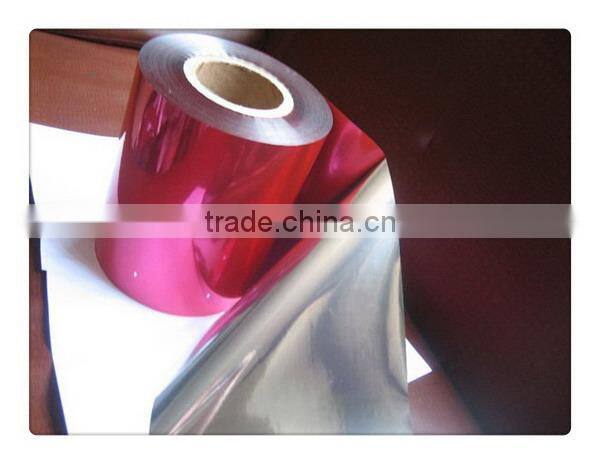

Packaging Material



PET/LLDPE, PET/AL/LLDPE, PET/AL/NY/CPP, OPP/LLDPE, OPP/CPP, OPP/AL/LLDPE, OPP/PET/CPP

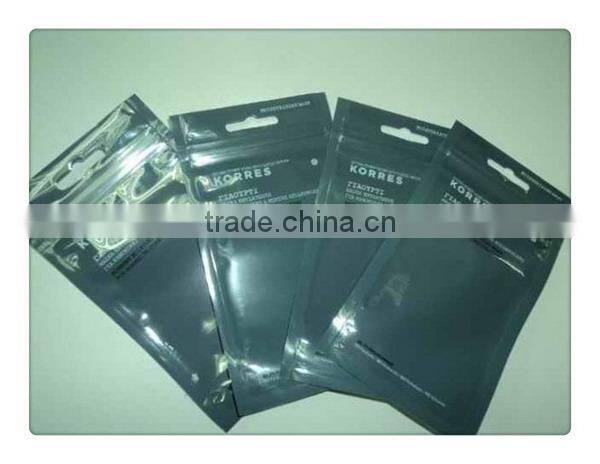

Pouch Photo





Energetic Staff Member!Best quality customize food packaging bags with window



Active Market Promotion!

Best quality customize food packaging bags with window



With pleasure to help you solve the packing trouble!

Best quality customize food packaging bags with window



Any need or question on packaging please do not hesitate to contact us!
