Acuvim 100 Series single phase electricity meter
- 2000 Piece / Pieces per Month
- Beijing
- D/P D/A
- Programmable Power AMC72L-DV/C One Circuit DC Voltage LCD Display Output 4~20mA DC Power Energy Meter Voltmeter Current Meter
- Acrel AMC72L-DV/C DC Digital Voltage Voltmeter 2-channel DI&2-channel DO CE Certificates 4~20mA DC Single Phase Digital Energy
- AMC Series Programmable Power Meter AMC72L-DV Communication RS485 Output 4~20mA DC CE Certificates Single Phase Digital Energy
- DC Digital Voltmeter AMC72L-DV/C LCD Display 1-circuit Voltmeter Panel Display 0.5 Accuracy RS485 Port With Modbus-RTU
- Acrel AMC72L-DV/C DC Digital Voltmeter 1-circuit DC Voltage 85~265V AC/DC Low&High Current Alarm Single Phase Digital Meter
- DC Digital Voltmeter AMC72L-DV/C CE Certificates RS485 Port With Modbus-RTU 1-circuit Electrical Voltage Meter For Selling
Product Details
Place of Origin: | Beijing, China | Brand Name: | Acuvim, Accuenergy | Model Number: | Acuvim 100, Acuvim 190, Acuvim 130, Acuvim 101, Acuvim 161...... |
Measuring Current Range: | 0~50000A | Measuring Voltage Range: | 20V~750kV | Accuracy Class: | 0.5s |
Operating Temperature: | -25℃~70℃, -25℃- 70℃ | Dimensions: | 90x48x70mm |
Product Description
Specifications
1.Acuvim 100 series single phase electricity meter2.Monitor and Control Electric Switches
3.Over/Under Limit Alarm
Acuvim 100 Series Synopsis

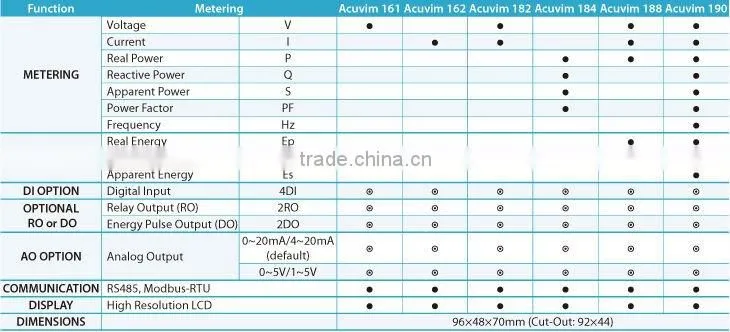

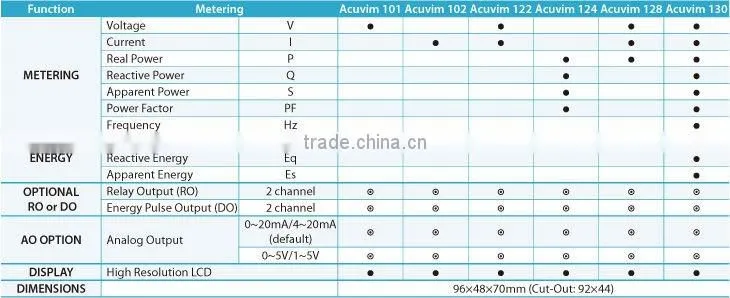

The Acuvim 100 series single phase electricity meter offer a wide range of functionality for single-phase electric parameter measurement, monitoring and control. Depending on the model, the Acuvim 100 series measures some or all of the following parameters:
- Voltage
- Current
- Real Power
- Reactive Power
- Apparent Power
- Power Factor
- Frequency
- Real Energy
- Reactive Energy
- Apparent Energy
The Acuvim 100 is also equipped with multiple I/O functions including Digital Input, Relay Output, Digital Output and Analog Output. Reliable Modbus RTU protocol communication is also available via an RS485 serial port. These additional functions make the Acuvim 100 series one of the most versatile single phase meters on the market.
Areas of Application
The Acuvim 100 series can be utilized as Remote Terminal Units (RTU) in power automation systems to provide data monitoring and acquisition. All of the measured data can be accessed via the serial communication option.
The true RMS measurement makes Acuvim 100 series ideal in poor power quality environment with high harmonic contents caused by non-linear load systems (such as transducers, electron ballasts, computers).
Features
- True RSM Parameter Measurement.
- Monitor and Control Electric Switches.
- Analog Output.
- Over/Under Limit Alarm.
- Non-volatile memory, Parameter Settings remain when power is off.
- Dimension 96×48, can be used for drawer cabinets.
- Direct input from Current Transformer and Potential Transformer, PT/CT ratio can be set.
- High Resolution black backlight LCD display.
- Compatible with SCADA and PLC systems.
- Easy Installation, Simple Wiring, Highly Cost Effective
Acuvim 100 Series single phase electricity meter
