Software Supporting! KB3030 Wireless Rs232 Transmitter GPRS Modem
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kingbird
Model Number:
KB3030
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M2M Mobile Gprs Modem With ON/OFF ValueNegotiableMOQ: 1 Set -
Power and Water Meter Automatic Reading Modem Data Transmitter and Receiver for KWH MetersNegotiableMOQ: 1 Unit
-
GPS GPRS IP Modem With Rs232 Rs485 for Position and MonitoringNegotiableMOQ: 1 Set
-
Software Supporting! KB3030 Serial Port GPRS Modem Module Rs232/rs485NegotiableMOQ: 1 Set
-
RS232 RS485 Data Tranmsmission Equipment,plug and PlayNegotiableMOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
Kingbird
Model Number
KB3030
Specifications
1 Wireless rs232 transmitter GPRS modem2 850/900/1800/1900M
3 Plug and play
4 Software supporting
5 DTU,Modem,SMS Modem
1 Overview
KB3030 GPRS modem is wireless data transmitting terminal of GPRS/SMS and embedded with High reliable ARM7 CPU. KB3030 have three work modes, user can use it as GPRS DTU, SMS Modem or Modem. Under SMS Modem, KB3030 can receive and send the MAX data 1024 bytes a time. Due to this product is designed for industry integrated, we adopt special designs in the temperature scope, shaking, EMC and interface multiform and so on, to keep it good stability in the severe atmosphere, ensure high quality for your device.
KB3030 GPRS DTU is used in electric power automatic system, industry monitoring, traffic management, atmosphere, pro-environment, pipe network monitoring, finance, securities departments and so on. It supports various networking ways. Consider the networking request from different application scope, achieve Virtual data private network in network structure. It is applicable to small and medium data transmitting of the Center to multi-points, multi-points scatter.
2 Product Features
| Build-in procotol | Support TCP, UDP Network protocol and Data channel backup. | |
| DDP, protocol, ensuring the data channel reliability | ||
| Kingbird AT+ protocol, satisfying the customized applications | ||
| Kingbird Data Center software(Server) support | ||
| Kingbird Appserver software support | ||
| Communication | Frequency: 850/900/1800/1900MHz, can be suit for every country all over the world(Including North Amercia and South America) | |
| Self-Research network platform supply with “Plug and Play” solution: Work with KB2000 and K3030. No need software and hardware development, can realize communication Change COM to COM to GPRS remote data transmission | ||
| Advanced and strict data communication protocol, with the function of correction and encryption. Never lose package when data transmission | ||
| IO switching value function: Two channels input, two channels IO output. Remote control and reading. Alarm status threshold, automatic alarm signal report function | ||
| Strong server software support, application for many years, strong function | ||
| Supply DTU work status interface, user can estimate DTU’s work status anytime | ||
| Strong communication backup function: Support switchover automatic between main server and backup server. | ||
| Support various data commission protocol (Normal, Single, and Transparent) | ||
| Support special APN, data center support fixed IP and DDNS | ||
| Support VPN / VPDN | ||
| Always online: automatic online, automatic redial and keep-alive while the line dropped | ||
| Self-define re-connecting interval and online report interval | ||
| Supports DNS and dynamic data service center IP address | ||
| Supports peer to peer, center to multi-point, multi-point to multi-point data transmission | ||
| Various working mode and Various networking ways | ||
| Industrial design | Independent research and developing, embedded 32 bit ARM7-CPU with real-time operating system | |
| Standard industrial products, EMC anti-jamming design, strong adaptiveness | ||
| Industrial class design and components to meet harsh environmental requirements | ||
| Wide range power input 5~24V | ||
| Working temperature range: -40°C-80°C, communication is not effected at -40°C | ||
| Operation | Remote sleep and awake: User use appointed cell phone number to dial or message can sleep or awake DTU, it is convenient for user to save a lot of GPRS Flow Fee when no need to use DTU | |
| Remote modify DTU parameters by network (data service center) | ||
| Supports remote Ring wake online | ||
| Online control interface with the connected device | ||
| Adjustable Heartbeat interval and timeout | ||
| Flexible data link modes for varied applications | ||
| Support hardware and software Watch Dog Timer | ||
3 Specifications
| GPRS Data | GPRS Module: M10 | |
| Supports GSM/GPRS | ||
| Supports GSM850MHz/EGSM900MHz/DCS1800MHz/PCS1900MHz | ||
| Interface | Antenna: 50Ω/SMA-K(Female) | |
| SIM: standard user card interface (3V) | ||
| Serial data interface | ||
| • Type: TTL/RS-232/RS-485 | ||
| • Baud rate: Standard products 300~115200bps (defult 9600bps, Adjustable) | ||
| • Connector:3.5mm pluggable terminal block | ||
| • Configuration interface: RS-232 Standard-115200bps | ||
| Power | Work Voltage: 5V~24V DC (7-60V can be custom made) | |
| Power Standby: < 25mA@5V | ||
| Power Communicating: < 125mA@5V | ||
| Power Launched peak: 1.5A@5V | ||
| Other | Mechanical: 82x59x25 mm | |
| Weight: 170g | ||
| Operation temperature: -40°C~+80°C | ||
| Store temperature: -45°C~+125°C | ||
| Relative humidity: 20%~95% non-condensing | ||

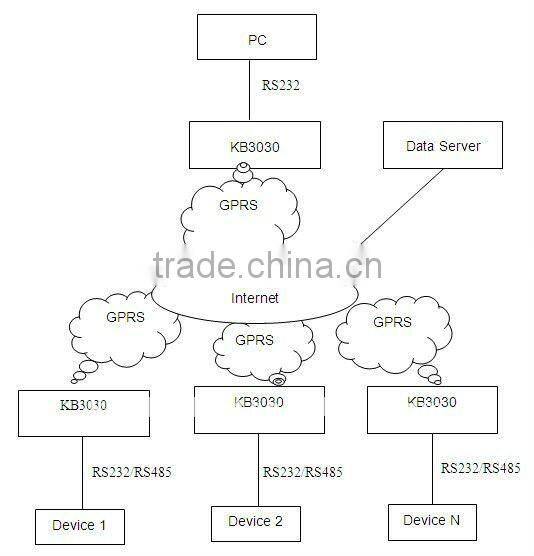

4 Plug and Play Application(COM to COM)
