CVT Transmission European Street Legal Electric Car:
1. 5KW AC system motor;
2. 72V 9pcs 8V Maintenance-Free Lead-Acid Battery;
3. CVT transmission
CVT Transmission European Street Legal Electric Car
--- Main Technical datas of the "CVT Transmission European Street Legal Electric Car":
| Technical Parameter of the Electric Four Wheel Mini Car (with EEC) | |||||
| Parameter | Quadricycle | Remarks | |||
| Body Structure | Frameless Body, fully colsed metal structure, 5 doors 4 seats | ||||
| Drive Type | Rear Engine Rear Drive (4x2 /2WD, RR) | ||||
| Basic Parameter | Overall Dimension | (L*W*H) | mm | 3090*1420*1480 | |
| Wheelbase | 2170 | ||||
| Wheel Track (front) | 1215 | ||||
| Wheel Track (rear) | 1235 | ||||
| Front Overhang | 464 | ||||
| Rear Overhang | 451 | ||||
| Trunk Volume | L | 60 | |||
| Passenger (capacity) | person | 4 | |||
| Weight | Curb Weight | kg | 820 | ||
| Loading Capacity | 300 | ||||
| Net Weight | 480 | ||||
| Trafficability | Approaching Angle | (°) | 30 | ||
| Descent Angle | 42 | ||||
| Steering Angle | ≤30 | ||||
| Obstacle Height | mm | ≤120 | |||
| Obstacle Width | ≤120 | ||||
| Min Turning Radius | 4440 | ||||
| Min Ground Clearance | 130 | ||||
| Transmission | CVT | ||||
| Body Type & Parameter | Power | 5kw 72v AC (with EEC) | Controller | G8035 | *range and speed will vary depending on temperature, terrain, driving style, road conditions, or vehicle payload |
| DC-DC | DC72-84V | ||||
| Motor | 5KW 72V AC | ||||
| Max Speed | ≥40km/h, Economic Model | ||||
| ≥60km/h, Sport Model | |||||
| Accelerating Ability | 0-30km/m≤10s | ||||
| Distance Per Charge | ≥220km | ||||
| Rated Power | 5.0KW | ||||
| Max Climbing Capacity | ≥20% | ||||
| Max Power | 12.5KW | ||||
| MAX TORQUE | 76N.m | ||||
| Battery | Type | Maintenance-Free Lead-Acid Battery | |||
| Brand | Chil Wee | ||||
| Capacity | 8V 150AH 9PCS | ||||
| Charge Time | 6-8 hours | ||||
| Charger | V/A | 72 / 25 | |||
| Steering | Rack & Pinion | ||||
| Brake System | Front / Rear Brake Mode | Disc / Drum | |||
| Operation Mode | Hydraulic Braking | ||||
| Parking Brake | Hand Mechanic, Force on Rear Tyre | ||||
| Brake Fluid | DOT4 | ||||
| Filling Volume | 500ml | ||||
| Suspension | Front Suppension | Single Axle Independent Suspension | |||
| Rear Suspension | Solid Axle Dependent Suspension | ||||
| Tyre | Aluminium Tyre | Meridian Vacuum Tyre | |||
| Shaft | Ball Cage Type Drive Shaft | ||||
| EEC certificate No.: e9*2002/24*0509*01 | |||||
--- Pictures of the "CVT Transmission European Street Legal Electric Car":

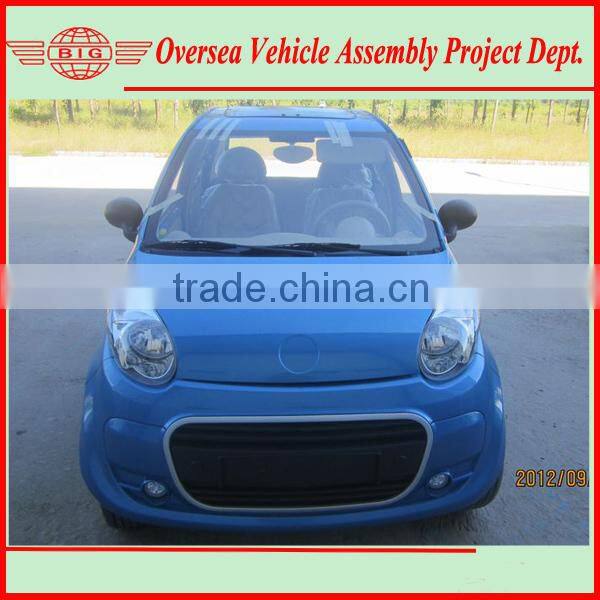

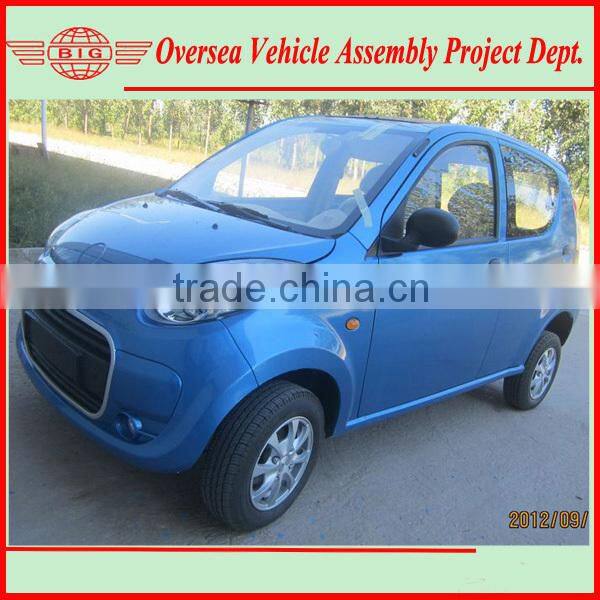

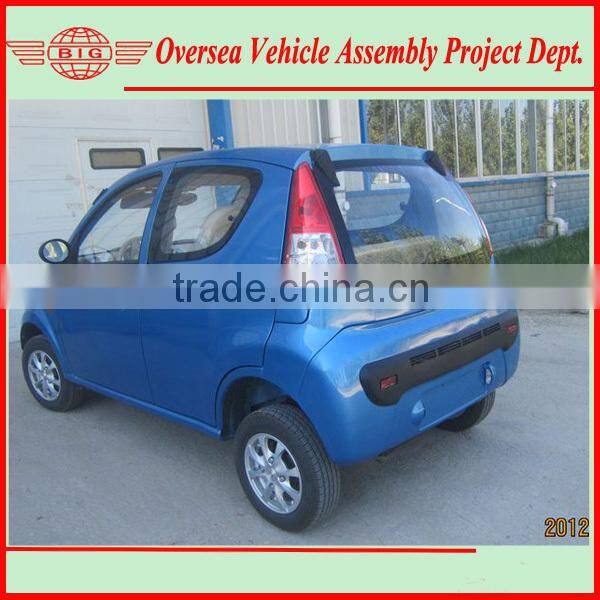

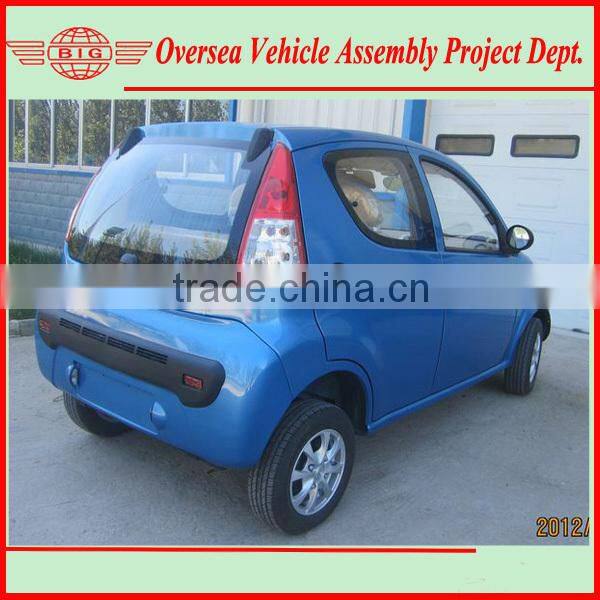

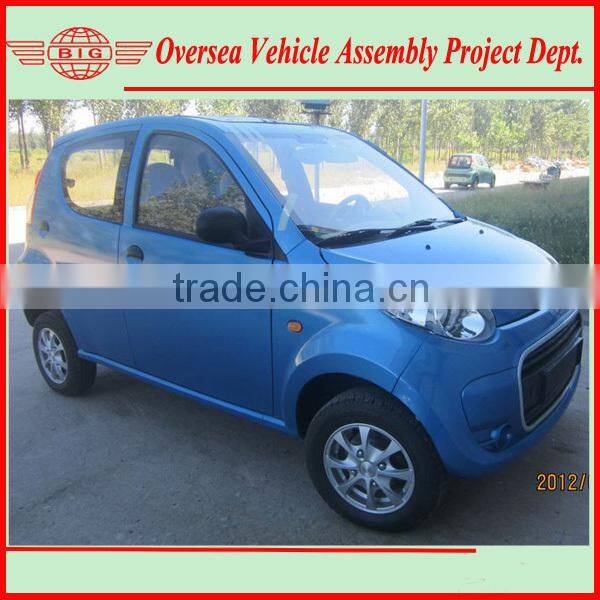

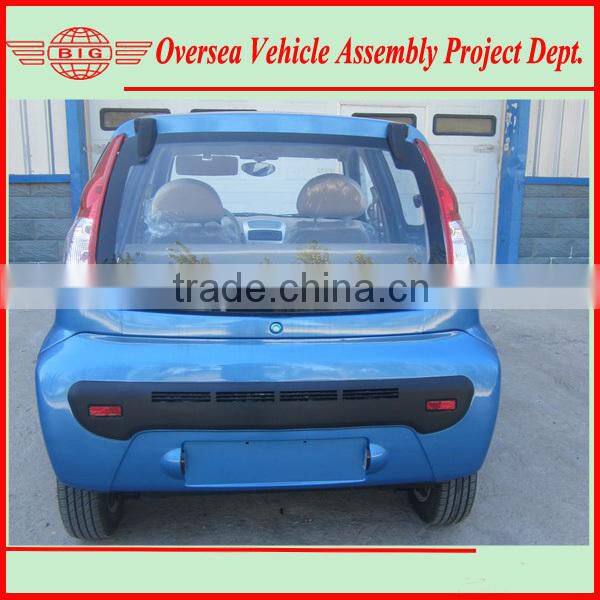

1) External out-look from different angls:

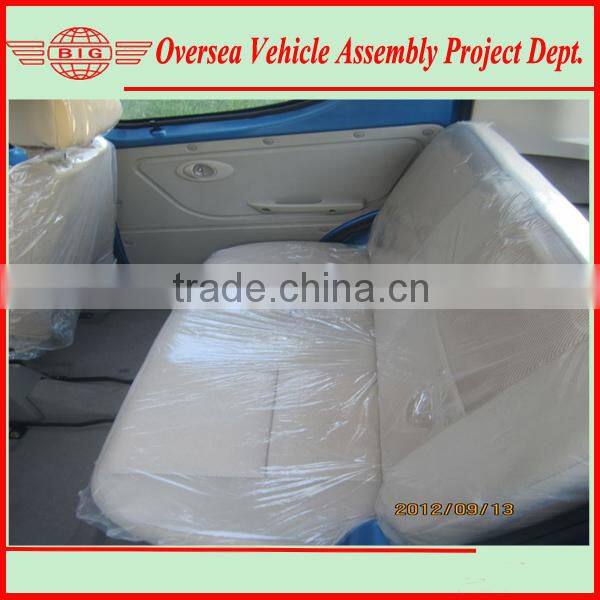

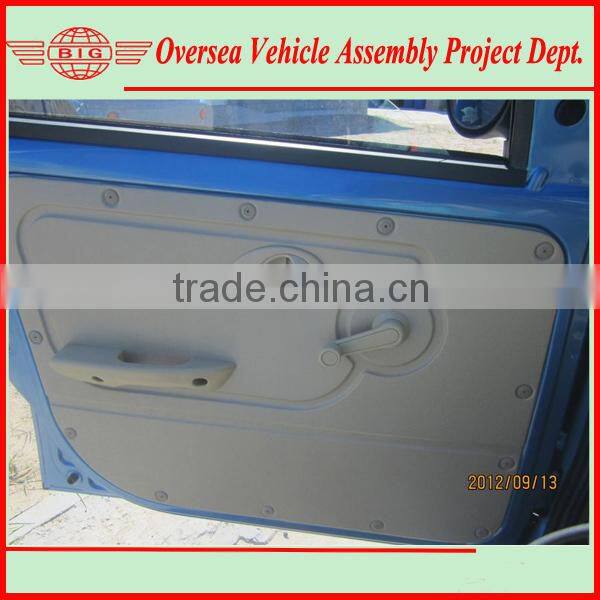

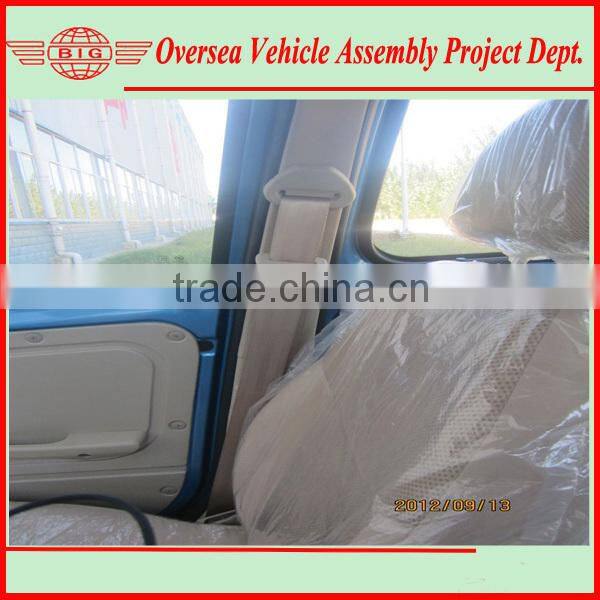

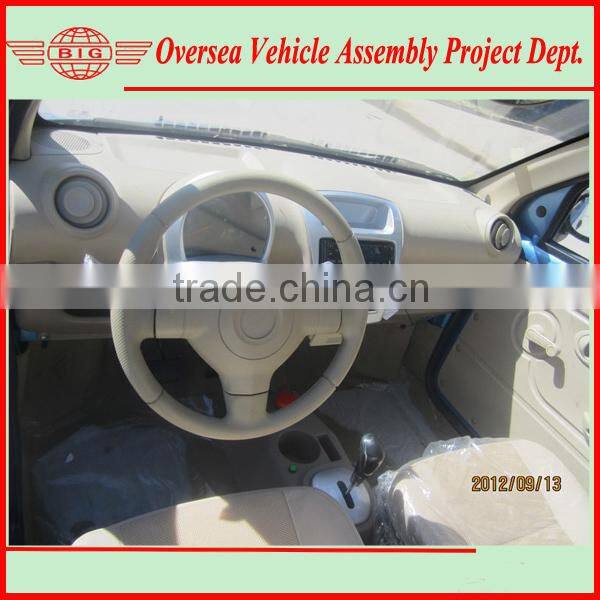

2) Interior Triming:
Packaging and shipping details of this CVT Transmission European Street Legal Electric Car, following is the details:

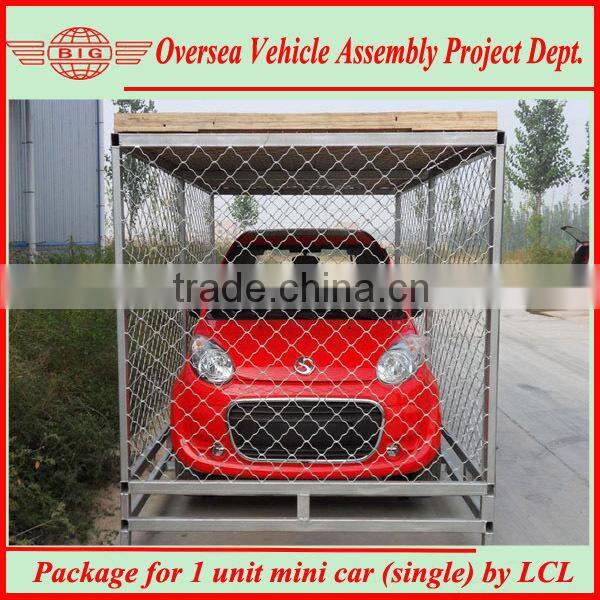

--- Package for 1 unit CVT Transmission European Street Legal Electric Car (by LCL):

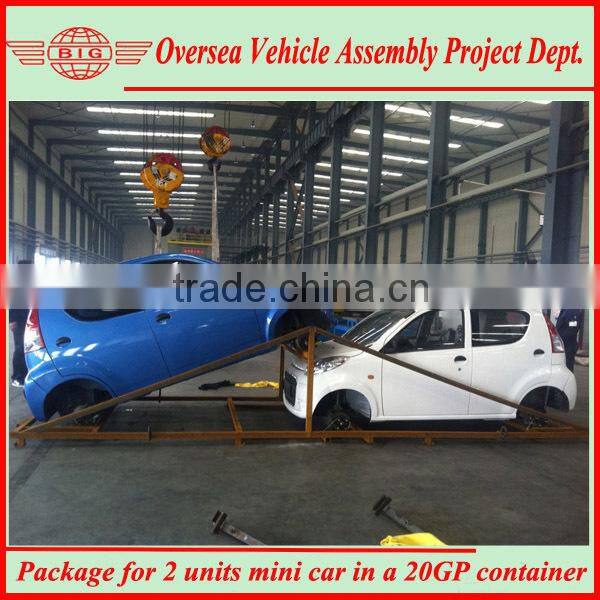

--- Package for 2 units CVT Transmission European Street Legal Electric Car in a 20GP container (by FCL):
--- Package for CVT Transmission European Street Legal Electric Car in a 40HQ container (by FCL):

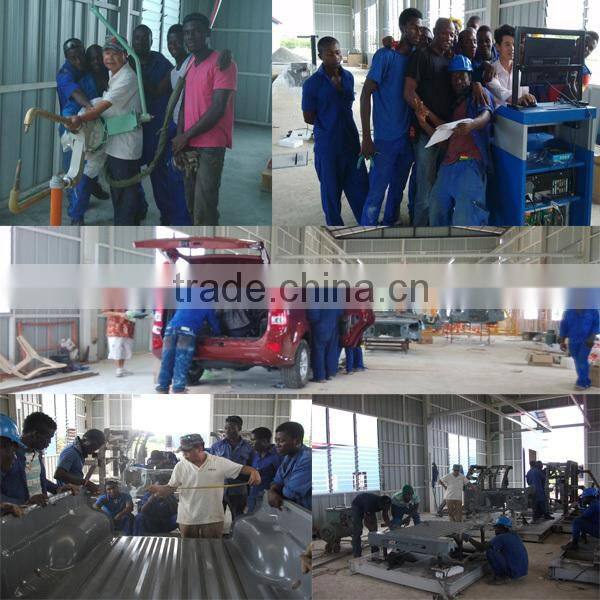

In the SKD/CKD vehicle assembly project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your place to train your workers and pass on knowledge to them, including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc.; in the meantime, our group will supply the complete sets of SKD/CKD kits vehicles for being re-assembled in your local place as well as the assembly line or production line equipments; and the equipment layout design of the factory, ... ...
Brief introduction of our "China Big Group Company":
Our company is focusing on the the auto assembly project throughout the world, so far, we have successfully set up several such assembly plants separately in Syria, Ghana, Seychelles, Vanuatu, etc., assembling, producing and manufacturing different types and models of vehicles, following is our main products and supplies:
1) Pickup Truck: Single & Double Cabin; Gasoline & Diesel; 4x2 & 4x4; LHD & RHD;
2) Off-Road SUV: 5-7 seats; Gasoline & Diesel; 4x2 & 4x4; LHD & RHD;
3) Passenger Van: 7-8 seats, 9-15 seats, Gasoline & Diesel; 4x2; LHD & RHD;
4) Mini Moko: Gasoline & Electric, 4x2 front wheel drive (gasoline) & rear wheel drive (electric), LHD & RHD;
5) Bus: Mini Bus, City Bus, and Long-Distance Bus;
6) Providing complete set of assembly equipments of the above mentioned automobiles.
1. What can we get from this vehicle assembly project?
1) Save customs duty;
2) Save other taxes (or tax exemption);
3) Save shipping cost;
4) Earn your own Intangible Assets, you can have your own auto brand ... ...
5) Creating job opportunities for your local people, develop your country's economy ... ...
2. What's the conditions of the partner we are looking for?
1) Investment Power Requirement: around 0.5 million USD for initial investment (for equipments only);
2) Land or Workshop Requirement: over 10000 square meters land including 3000-5000 square meter workshop at least;
3) Software Requirements: Good Automobile Sales Channel, Familiar with Automobile Industry and Its Business, or Ralated business line;
4) Hardware Requirements on the Import Tariff: this is the most important factor, the difference gap between auto spare part CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%, for example, import tariff on CBU is 35%, it must be 5% or zero on CKD.
5) Good relationship with the local government, can get good / preferential policies from the government, or may odtain government orders for the assembly project and the plant.
3. What about the after-sales service?
1) Found a professional bus "Repair & Maintenance" service company to ensure the After-Sales Service;
2) Spare parts supply;
3) Driving & repairing training guidance;
4) Technical advisory and training;
5) Market data feedback and disposing;
6) The most important - Technology Support.
To summarize, the above three (3) points are the reasons that why this vehicle assembly project can be successful in most of the countries, why we can succeed!!
Looking forward to your cooperation!
Contact us freely through the following:
Tel: 86-23-67635049-606/607/604
Fax: 86-23-67635036
