2015 super-luxury inter-city coach bus with 33+1 VIP seats:
1. made in 2015
2. luxury inner trim
3. 33+1 VIP seats
4. 2 LCD

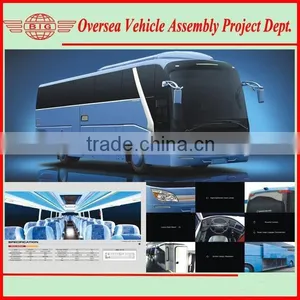

2015 super-luxury inter-city coach bus with 33+1 VIP seats (HENGTONG brand)
Specification / Description of the 2015 super-luxury inter-city coach bus with 33+1 VIP seats (HENGTONG brand)
Basic Parameter Datas:
| Parameters | Total length(mm) | 12000 | Engine | Engine model | Cummins L360 20 |
| Total width(mm) | 2550 | Engine supplier | Dongfeng Cummins engine Co., ltd. China | ||
| Total height(mm) | 3900 | Position/fuel type | Rear mounted/diesel | ||
| Internal height(mm) | 2020 | Engine type | Water cooling, 4-stroke, 6-cylinder, direct injection, turbocharger | ||
| Wheelbase(mm) | 6100 | Max. power(KW/rpm) | 264/2200 | ||
| Tread F/R(mm) | 2053/1830 | Max. torque(N.m/rpm) | 1480/1400 | ||
| Overhang F/R(mm) | 2450/3300 | Displacement(L) | 8.9 | ||
| Approach/departure angle(°) | 10/9 | Emission level | Euro 2 | ||
| Max. total weight(kg) | 18000 | Turing circle(m) | 24 | ||
| Curb weight(kg) | 13390 | Max. grade ability(%) | 30 | ||
| Seat capacity | 33+1 | Min. ground clearance(mm) | 190 | ||
| Max. speed(km/h) | 110 | Luggage capacity(m³) | 10 |
Other Configurations (which can be adjusted according to different clients):
| ITEM | EQUIPMENT FOR CLIENT | ||||
| Chassis | Clutch | Single plate dry clutchΦ430, hydraulic pneumatic operation assistance | |||
| Transmission | Imported ZF 6S1650B0, 6+1 speeds, operated by three soft shaft | ||||
| Rear axle | 13T domestic MAN rear axle, 22.5’’ disc brake, one stage fine grinding main reduction | ||||
| Front axle | 7.5T domestic MAN front axle, 22.5’’ disc brake | ||||
| Suspension | Front 9/rear 11 multi leaf spring suspension, bidirection telescopic shock absorber, horizontal stabilizing bar | ||||
| Steering | Integrated hydraulic steering system, steering wheel covered by leather, adjustable steering device(with combined switch, key start and decoration cover) | ||||
| Cooling | Side-sited, imported cooling fan device | ||||
| Brake | Dual-circuit pneumatic brake system correspondent to EC and ECE, energy-saving spring parking brake, air dryer | ||||
| ABS | WABCO ABS | ||||
| Retarder | Domestic retarder B5-21 eddy current retarder, installed at the output end of transmission system | ||||
| Tire | 12R22.5 tubeless radial tire, 22.5×9.00 spinning rim, one spare tire | ||||
| Starter | 24V | ||||
| Battery/generator | 6-Q-195AH 2pcs/28V/150A | ||||
| Fuel tank(L) | 400L | ||||
| Other | Euease Chassis | ||||
| Body Trimming | Body | Semi-loaded body structure, cold-bending steel framework, prestressing and stretch skin, fiber glass for front and rear cover higher floor and low passage | |||
| Internal trimming | Flax pattern lateral plate, roof plate: five-layer board with leather material, polyester foaming dashboard, internal aviation luggage rack(without wicket) | ||||
| Door & pump | Front single swing-out aluminum passenger door, lifting door for lateral luggage compartments and engine compartment | ||||
| Window | Laminated cemented front windshield, rear toughened windshield, lateral window-in-glass | ||||
| Seat | VIP seat, 33 passenger seats, 2-point seat belt with legrest, magazine net, cup holder, JS-04 damping driver seat with 3-point seat belt | ||||
| Flooring | Higher floor and low passage, stained floor leather | ||||
| Air conditioner | Non-independent domestic DENSO air conditioner system 32000kcal/h | ||||
| Heating system | Engine heat defrost | ||||
| Audio & video | DVD player, 2 pcs 17’’ LCD( installed behind driver and the middle of passage) | ||||
| Rearview | Manual luxury rearview mirror | ||||
| Lamp | Front combined headlamp, rear combined tail lamp, LED independent ceiling lamp 4 pcs, door lamp | ||||
| Wiper | Asynchronous panorama wipers | ||||
| Service facilities | 2 pcs 2kg extinguisher inside, 3 automatic extinguishers in engine compartment, warning safety hammer 6 pcs, DS/920 emergency hatches 2 pcs, DVR with GPS, aluminum frame toolbox, megaphone | ||||
| Painting | Domestic metallic painting | ||||
Visual Effect on the detailed pictures:

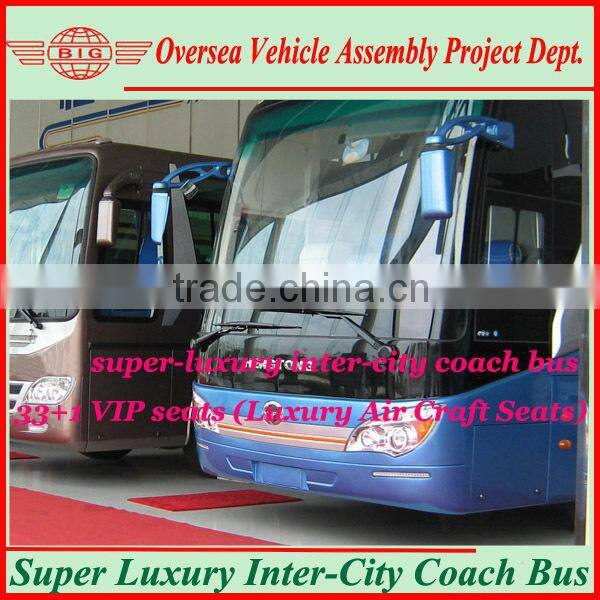

Luxury Coach Bus Head
Luxury Coach Bus Diesel Engine Rear Mounted

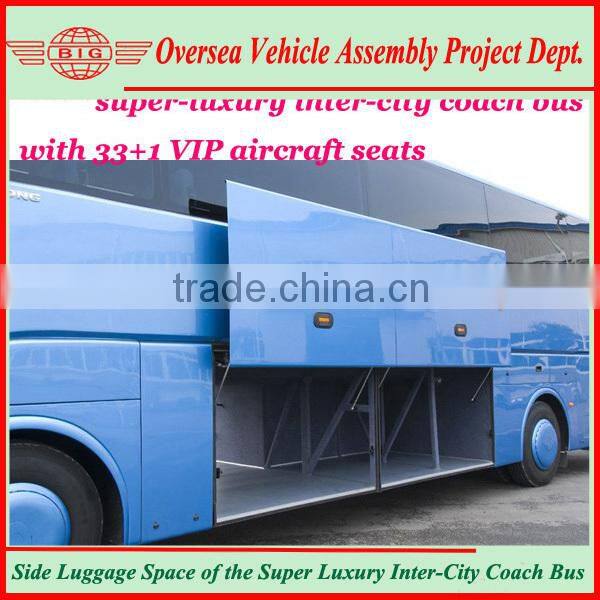

Spacious Lateral Luggage Carrier
Luxury Inner Trimming of this Luxury Coach Bus

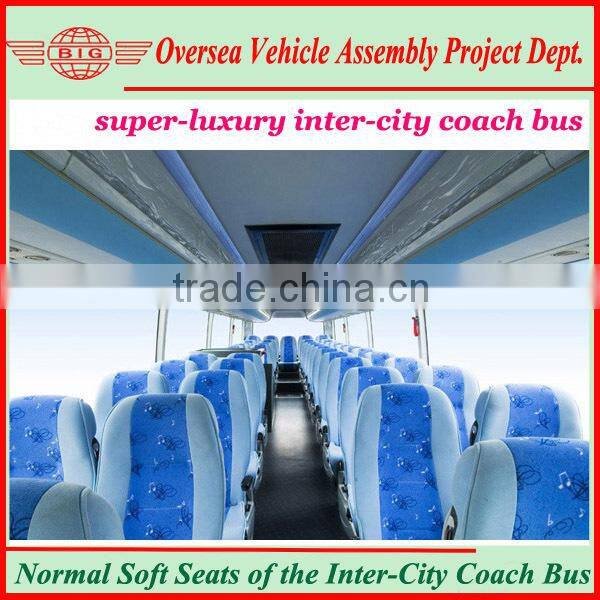

Luxury Coach Bus Soft Seats (standard)

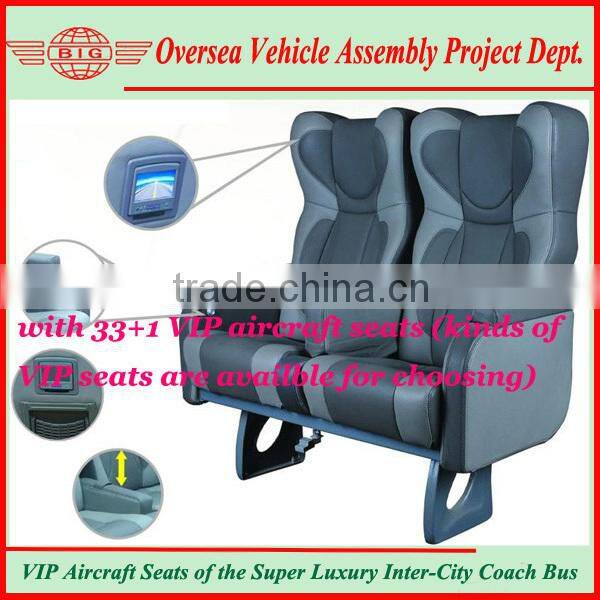

Super-Luxury Aircraft VIP seats availabe for customization
&
Brief introduction of "Big Company":
1. Our company is focusing on the the vehicle assembling project throughout the world, so far, we have successfully set up several such auto assembling plants in Syria, Ghana, Seychelles, Vanuatu for pickup, SUV, bus, moke assembling. Anyone who is interested, contact us freely, looking forward to your cooperation.
2. Our main products:
1) Pickup (Single & Double Cabin; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);
2) SUV (off-road vehicle: 5 / 7 seats; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);
3) Van (7-8 seats, 9-15 seats, Gasoline & Diesel Engine; 4x2 drive; LHD & RHD);
4) Mini Moke (Gasoline & Electric, 4x2 drive, LHD & RHD);
5) Bus (Mini Bus, City Bus, and Long-Distance Bus, Luxury Coach Bus)
6) Providing the assembling equipments of the above mentioned automobiles (pickup, SUV, Van, Moke and Bus).
FYI, our company can also help you with the bus assembling in your local place based on a good tax policies. The most important is that we have successfully engaged in this field for more than 6 years, starting from Syrian assembling plant, now going smoothly in Ghana, Nigeria, and Jordan.
Looking forward to your cooperation, JOIN US !!
Contact us freely through the following:
Tel: 86-23-67635049-606/607/604
Fax: 86-23-67635036
