Manufactory high configuration modern plush carding machine for sale
1.Working Width: 1020mm,1850mm,2000mm,2300mm,2500mm.
2.Cylinder: Φ 850mm ,Φ 1020mm,Φ 1230mm.
3.Doffer: Φ 492mm, Φ 535mm.
4.Mesh output speed: 20 - 45m/min.
5.The machine with single cylinder high-speed coming and double-doffer output, is suitable for carding 1.5D-20DX38-65mm artificial fiber.
6.The cotton feeding roller is controlled by frequency conversion and the machine is equipped with anti-metal protection device.
| Sliver count | 3.5~6.5 gsm | ||||||||
| Output | 30-50 kg/h | ||||||||
| Working width | 1000,1550,1850,2050,2500mm | ||||||||
| Attached carding parts | carding plates and cover plates(3 at front and 2 at back) | ||||||||
| Licker-in diameter | 250mm | ||||||||
| Cylinder diameter | 1289mm | ||||||||
| Doffer diameter | 707mm | ||||||||
| Nmbers of flats | 40 working /106 totally | ||||||||
| Air volume | 1300CBM/H | ||||||||
| Air pleasure | -500pa~-600pa | ||||||||
1.This machine is able to carding wool, cashmere, and cotton in the same machine by adopting different carding wires. The final output could be wool net, or wool strips, or both according to your specific requirement.
2.Cylinder transmission using centrifugal friction clutch and v-belt for driving ,with reliable structure ,smooth start ,the motor sit on the rack ,no need of anchor bolts.
3.Randolph transmission using electromagnetic clutch, electromagnetic switch outside the shield , operating easier safer and more effective then before.
4.There are the suction equipments, suck off the fiber bundle effectively,and transported to next process by blower.
5.Each transmission is separated, easily adjusted, nimble control, easy operation and convenient maintenance.

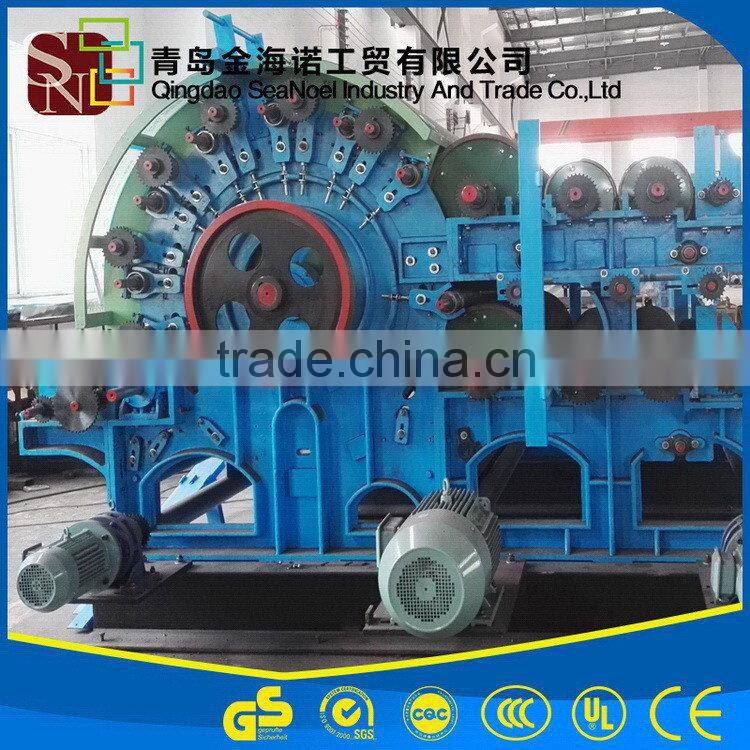

Pictures of modern plush carding machine for sale:
1.We company is located in the Qingdao which is a coastal city.From here one can travel to any place by sea, by air or by land.
2.Our factory was founded in 2005,we have more than ten years production experience.
3.We have a five persons design team and the advanced production line,CNC bending technology,eight conscientious international trade salesman and several skilled factory workers.
4.Also five engineers can be sent overseas,they can direct the installation and operation of the equipment, and train operators for customer.
1.You can send your raw material to us,we will arrange a test and take a video for your reference.
2.If you also wanna purchase some other related products:fiber,cotton,toy skin,air compressor or electrical accessories.So,no matter what requirements,just let us know,we will spare no effort.
3We provide 24 hours service everyday,whenever you need,just contact us.
4.You can contact us via Email,Tel,Mobile,Skype,Whatsapp:+86 15653251598
will get feedback within 8 hours.
5.We provide production line scheme design,appearance design,packaging design and label design service.
6.Engineers available to overseas.
modern plush carding machine for sale
