Home > Products > Inkjet printhead > Xaar 128/80-W Printhead (Purple)

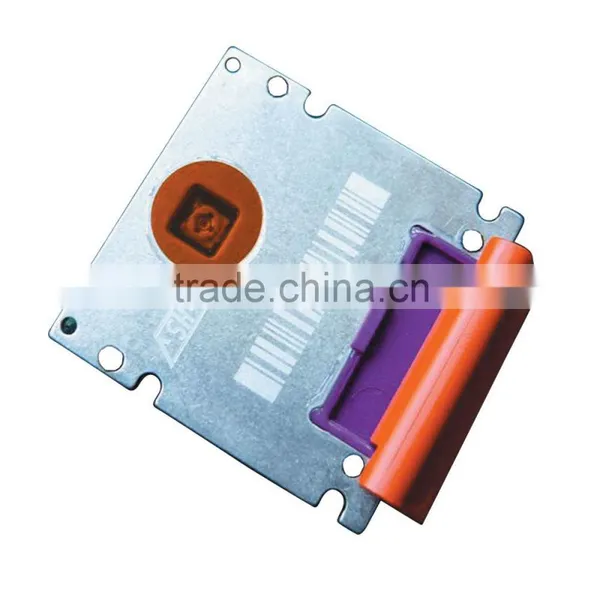

Xaar 128/80-W Printhead (Purple)
- 10000 Piece / Pieces per Month
- Tianjin/Shanghai/Guangzhou/Beijing
- T/T Credit Card
Product Details
Place of Origin: | Beijing, China | Brand Name: | Chinasigns | Model Number: | PRH-XAAR-002 |
Type: | Print Head | Use: | Other, Xaar 128/80-W Printhead | Printing Type: | Inkjet Printer |
Product Description
Xaar 128/80-W printhead (Purple)
Remarks: Original
DPI: 360
Description:
For years the Xaar 128 set the industry standard by offering a consistent, simple and highly flexible inkjet solution for a variety of applications across the coding & marking and wide-format graphics industries. The Xaar 128 printhead is available in two drop volume variants (40 pL and 80 pL) and is compatible with a range of UV, solvent and oil-based inks.
Light and powerful
Compact footprint, light carriage and weighing only 15.5 g, it is ideal for applications where weight is a key design requirement
• Up to 8.3 kHz firing frequency
• Available in two drop-size variants (40 pL and 80 pL)
• Robust and cost effective solution
• 185 dpi (native) printhead resolution.
Easy to integrate
• Adaptable across multiple digital print markets
• Compatible with an extensive range of oil-based, solvent-based and UV inks
• Simple electronic interface promoting quick and easy integration
• Wide operating latitude for lower cost inks.
large format printer, Infiniti; Liyu; Limitless; DGI Spacejet 3250P, NUR Fresco III, Allsign E-Type, Zhongye ZY-7208 / ZY-7212 / ZY-7212+ / ZY-7216 / ZY-7216+ / ZY-7224 / ZY-7224+, Ampla Digital Targa Plus
Xaar 128 40 | Xaar 128 80 | |
Active nozzles | 128 | 128 |
Print swathe width | 17.4 mm | 17.4 mm |
Nozzle pitch | 137.3 μm | 137.3 μm |
Drop velocity* | 6 m/s | 5 m/s |
Nozzle density | 185 npi | 185 npi |
Printhead weight (dry) | 15.5 g | 15.5 g |
Fluid type | Solvent, UV, Oil-based | Solvent, UV, Oil-based |
Drop volume* | 40 pL | 80 pL |
Typical firing frequency* | 8.3 kHz | 4.25-5.5 kHz |
Dimensions (WxDxH) | 38x12x41 mm | 38x12x41 mm |
Application:
The narrow print swathe, ink compatibility and ease of use of the Xaar 128 printhead mean it is extensively utilised for a diverse range of applications including:
• Coding & marking
• Wide-format graphics
• Indoor signage
• Outdoor graphics.
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of printer parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send to
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
