microphone accessories
Specification:
1.Model: QY-9767
2.Dimension: dia.9.7mm x 6.7mmT
3.Sensitivity: -28dB~-46dB 0dB=1V/Pa,1000Hz
4.Frequency response: 20~20,000Hz
5.Directivity: Omnidirectional
6.Impedance: ≤2.2KΩ
7.Current Consumption: Maximum 500μA
8.Operation Voltage: 3.0V
9.Max.Operation Voltage: 10V
10.S/N Ration:More than 60dB
We can produce according to your design and require.

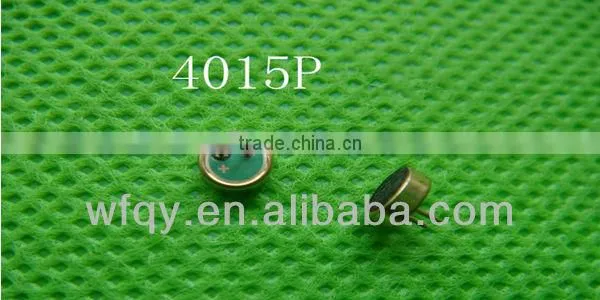

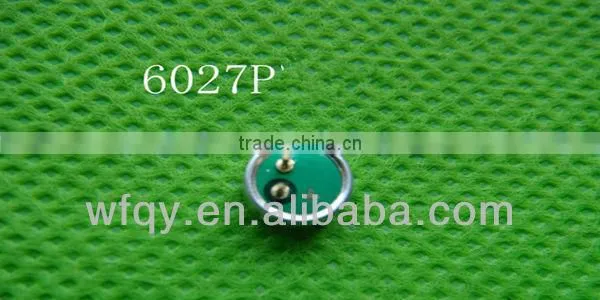

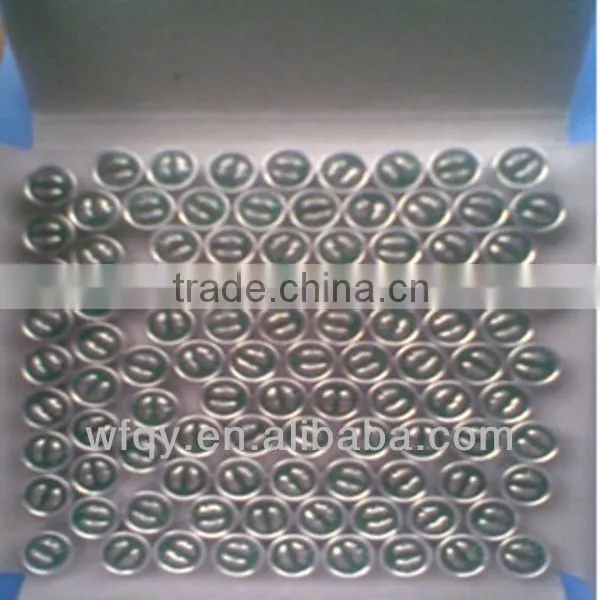

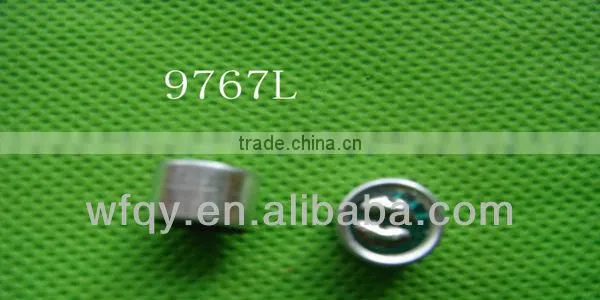

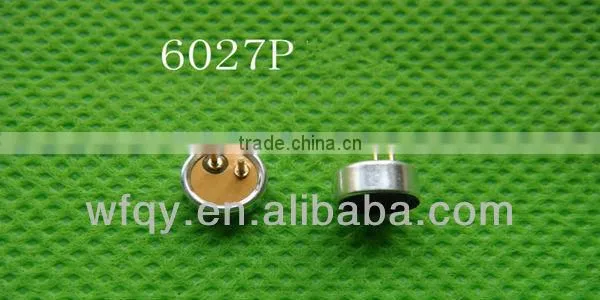

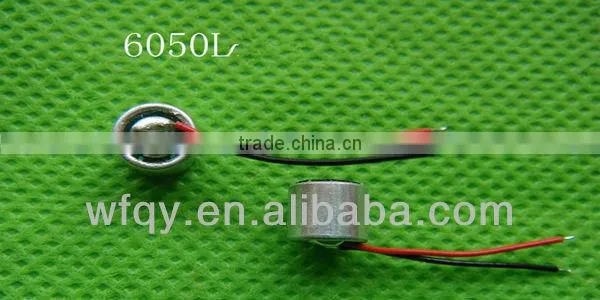

Product picture:
How to place an order?
(1). Inquiry -----Please tell us the Directivity ; Size; Parameter .
Directivity : Omnidirectional
Unidirectional
Noise cancelling
Size:
Diameter:Φ 9.7; Φ 9.4; Φ 6.0; Φ 4.5 and so on.
Height:6.7mm;5.2mm;5.0mm;4.5mm;3.5mm;2.7mm;2.0mm and so on.
Parameter :
Please tell us the detailed parameter and conversion standard (0dB=1v/Pa,1Khz ) or (0dB=1v/0.1Pa,1Khz ).
(2). There is an example from our customer :
(3). About sample :
(1) If you need ,we can send you free samples.
(2) After test pass ,you can consider again whether to cooperation with us.
(4).Delivery time:
Sample: within 2working days.
Orders: within 7working days.
