High Sensitivity Electret Condenser Microphone ---Qinyi

High Sensitivity Electret Condenser Microphone ---Qinyi thumbnail-1
High Sensitivity Electret Condenser Microphone ---Qinyi photo-1
US$ 0.01 - 0.24 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Qinyi
Model Number:
ECM
Contact Supplier Request Quote Chat Now
Weifang Qinyi Electron Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Weifang Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Qinyi
Model Number ECM
Type Microphone

High sensitivity electret condenser microphone

1.Main parameter :



No.

Item

Symbol

Unit

Specification

Condition

1

Directivity









Omi ,Uni ,Noise





2

Sensitivity

S

dB

-28-46DB

f=1KHz,

0dB=1V/Pa



3

Standard operating voltage

Vs

V

1.5-3



4

Output impedance

Zout

KΩ

≤2.2

f=1KHz, 1Pa

5

Max operating voltage





V .

10





6

Sensitivity reduction

-Vs

dB

-3

f=1KHz, 1Pa

vs=3VDC to 1.0VDC1.5V

T

Frequency

f

Hz

20 ~ 20,000





8

Max. current consumption

IDSS

mA

≤0.5



9

Signal to noise ration

S/N

dBA

≥60

f=1KHz, P in=1Pa

10

Operation temp.





°C

-10 ~+70





11

Storage temp.





°C

-20 ~+60





12

Material





AL



13

Terminal









Terminal

See appearance drawing



When you place an order ,please tell me the main parameter you need .

2.Directivity :

a:   Omnidirectional electret condenser microphone .

b.   Unidirectional electret condenser microphone.

c.   Noise cancelling microphone .

3 .Sensitivity :

0dB =1v/Pa or 0dB=1V/0.1Pa , Please make sure the parameters you need.

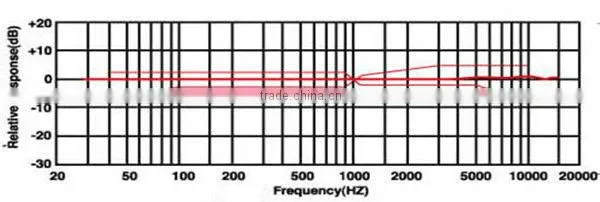

4.Frequency :

a.     Omnidirectional microphone :

High sensitivity electret condenser microphone ---Qinyi

b.   Unidirectional microphone:

High sensitivity electret condenser microphone ---Qinyi
c.    Noise cancelling microphone :

High sensitivity electret condenser microphone ---Qinyi

This is Conventional drawings, please tell me the drawing of frequency you need .

4.Other electret condenser microphone :

High sensitivity electret condenser microphone ---Qinyi
