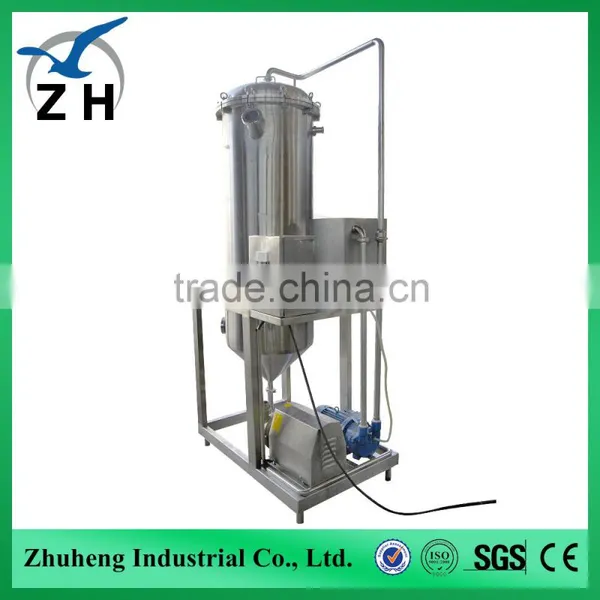

High Quality stainless steel Degassing Unit
Vacuum degassing unit composed of vacuum degasser, pump and discharge pump, is essential equipment in the dairy, fruit juice production line. This euipment can remove the air inner of liquid material through vacuum suction, inhibits oxidation and browning, flavor ingredients to keep the original materials and improve product appearance and quality;
removal of air attached to suspended particles to prevent particles float and reduce bubbles during filling and heat sterilization and corrosion on the vessel wall.
Structure and principle:
All the parts of this equipment contact with juice are made of high-quality stainless steel and sanitary rubber gaskets. The primarily parts consist barrel, top cover, check valve, nozzle, control valves, lights, sight glass, etc..When working, First start vacuum pump ( as vacuum pump manual ), removing the air inside, while the material from the inlet into the barrel, materials rose to a certain position, the control valve automatically control material. At same time, you can observe and control the speed of the feed from the sight glass. When the vacuum degree in the barrel reach the process requirements, we can drawn materials from the outlet , we keep the balance of the vacuum degree and access to materials, it can continue to produce.
Specification |
Production capacity(L/h) |
Vacuum(MPa) |
Power (kw) |
Dimensions(mm) |
Φ400 x 2000 |
600-1000 |
≥-0.08 |
2.2 |
800 x 600 x 2000 |
Φ500 x 2100 |
1200-1500 |
≥-0.08 |
2.4 |
900 x 700 x 2100 |
Φ600 x 2300 |
2000-2200 |
≥-0.08 |
4.15 |
1000 x 800 x 2300 |
Φ700 x 2500 |
2500-3000 |
≥-0.08 |
4.15 |
1100 x 900 x 2500 |
Φ800 x 2800 |
4000-5000 |
≥-0.08 |
6.75 |
1200x1000 x 2800 |
