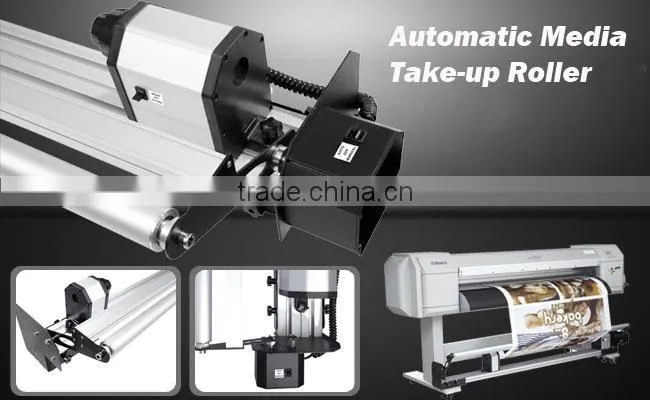

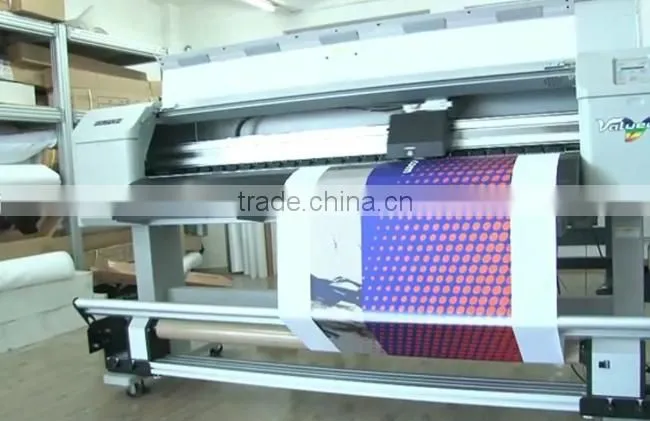

74" Automatic Media Take Up Reel with Tension System for Ro land FJ740/SJ740/FH740/ Textile Printer , take up roller
Description:
Automated take-up system equipped with inductive tension and double-track structure . Automatic rewinding,unattended production and reduce cost. With tension control take-up system not only extends life span of motors, but also expands its application range for outdoor and indoor printing material, fabric and fiber material.
| Model | SZQ-JX-T2 |
| Working Width | 1800mm |
| Voltage | 12V |
| Motor Power | 24W |
| Maximum Diameter Of Hosting Media | Ø260mm |
| Bearing Weight | 40kg |
| Packing Size | 2650x410x440mm |
| Gross Weight | 35kg |
Features:
• Automated take-up system
• Inductive tension system
• Novel double-track structure
• Automatic seitch: Automatic rolling according to induction of the tension bar.
• Regarding the medium core, 2 inches(Φ48mm-Φ53mm)and 3inches(Φ75mm-Φ80mm) are available.
• Specialized universal linking slab, apply to any printers.
Advantage:
1.Automatic rewinding, unattended production
2.Tension control system could expands its application range for outdoor and indoor printing material,fabric with no elasticity and fiber material
3.Bear the weight of 40-50KG
4.Fixed directly without drilling holes in the machine
5.Extend lifespan of motors
Benefit:
1.Automatic system without workman that help you save cost, save space
2.More widely applicable range, Aqueous & Eco solvent & Sublimation printing materials.
There is no trouble of taking up no elasticity fabric materials such as format canvas and cloth banners.
To be used with:
Roland FJ740/SJ740/FH740 and other 74 inch wide format printers.

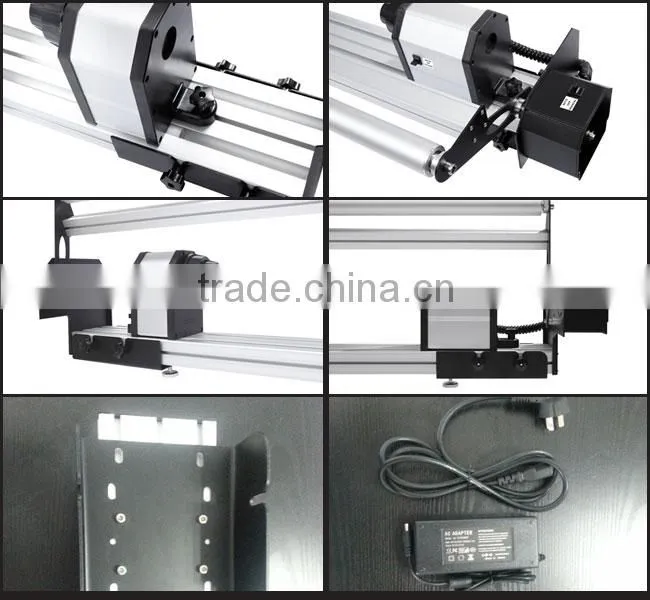

Details:

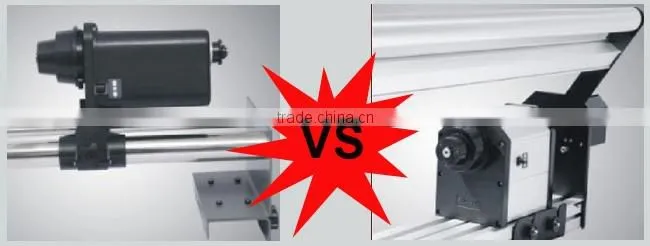

| Ordinary take-up system works based on passive padiator,And motor life is always short. | Our take-up system works rolls on tension induction and ensures neat take-up. Motor life becomes longer. |
| Ordinary take-up system bears a maximum weight of 30 kg for rolling materials. |
Our take-up system can bear a maximum weight of 40-50 kg. |

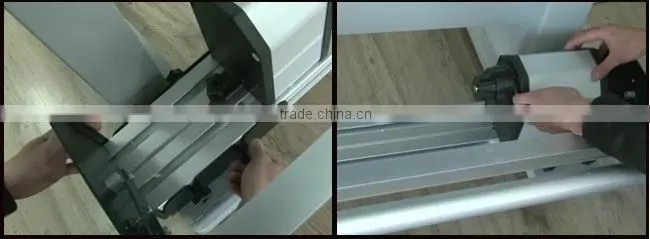

| 1.Open box, and separate the connecting plate and the take-up system. |
2. Mount the connecting plate. |

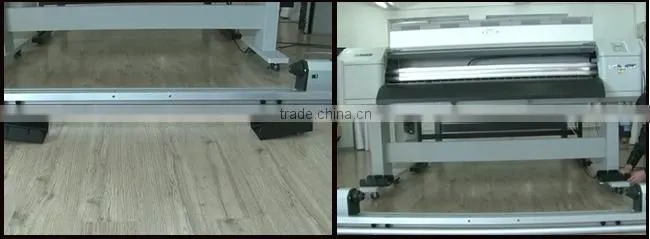

3. Loosen tension bar and set screws. 4. Put the take-up system on the connecting platete.

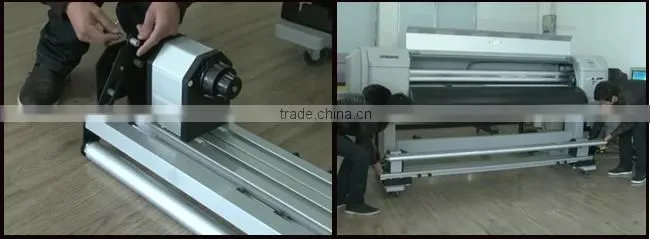

| 5. Tighten the screws to settle take-up system. | 6. Adjust the position of dynamic roll axis on take-up system and fasten the axis |

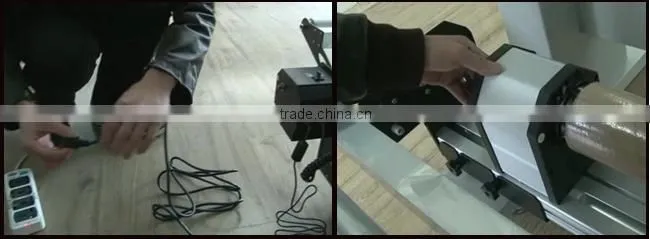

| 7. Connect the power transformer (12V) to power supply. | 8. Load the paper roll. |

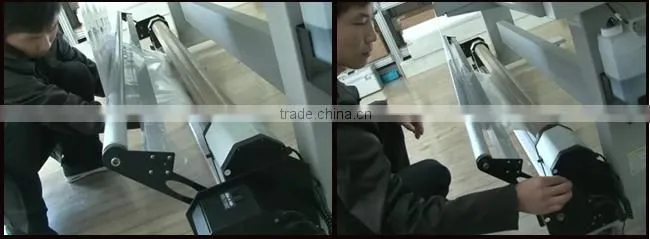

| 9. Attach take-up system to the printed material. | 10. Adjust the tension and the switch. |
Application:
Apply to model ROLAND, EPS ON, MUTOH, MIMAKI inkjet printers and other Sino-printers
