Description:
Materials that can be cut: Non-metal materials, such as bamboo, plexiglass, acrylic, rubber, paper, and so on. With the improved linear guide, this machine has a perfectly cutting or engraving precision.
Feature:
• Professional design for client in different industry, reasonable structure, pleased appearance & practical.
• High strength & high stable mechanical structure composed of high precision mould, machine moved stable, in high speed & precision, back - open design convenient for material process & no limit for material length.
• Adopt flight path design, special structure, little path deviation, high performance & easy adjustment.
• Update USB offline control system & large memory capacity to improve work speed & efficiency.
Advantage:
• Avoid polishing, processing high speed, and high precision;
• Glass viewing windows creating a safe enclosure for laser processing;

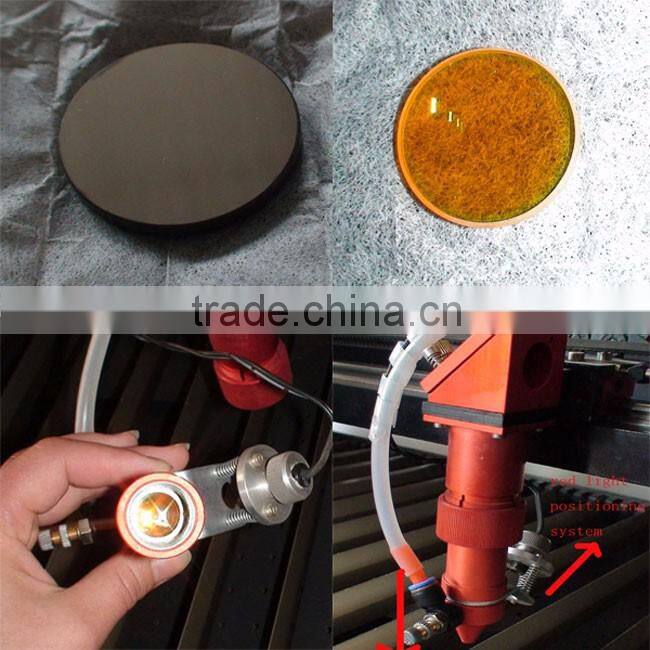

• Original Singapore imported lens can greatly improve working efficiency and reduce cost;
• Exhausting, absorbing and assistant blowing systems extend the life of the laser tube;
• Aluminum strip shape platform can bear heavier materials, such as acrylic, wood and much more non - metal materials;
• Large internal memory capacity improves the working speed with greater efficiency;
• With a fine cutting effect and price advantage.
Used for:
• Advertising Industry: Acrylic, double color board & other advertising material engraving & cutting.
• Leather Industry: Engraving & through - carving on leather & cloth.
• Craft Industry: Engrave and cut on paper, wooden material, bamboo, leather, seashell & ivory material.
• Model Industry: Cutting for architectural model, Aviation and navigation model, wooden toy.
• Packaging Industry: Engrave & cut on rubber, composite board & Laser die board.
• Engrave & cut in decoration industry & electronic appliance industry materials.
Benefit:
• 51" x 35" (1300mm x 900mm) working area
• Up to 48'' IPS (1200mm / s) high working speed
• Pass - through front and rear doors to accommodate long work pieces
• Equipped with high quality Water Chiller CW5000 , which can prolong the lifespan of the laser tube and ensures a better engraving effect
Details:
Maximum Working Area: 51" x 35" (1300mm x 900mm)
Maximum Cutting Speed: 24" (600mm) / s
Maximum Engraving Speed: 48" (1200mm) / s
Laser Power: Reci S4 CO2 glass laser tube 100W-130W (Normal lifespan: about 10000 working hours)
Laser Type: Sealed - off Glass co2 laser, Wavelength: 10.6um
Max. Cutting Thickness (Acrylic): ≤ 1" (25mm)
Location Precision: < 0.01mm
power supply: AC 110 or 220V ± 10%, 50Hz or 60Hz

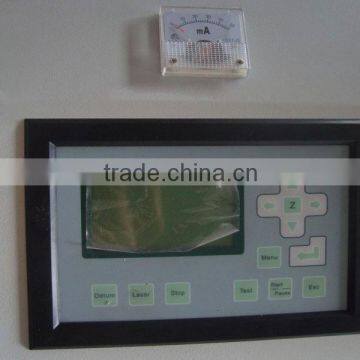

Control System and Driver: High Speed DSP control system, stepper motor, High subdivision driver
Supported Format and Software: PLT, DST, DXF, BMP, AI, Support AutoCAD, Corel Draw output directly
| Model | LCM-RJ-1390-100W |
Maximum Cutting Area |
51" x 35" (1300mm x 900mm) |
Laser Power |
Reci S4 CO2 glass laser tube 100W-130W (Normal lifespan: about 10000 working hours) |
Cutting Speed |
24" (600mm) / s (Adjustable) |
Maximum Cutting Thickness |
1" (25mm) (Acrylic) |
Resolution Ratio |
0.0064mm |
Reposition Precision |
0.0004'' (0.01mm) |
Power |
1250W |
Cooling Method |
Water cooling and protection system |
Supported Image Formats |
PLT, DST, DXF, BMP, AI, Support AutoCAD, Corel Draw output directly |
Cutting Software |
Leetro engraving software |
Interface |
USB |
Voltage |
AC 110V - 240V, 50Hz or 60Hz |
| Machine Dimension | 72" x 50" x 44" (1820mm x 1280mm x 1120mm) |
| Machine Weight | 726lb (330kg) |
| Package | Wooden box |
| Packing Size | 87" x 67" x 45" (2200mm x 1700mm x 1150mm) |
| Gross Weight | 902lb (410kg) |
