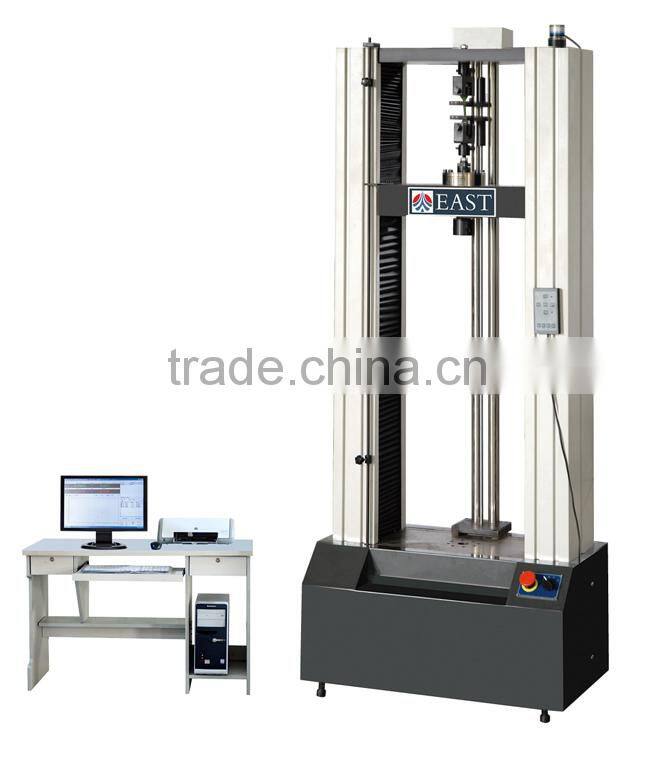

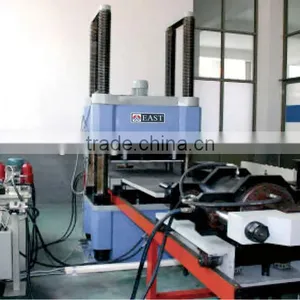

YJW-10000 Computer controlled electro-hydraulic servo compression and shear testing machine
Function and characteristics:
1.YJW compression and shear testing machine is especially used to test the mechanical performance of elastomeric pad bearings for highway bridges. It can carry out compressive elasticity modulus test, shear elasticity modulus test, allowable shearing angle test, ultimate compression deformation test, radial deformation test, etc.
2.The main body of the compression and shear testing machine adopts four-column structure, which is of high rigidity and able to undertake deformation tests. The microcomputer controls the automatic continuous smooth loading and load holding. It also automatically complete data collection, data storage, curve drawing, report printing, etc.
Specifications
Model |
YJW-5000 |
YJW-8000 |
YJW-10000 |
Max. axial testing force(KN) |
5000 |
8000 |
10000 |
Max. test shearing force(KN) |
1000 |
1600 |
2000 |
Max. Testing force of corner (KN) |
500 |
800 |
1000 |
Testing force precision |
±1% |
||
Testing force measurement range |
1%~100%FS |
||
Max. space of compression test |
1000mm |
1200mm |
1200mm |
Column spacing(mm) |
1000×650 |
1080×650 |
1200×800 |
Pressing plate size(mm) |
900×600×120 |
900×600×150 |
1000×1000×200 |
Axial piston strike(mm) |
80 |
80 |
80 |
Shearing piston stroke(mm) |
150 |
150 |
150 |
Axial/radial deformation measurement range |
0~10mm( Resolution 0.001mm) |
||
Power (kw) |
13 |
20 |
22 |
Voltage |
220V and 380V, according to national standard voltage configuration |
||
Weight (kg) |
8500 |
12000 |
16000 |
