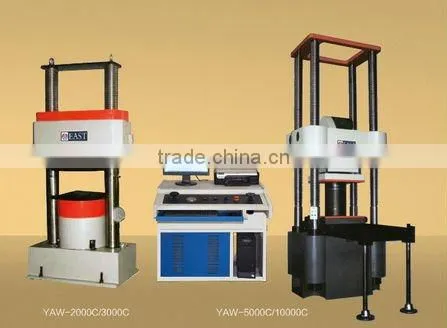

YAW-1000C Computer controlled compression testing machine
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
| Place of Origin: | Shandong, China | Brand Name: | East | Model Number: | YAW-1000C |
| Power: | Hydraulic | Usage: | Compression Testing Machine |
Product Description
YAW-1000C Computer-control compression testing machine
1. Purpose and function
This series of products is used in the compression test of building material, architectural component and metal component mainly,The calibrating of compression test that may be also used in jack. It is composed of host machine, oil box, controller and computer control system, with automatic constant speed loading, force value of digital display, data automatic processing, printing and output loading curve and the testing report, stage data storage and inquiries and other functions. It is the ideal testing equipment for universities, institutes of scientific research, construction quality inspection stations, large industrial enterprises.
• 2.Two-column or Four- Column structure, activities beam can be electrically adjusted testing space. It is equipped with large pressing plate and large compressed space, and also be produced according to user needs.
•3.Lower pressing plate of large size compression testing machine is designed as pushcart type structure, convenient loading and unloading operations.
Technical data:
Model: YAW-1000C |
Test Force Range(KN) : 40~1000 |
Test force measurement accuracy: ±1% |
Mainframe structure: Two-column |
compression space(mm): 500(according to user requirements) |
Pressure plate size (mm): 500×500 |
Column spacing (mm):500 |
Piston stroke (mm):80 |
Concrete (rock) modulus of elasticity: Extensible Configuration |
power: 4.5KW |
Mainframe size(mm): 800×580×1650 |
working condition: room temperature 10degree Celsius~30degree Celsius, relative humidity not more than 80% |
Weight(kg): 2000 |
