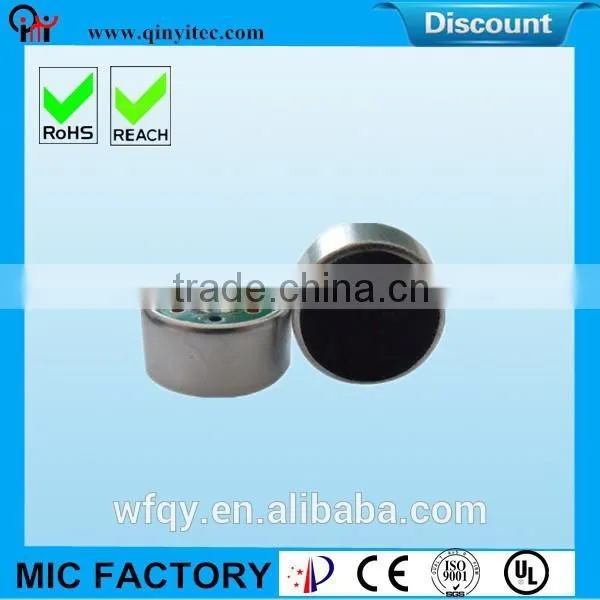

9.7mm*5.0mm Back unidirectional condenser microphone
Electret condenser microphone is a sound- electrical conversion device. The Electronic condenser microphone is used in telephones, wireless telephones, mobile phones, ear-telephones, PCs, language-learning recorders, radio recorders, cassette recorders, alarms, voice control toys, voice control switches and so on .
Technical parameters:
Specifications |
Technical parameters |
Sensitivity |
Customer defined |
| Impedance | 2.2Kohm±30% |
| Directivity | Unidirectional |
| Frequency | 50-10,000Hz |
| Max,operation voltage | 10V |
| Standard operation voltage | 3.0V |
| Current consumption | Max.0.5mA |
| Sensitivity reduction | Within -3dB at 1.5V |
| S/N ratio | More than 58dB |

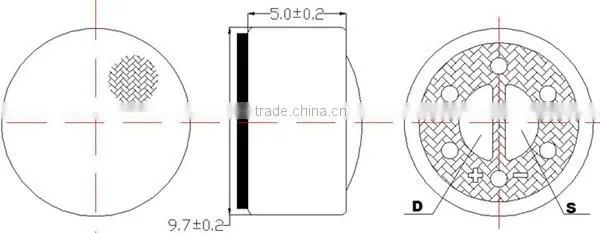

Dimensions:
Typical Frequency Response Curve:
1, Payment : T/T, L/C, Western union,Money Gram,Paypal.
2, Shipping: door to door(UPS/DHL/FEDEX/TNT/by air).
3, Delivery time: 7-9 working days depending on your order quantity.
4, Free sample can be provided for your testing.
5, Sample time: 3-5days after you confirmed the order.
