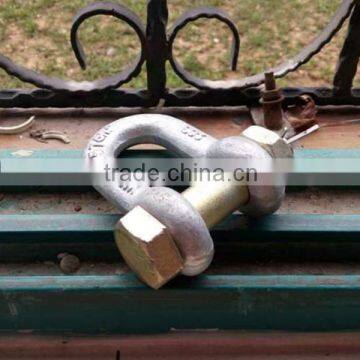

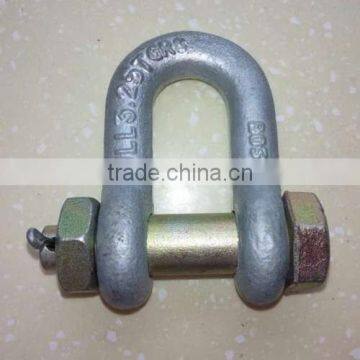

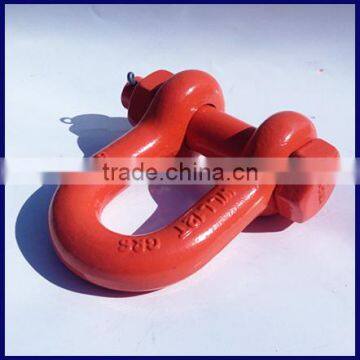

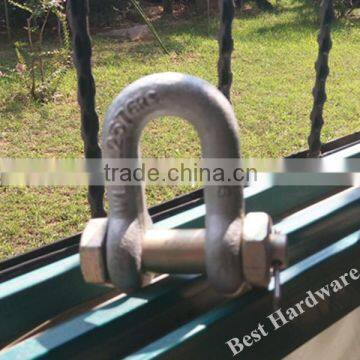

Qingdao rigging AS2741 grade s marine rated d shackles
Qingdao rigging AS2741 grade s marine rated d shackles
| Qingdao rigging AS2741 grade s marine rated d shackles | ||||

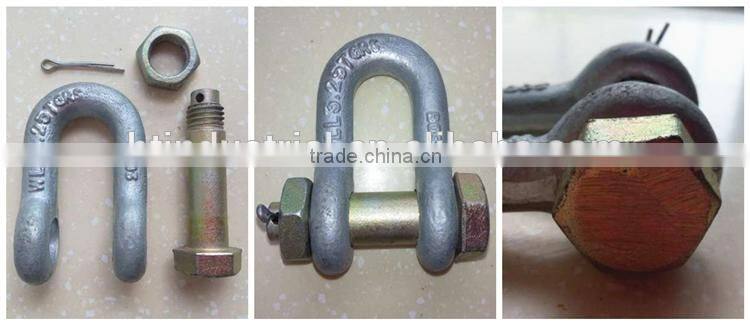

| MATERIAL: | Body,Nut and Cotter Pin was carbon steel,BOLT was alloy steel | |||
| CONSTRUCTION: | Quenched and Tempered | |||
| STANDARD: | AS 2741-2002 | |||
| GRADE: | S(6) | |||
| working load limit | diameter bow(mm) | width inside(mm) | diameter pin(mm) |
| WLL0.33T | 5 | 10 | 6 |
| WLL0.5T | 6 | 12 | 8 |
| WLL0.75T | 8 | 13 | 10 |
| WLL1T | 10 | 17 | 11 |
| WLL1.5T | 11 | 18 | 13 |
| WLL2T | 13 | 21 | 16 |
| WLL3.25T | 16 | 27 | 19 |
| WLL4.75T | 19 | 32 | 22 |
| WLL6.5T | 22 | 37 | 25 |
| WLL8.5T | 25 | 43 | 29 |
| WLL9.5T | 29 | 46 | 32 |
| WLL12T | 32 | 52 | 35 |
| WLL13.5T | 35 | 57 | 38 |
| WLL17T | 38 | 60 | 41 |
| WLL25T | 44 | 73 | 51 |
| WLL35T | 51 | 83 | 57 |
| WLL55T | 63 | 105 | 68 |
| WLL85T | 76 | 127 | 83 |
| WLL120T | 89 | 146 | 95 |
| WLL150T | 102 | 165 | 108 |

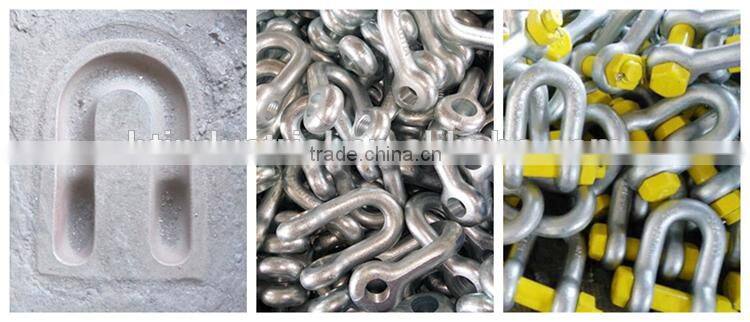

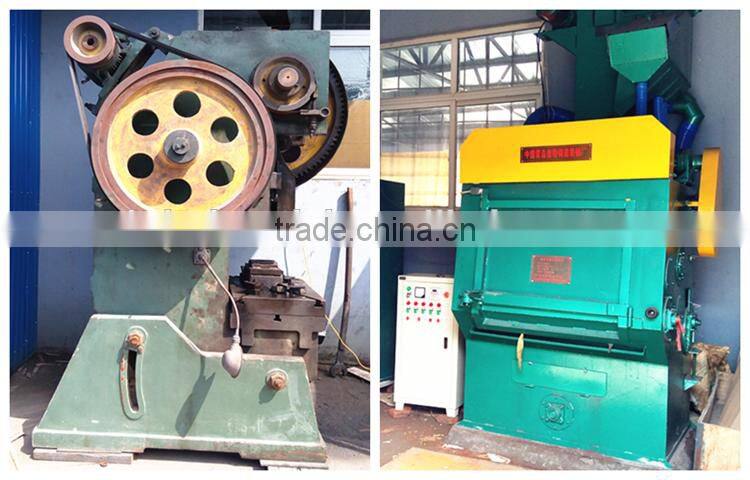

MASS PRODUCTION

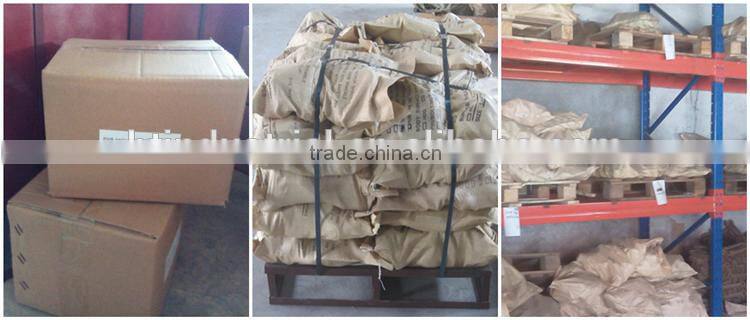

Packing
We can provide various kinds of packaging according to customers' requirements, for ordinary package, we use pp bag + steel pallet.
Testing Equipment
To guarantee the quality , each kinds of products will be strictly checked before shipment.

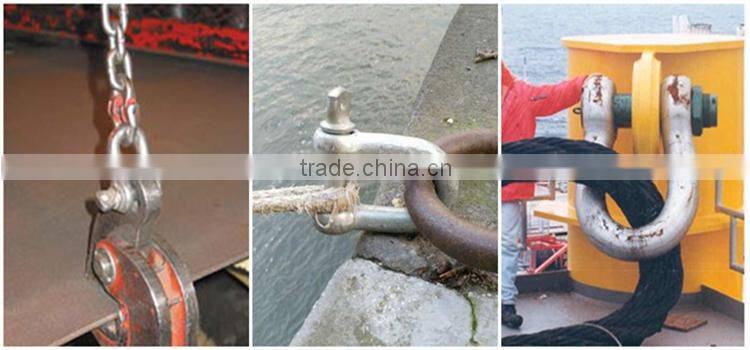

Widely used in electric power, metallurgy, petroleum, machinery, railway, chemical industry, ports, mining, oil & gas, fishing, offshore, construction and other industries.
We take part in the International Hardware Fair Cologne in Mar.2015 and obtained good results.

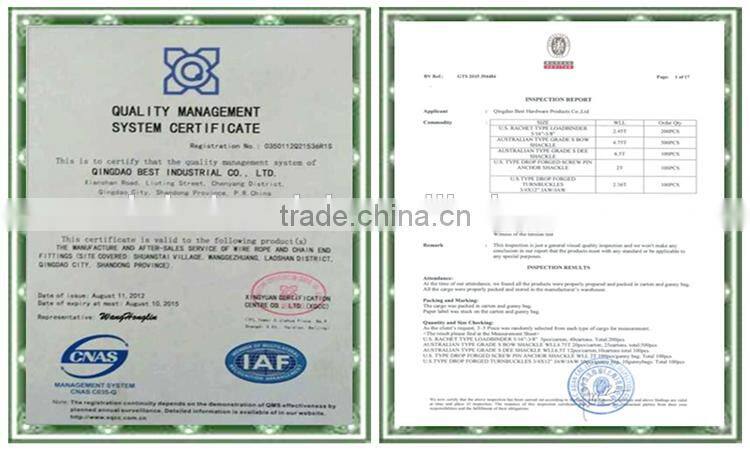

We have obtained ISO9001-2008 Quality System Certificate early in this industrial. Our products can pass the test for some famous testing organizations,such as SGS, BV, etc..
Founded in 1995, Qingdao Best Hardware Products Co., Ltd is one of the earliest Industrial and trading companies that specializes in producing and exporting rigging hardware, such as shackles(especially US type and Australian type),turnbuckles, hooks, binders, clamps, eye bolts and nuts, thimbles, anchor chains and stainless steel rigging . We are located in the beautiful coastal city Qingdao, China, with convenient transportation access.
We have professional technicians, strict management system and advanced producing facilities. We have obtained ISO9001-2008 Quality System Certificate early in this industrial.
All staff of BEST warmly welcome friends to visit our company for more extensive cooperation in business, technology and investment. We will make progress and gain glory of success together on the basis of equality and mutual benefit!
Our Advantage
1. We are Manufacturer.
2. We are specializing in various kinds of shackles, turnbuckles, load binders, chain fittings, clamps, eye bolts and nuts, thimbles, wire rope clips, anchor chains and stainless steel rigging.
3.Stock: Rich .
4. We accept customized drawing and dimension.
5. Best Quality,Competitive price, Fast delivery,24 hours Service.
6. Our clients are from Europe, America, Australia, Africa, Mid East, etc..
7. We assure that Each kinds of item must be strictly inspected one by one before shipment .
8. All finished products are not on ground.
1. Are you a manufacturer or a trading company?
We are a manufacturer which has been specializing in rigging hardware for more than 15 years.
2. Can you provide the free samples?
Yes, we can provide the free samples, but the freight is on your side.
3.Do you have any stock ?
Yes , usually we have some stock for the ordinary items
4. What about your product’s price?
As we are factory, the same quality product, the best price.
5. What about payment?
Usually we accept 30% T/T advanced, 70% of the balance before shipment, except L/C is available.
6.How do you control quality?
a) Pay attention to adaptation for manufacture process
b) Third party inspection is accepted
c) Each kinds of item must be strictly inspected one by one before shipment .All finished products are not on ground.
d) Comply with ISO 9001-2008
Welcome your inquiry,I will quote to you as soon as possible!
