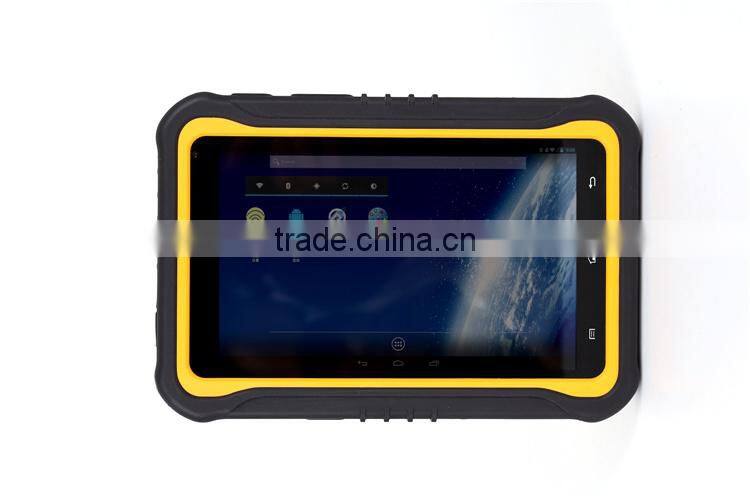

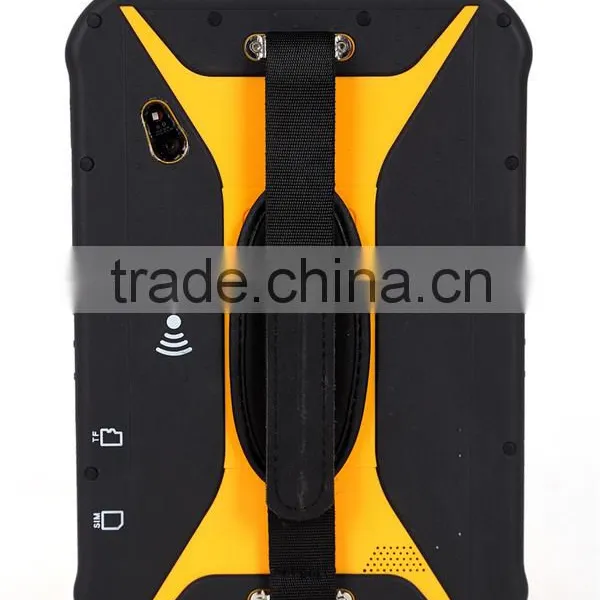

7 Inch Android 3G GPS WIFI Rugged Tablets PC With NFC
| Hardware | ||
| Chipset | Samsung Exynos 4412 Cortex-A9 Quad Core 1.4GHz Processor | |
| Mali-400 MP GPU | ||
| Frequency | WCDMA 850/2100 (850/1900 optional) & GSM850/900/1800/1900 | |
| SIM card | Yes, support 1.8/3.3V SIM card | |
| OS | Android 4.4 | |
| GPS | Satellite Navigation GPS/GNSS chip built-in, | |
| high-precision positioning within 5m accuracy | ||
| RFID(Optional) | HF RFID(13.56MHz) ≥5cm | |
| UHF RFID(920-925MHz) ≥3m | ||
| NFC | Support | |
| Bluetooth | BT4.0 (A2DP+EDR) | |
| Gravity Sensor | Support | |
| Magnetic Field Sensor | Support | |
| Gyroscope Sensor | Support | |
| Light Sensation | Support | |
| Speaker | With loudspeaker sound cavity | |
| Network | ||
| 3G | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), | |
| support WIFI AP | ||
| 4G | Support(Optional) | |
| EDGE | Support | |
| GPRS | Support | |
| WAP | Support | |
| Display | ||
| Main Display | 7.0'' HD IPS LCD | |
| 1280*800 16.7M color 400 cd/m2 Highlight, Sunlight Readable | ||
| Touch Panel | Corning Gorilla Glass3 G+G 5 points high strength capacitive touch screen | |
| Camera | ||
| Rear Camera | 8.0MP(AF) with flash led | |
| Front Camera | 2.0MP | |
| Memory | ||
| Internal Memory | 1GB DDR3 RAM + 16GB EMCP | |
| External Memory | Micro SD card (T-FLASH card), up to 64GB(Customizable) | |
| Batteries & IO | ||
| Capacity(mAh) | 9500mAh | |
| USB (HOST) | USB Micro 5Pin | |
| USB (DEVICE) | USB Micro 5Pin | |
| Earphone | 3.5mm | |
| Other Special Design | ||
| Serial port | RS232/TTL×1;GPIO 3.3V×2;USB(Device)×1 | |
| Controllable Power Source: 200mA×1;Battery Power×1 | ||
| PSAM Card Encryption Built-in | Optional | |
| Environmental test | Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Shock-proof | MIL-STD-810G certified/ Method516.6/Procedure IV | |
| Drop-proof | Drop from 1.2m/ 3.937ft(Six Sides & Four Angles) | |
| Dust-proof | Class 6 | |
| Water-proof | Class 7 | |
| Soundness | MTBF>50000h; MTTR<0.5h | |
| Operating Temp | -20°C to 65°C | |
| Non-operating | -40°C to 80°C | |
| Relative Humidity | 5% to 95% non-condensing | |
| Operating Altitude | Maximum operating altitude: 4,500m(15,000 feet) | |
| Accessories | ||
| (Optional) |
Capacitive stylus/ Wrist Strap/ Tether/ Hand Strap/ Tablet Bag/ Tri-proof Power Bank/ USB Keyboard |
|
| Others | ||
| Package | High quality jamproof shielded USB cable×1/ Charger 5V/2A×1/ User Manual×1/ Package box×1 | |
| Size(mm) | 206×140×21mm(L×W×H) | |
| Net Weight(g) | 650g | |
CSP-708M 7 inch Android 3G GPS WIFI Rugged Tablets PC is loaded with the mainstream Android 4.4 OS, and integrated with HF/UHF RFID reader, 3G/4G LTE private communications, GPS/ Beidou positioning, front and rear camera, WiFi/Bluetooth, NFC,fingerprint sensor, PSAM card encryption, etc. These functions make it very suitable for electric power industry, petrochemical, logistics and other industry applications.
1.Advanced system
Android 4.4 operating system;
quad core 1.4 GHz CPU;
RAM 2G ROM 16G, Micro SD 64G
2.Three-proof design
IP67 three protection grade(waterproof, dustproof and shockproof), drop resistance from 1.2m,adopt Corning Gorilla Glass3G+G5 points high strength capacitive touch screen.
3.Visible under strong light
7 inch LCD screen, 1280x800 IPS capacitive touch screen
4.Powerful function
Multi function information acquisition configuration
(1D/2D bar code scanning, LF/HF/UHF RFID reader, fingerprint identification)
5.Multi communication modes
3G/4G, WIFI, Bluetooth and many wireless communication modes
6.Strong battery life
Up to 9500mAh battery capacity,assure long working time operation.
7.Support professional GPS
Support differential data or common GPS(GlONASS)
8. Support jacket extension
Satisfy custom applications from customers
CSP-708M 7 inch Android 3G GPS WIFI Rugged Tablets PC has been applied to many industry fields, such as electric power, petrochemical, government supervision, asset management, etc.

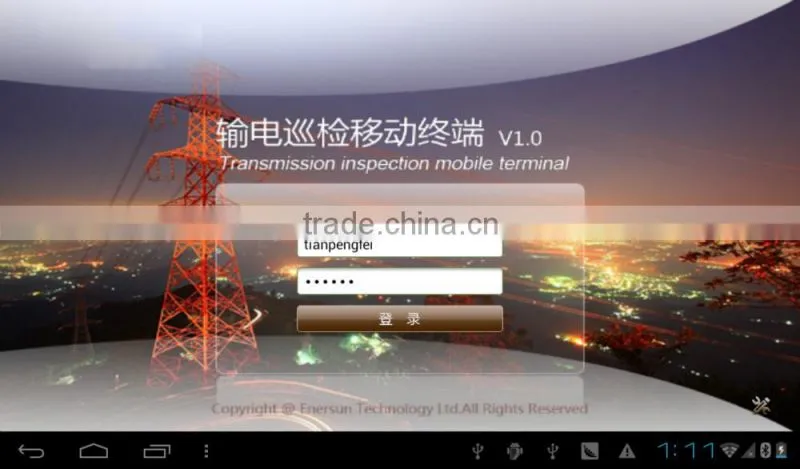

Electric Power Industry Mobile Application
By using RFID, mobile internet technology, realize mobile intellectual inspection in transmission, substation, and distribution segment, thereby reach the aim of lean management and closed loop management.
Petroleum & Petrochemical Industry Application
By using RFID technology, realize automatic, fast, accurate reading of prospecting acquisition station inbound and outbound operation, thereby increase the warehouse management accuracy and efficiency.
Government Supervision Industry Application
By using RFID, sensors, video surveillance, wireless transmission technology, realize the fireworks businesses flow direction and flow real-time monitoring, storehouse excessive early warning, storehouse temperature and humidity real-time monitoring, video surveillance alarm functions, thereby decrease the safe production accidents rate.
A. Package Detail: standard packing/ neutral packing/ customized packing as required.
Standard packing: Inner Box: 235mm×170mm×75mm; 10 Boxes/ Carton.
Customized color box base on 1000sets.
B. Delivery Detail: At least 7-10 working days, depend on order date, order of magnetic, and receipt of payment, as follow:
Within 20 sets, 7-10 working days.
Within 100-500 sets, 30 days.
Above 1000 sets, 60 days( which depend on production schedule).
Most samples will be delivered by air express(DHL,Fedex,UPS ,TNT,etc)
Courier will be charge about @USD50.00/unit from China to destination (office or home),which shall be payable on buyer account.
For bulk orders, shipping cost would be reduced significantly.
1. All products are fully inspected before ship out. If you have any questions after receiving the product(s), please contact us within 24hrs of the receipt of your purchase.
2. Warranty Period
A. RFID Tablet & Battery
We generally provide 12 months warranty and technical supports from the date of product(s) arrived, please retain the receipt as proof of your guarantee.
Within warranty period, if there's any defective item found due to quality problems, we will perform the commitment of replacing or repairing the defective components for free charge. This term is not applicable to failures caused by humans.
B. Accessories
Charger’s warranty period is 6 months from the date of product(s) arrived.
Other accessories such as data cable or any optional accessory are not covered by this warranty policy.
C. We provide compensable service for device life-long maintenance after the warranty period.
3. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
4. All return items must be in its original conditions, including inner box and accessories. Human factor defects are not guaranteed, such as broken, scratched and so on.
