| Brief Introduction |

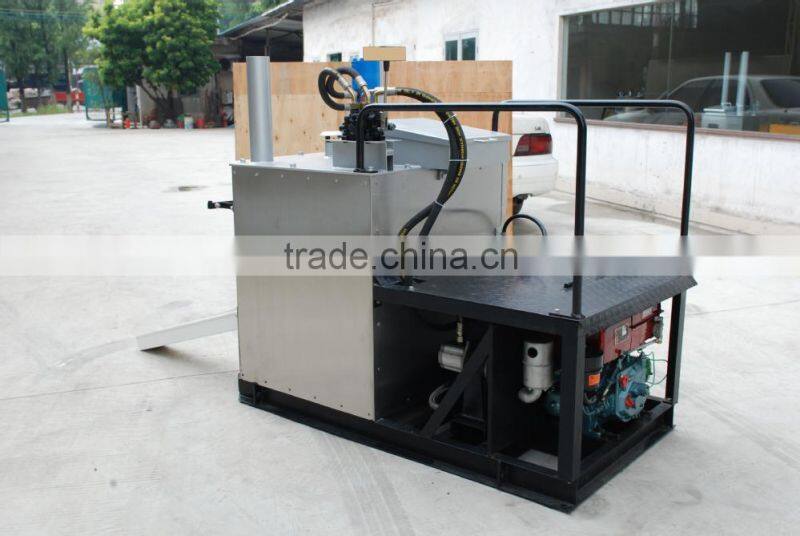

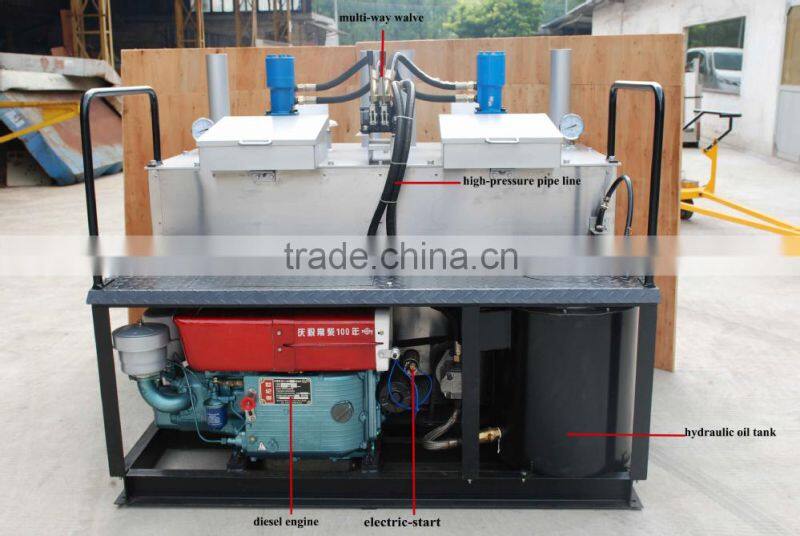

Hydraulic double-cylinder Pre-heater are one of the key machines for the construction of thermoplastic marking at present. With hydraulic drive as well as positive and reverse rotation controlled by multi-way reversing valve, the melting speed gets faster. It is mostly used in the construction of marking at the sites where fast melting is required such as freeway, State Highway, Provincial Highway etc.
| Technical parameters CONTACT US |
No. |
Model |
TW-YC |
TW-YA |
TW-YB1 |
1 |
Outer dimensions |
1620*1620*1400mm |
1400*1400*1350mm |
750mm*1700mm*1370mm |
2 |
Empty weight |
850kg |
550kg |
350kg |
3 |
Thickness of boiler bottom |
8mm |
8mm |
8mm |
Diameter of boiler |
700mm |
550mm |
600mm |
|
Height of boiler |
550mm |
550mm |
550mm |
|
Capacity of paint |
400kg*2 |
250kg*2 |
300kg/400kg |
|
4 |
Agitator rotating speed |
0-80r/min |
0-80r/min |
0-80r/min |
5 |
Thickness of outer frame(stainless steel ) |
2mm |
2mm |
2mm |
6 |
Capacity of hydraulic oil tank |
60L |
60L |
60L |
7 |
Diesel engine power |
12KW (16HP) |
7 HP |
7 HP |
8 |
Engine start method |
Electrical(12V), Manual |
Electrical(12V), Manual |
Electrical(12V), Manual |
2. Product Image
|
Why choose us? Sent Inquiry<<<
- Pictures and videos can be provided to you to show how to use the machine.
- 7*24 Hours Service: we treat clients as friend.
- High Quality: We have strict quality control system and enjoy a good reputation in the world.
- Creation: the machine could be customized
- We have 10 years of export experience, export in over 40 countries(US, BR, PHI, CA,GE, UK…)
| Popular Products |
|
|
|
|

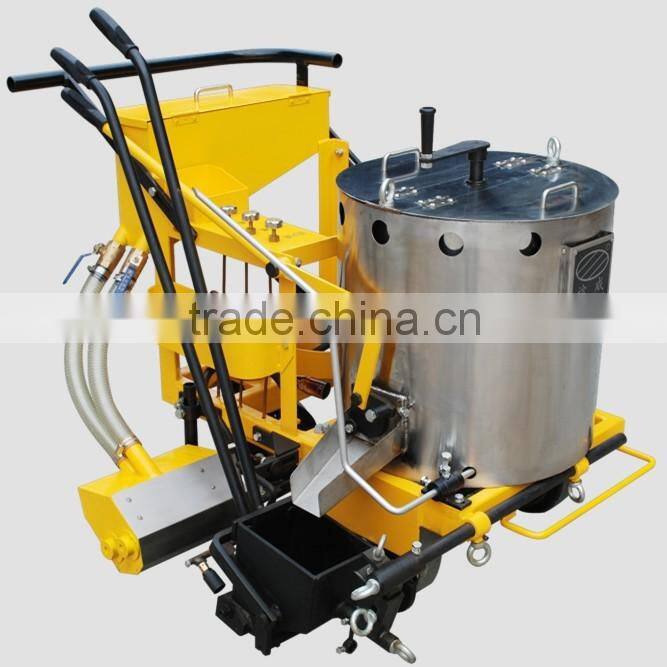

1. Q: Can this machine preheat the thermoplastic paint?
A: No. It needs to work with a preheater, like the last picture. The TW-H just can preserve the heat of thermoplastic paint.
2. Q: Do you have thermoplastic road marking machine with preheater?
A: Yes, we have. It is model TW-FJ, which is suitable for small line marking project. For more details,pls check home page.
3.Q: Can I adjust the line thickness? And how?
A: Yes, it could be adjusted by edging knife and hanger. The normal line thickness is 1.2-4 mm.
4.Q: How to mark lines in different width?
A:Change the marking hopper, change line width. We have varied sizes, from 50 mm to 450mm. Usually, the standard equipment is 150mm. The other size is optional. Also, we could produce special marking hopper for you.
5. Q: What about the after-sale service?
A: We are responsible to provide technical advise in the machine's whole shelf life. We help solving problems via whatsapp, skype,viber and email by sending pictures and videos.
