Specifications
Induction Lamp Walkway LightETL,CE,ROHS
tempered glass wire guard
50%~75% cost savings,low maintenance,long lifespan
With CE,ETL,ROHS 200w Induction Lamp Walkway Light
Ideal retrofit lamp replacement of traditional Metal halide and High pressure sodium lamp.
induction lamp, induction lighting,induction lights,induction lamps,energy saving lamp,energy saving lighting,electrodeless indution lamp,courtyard light, courtyard lamp,walkway light,walkway lamp.
Why induction lamp?
- 50%-75% cost savings
- Simple elegant solution
- Longest life span
- Ultra low maintenance
- No liquid mercury
- High Efficiency
- Higher power factor
- Environmentally friendly
- Longest life span
- Ultra low maintenance
Comparison Program between Induction Lamp & Metal Halide Lamp, High Pressure Sodium light, High Pressure Mercury light
Comparison program |
Induction Lamp |
MHL |
HPS |
HPM |
Warranty |
5 years |
no |
no |
no |
Life span |
Compact: 60,000 hrs |
6,000~20,000hrs |
24,000 hrs |
3,000~6,000 hrs |
Energy-saving performance |
Super |
Poor, high power consumption |
Poor, high power consumption |
Very Poor, very high power consumption |
Effective efficiency |
150 Plm/W |
110~140 Plm/W |
90 Plm/W |
43 Plm/W |
Lumen deperciation(%) |
Very low, 5%(2000hrs) |
A little big, 40%(2000hrs) |
Big, 30%(2000hrs) |
Very big, 45%(2000hrs) |
Lamp temperature |
Very low, <80c, save the air conditioner consumption |
High, >300 c, make the air conditioner's power consumption high |
High, >350c, make the air conditioner's power consumption high |
Very high, >300 c, make the air conditioner's power consumption high |
CRI |
>80, super |
65~90, good |
60, poor |
45, very poor |
Restrike |
Instantly |
Need up to 10~15 minutes |
Need up to 10~15 minutes |
Need up to 10~15 minutes |
Instant hot restrike |
Instant start |
not |
not |
not |
Fliker |
no |
yes |
yes |
yes |
Glare |
no |
yes |
yes |
yes |
Eco-friendly |
No waste lamp recycling, and mercury pollution |
Problem with waste lamp recycling |
Problem with waste lamp recycling |
Problem with waste lamp recycling and mercury pollution |
Comparison Program between Induction Lamp & LED light
Comparison program |
YML induction lamp |
LED |
Feature Define |
Low Voltage Discharge |
Lighting Emit Diode |
Liner light. Good for large wattage application. |
Spot light. Usually for signboard, decoration applications. |
|
Market potential |
Big |
flood area |
Application |
Industrial, commercial, street, tunnel, bridge, garden, agriculture, Ad. … |
Traffic signal, vehicle rear lights, cell phone display screen etc. Limited in functional lighting projects. |
Technical data |
1. Power: 15~300W |
1. Each 0.5~1W, more than 100 needed for large wattage. |
2. Efficacy: >80lm/w |
2. Efficacy: <60 lm/w(white light) |
|
3. CRI: >80Ra |
3. Color Rendering Index: >80Ra |
|
4. Color temperature: 2100K~6500K full range |
4. Color temperature narrow range(white light LED) |
|
5. Depreciation: 5%(2000hrs) |
5. Light attenuation: >50%(2000 hours) |
|
6. Life:>100,000hrs |
6. Service life: <50,000hours |
|
7. Heat output: very low |
7. Heat value: very high, needs cooling device. |
|
8. Light fitting: easy to accommodate |
8. Fixture: because of more than100 led in the same large Circuit Board, it is difficult to design the right reflector. |
|
9. Liner light source: no glare, no flicker, good visual effect. |
9. Light source: Dazzling glare and flicker, serious light pollution. |
MB03A Courtyard Light
Features:
Lifespan: 100,000 hours
Warranty: 5 years
Luminous efficiency range: 70 to 90lm/W
CCT range: 2,700 to 6,500K
CRI: >80
Voltage: 120V-277v,208-347V
1. Fixture:
1. Aluminum alloy housing with powder-coated finish for corrosion resistance
2. High luminosity optimizes light uniformity
3. Heat-resistant and gas tight rubber seal for high IP rating
4. IP Class: IP53
2. Lamp and ballast:

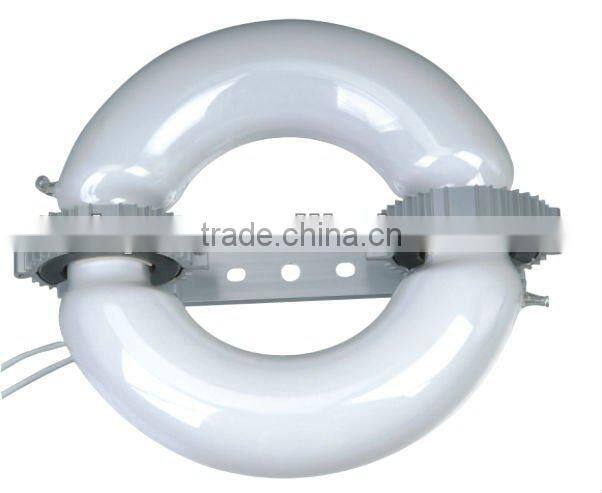

1. 100-200W round type induction lamp with high lumen efficiency, high lumen
maintenance, long lifespan, and excellent CRI
2. 100-200W electronic ballast with die cast aluminum case features high power factor
(>0.96), low energy loss, and long lifespan
Application: Parks, Shopping Malls, Courtyards, Historic Areas, etc.
