Home > Lights & Lighting > LED Outdoor Lighting > LED Tunnel Light > Induction Lamp Tunnel Light Commercial Lighting Company

Induction Lamp Tunnel Light Commercial Lighting Company

US$ 40 - 500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Light Source:

Induction Lamps

Input Voltage(V):

110-347V

Lamp Power(W):

500

Contact Supplier Request Quote Chat Now

Shanghai Yuanming Lighting Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Light Source Induction Lamps

Input Voltage(V) 110-347V

Lamp Power(W) 500

Lamp Luminous Flux(lm) 42500

Lamp Luminous Efficiency(lm/w) 85

Color Temperature(CCT) Pure White

Working Temperature(℃) -40, 40

Working Lifetime(Hour) 100000

Lamp Body Material Aluminum

IP Rating IP65

Certification CCC, CE, EMC, ETL, FCC, GOST, LVD, SAA, UL

Base Type E39

Place of Origin Shanghai, China

Brand Name YML

Model Number YML-TL02A-W100

Specifications

1. Induction lamp tunnel light Commercial Lighting Company
2. Manufacturer in Shanghai
3. UL,C-UL-US,TUV,CE,EMC,RoHS,ETL,SAA

Product Description

YML-TL02A-W100 induction lamp tunnel light

Commercial Lighting Company

Production Description

China TOP brand.
CE, UL, ETL,SAA,GOST,FCC,CB,3C, RoHS,EMC listed .
4 TOP Chinese professors & engineers.
over 50 patents.
one of the largest manufacturers in induction lighting
Shanghai High-Tech Enterprise Award
some of YML technology features became the national standard

Item	YML specification
Feature define	liner light,good for large wattage application
Application	industrial,street,tunnel,bridge,agriculture,ad,commercial...
Power	40-500W
Efficacy	>80lm/w
CRI	>80Ra
Color temprature	2100-6500K

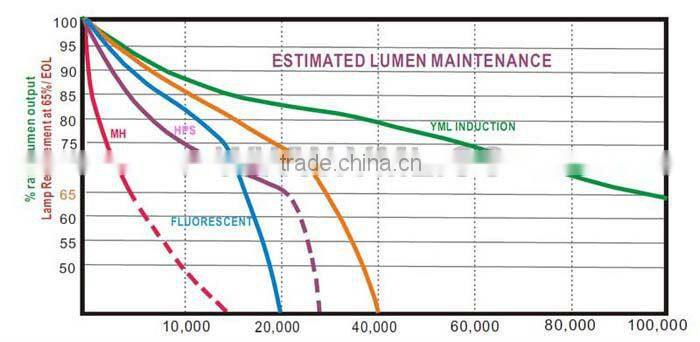

Lumen depreciation	5% (2000hrs)
Life	>100,000hrs
Heat output	very low
Fitting	easy to accomodate
Light source	good visual effect.
Restrick	instantly
Instant hot restrick	instantly
Glare	no
flicker	no
Eco-friendly	no waste lamp recycling, and no mercury pollution
Energy saving	40-50%
Cost saving	50-75%

Model	Lamp	Wattage	Ballast	Voltage (V)	CCT (K)	Ambiet Temperature	Installation	Replace HPS Lamp(W)
YML-TL02A -W80	WJY80H850W/T	80	<8	AC:120-277V AC:208-347V	5000	-25-40C -13-104F	Roof mounted by 2 pcs “L”bracket horizontal ±25°C	150
YML-TL02A-W100	WJY100H850W/T	100	<10					175
YML-TL02A -W120	WJY120H850W/T	120	<12					250
YML-TL02A -W150	WJY150H850W/T	150	<15					400

Fixture

1. Profiled aluminum main housing and die cast aluminum side covers with heat resistant and gas tight rubber seal for high IP rating

2. High-reflection efficiency reflector imported from Germany

3. Tempered glass cover for shock resistance and durable use

4. Front opening structure for easy installation and maintenance

5. IP Class: IP65

Lamp and Ballast

1. 80-150W rectangle induction lamp with high lumen efficiency, high lumen maintenance, long lifespan and excellent CRI

2. 80-150W electronic ballast with profiled aluminum case, high power factor (>0.96), low energy loss, and long lifespan.

Applications

Tunnels, Bridges, Warehouses, Workshops, Airports, Stadiums, and Plant Growth, etc.

Warning:Disable all power to the luminaire before conducting any maintenance or upgrade activity. Failure to do so will create a hazardous and fatal working environment.

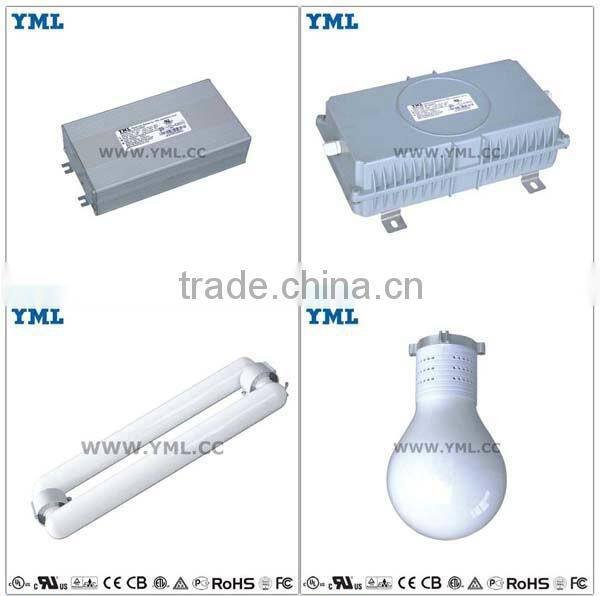

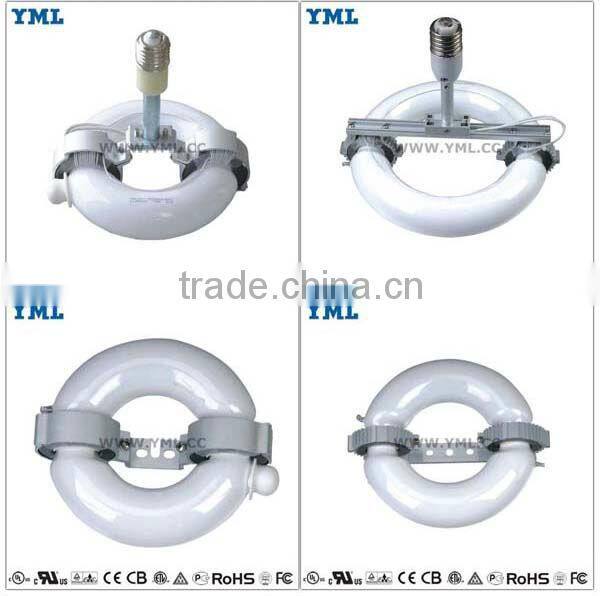

YML products

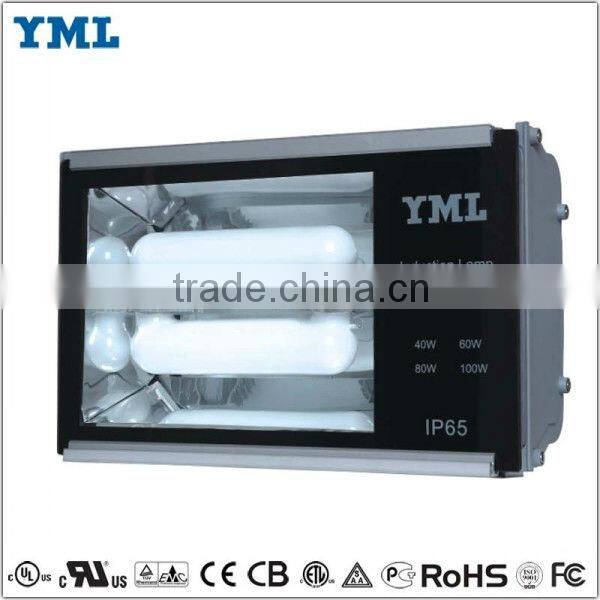

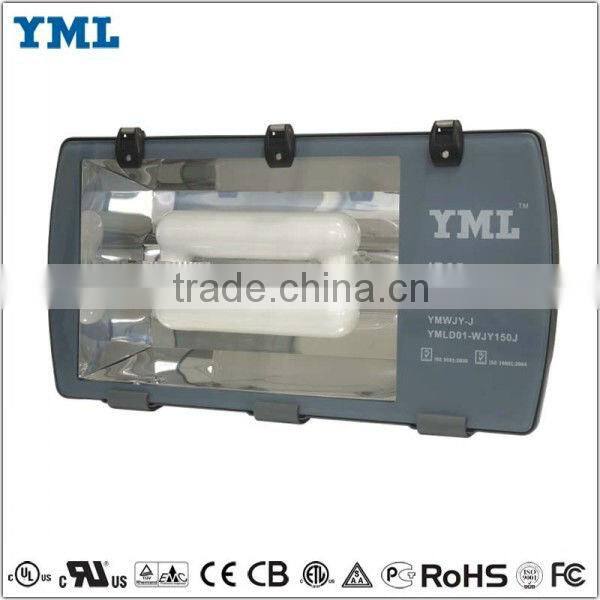

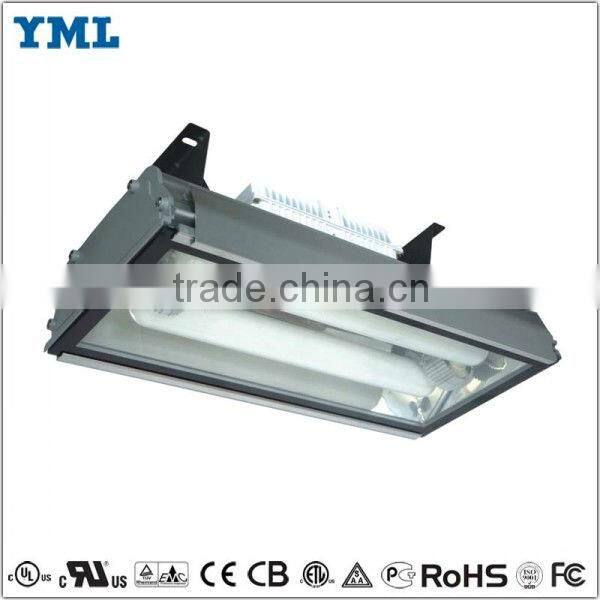

YML-TL series induction lamp tunnel light

Details show

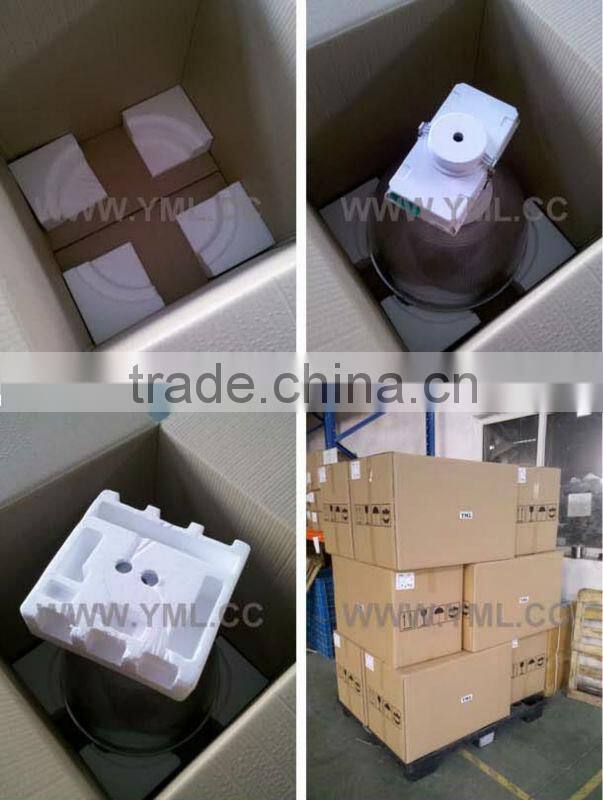

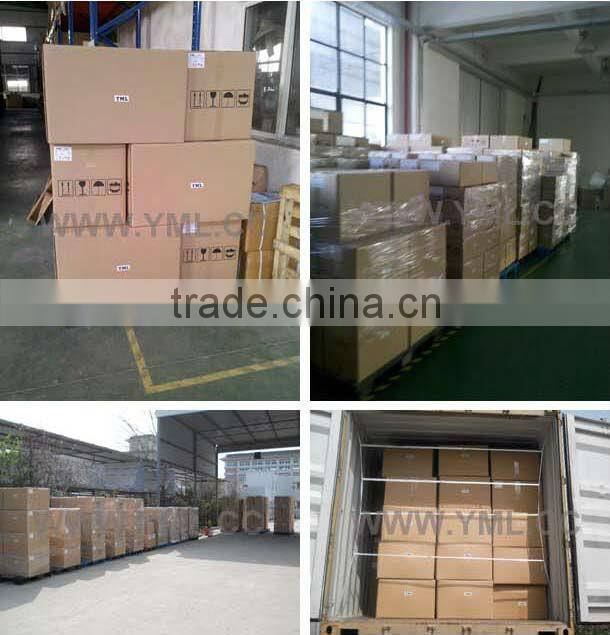

Packing details

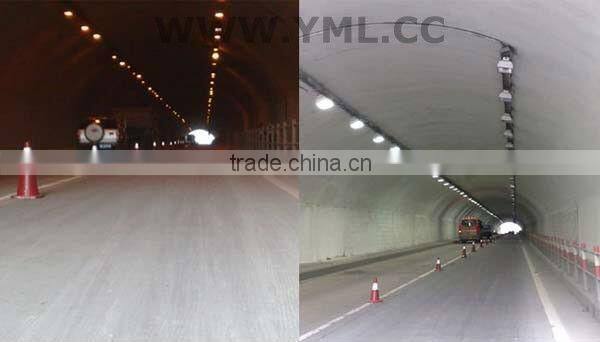

Some established cases

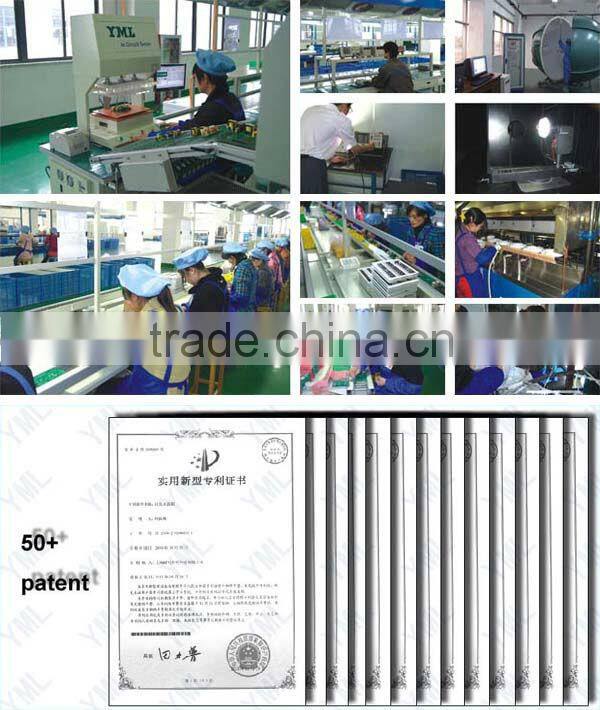

About us

YML has over 50 patents registered on Electrodeless Induction Lamp Products. YML also obtained the title of Shanghai High-Tech Enterprise and have also obtained UL&CUL, CE, CB,SAA,FCC, CCC, ISO9002, ISO14001 and many other Certifications. These products have been used in many important projects such as Shanghai Indoor Stadium, Shanghai World Expo Garden Beijing, Tiananmen Square and many workshops of the top 500 Enterprises.

Yuanming has a strong technical service team, which can provide technical consulting, lighting plan and solution, testing, after-sales service for domestic and overseas clients.
