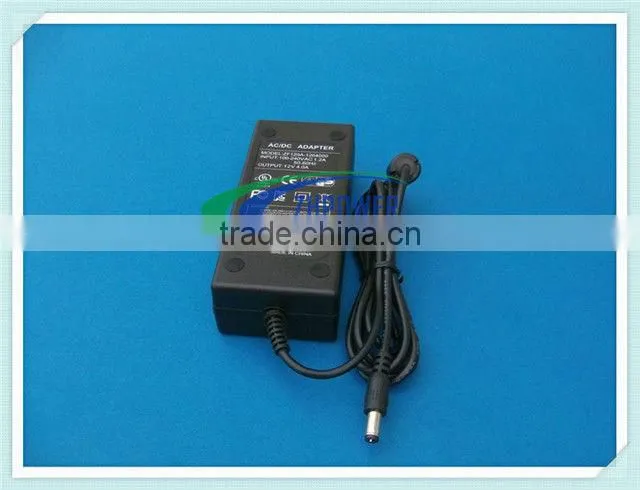

2013,new product! LED Strip Power Supply,4a battery charger 12v

Specifications

4a battery charger 12v
1. Safety certification
2. 10 years of production and R & D experience

4a battery charger 12v  pass UL .KC.GS.CE.CB.SAA Certification

Advantage
1. input voltage: AC 100-240V 50/60HZ
2. range voltage: AC 90-264V 47/63HZ
3. High efficiency and low operation temperature
4. AC input power suitable for the world
5. Soft-start current can reduce the AC input impact efficiency
6. With short-circuit and overload protection
7. Compact size ,light weight
8. 100%full-load burning test
9. Installed with EMI filter ,minimum wave

SAFETY & LEAD-FREE: UL/ CE/ GS/ KC/ PSE/ 3C/ CB/ SAA/ ROH

12v 4a 48w passed UL GS CE KC Spec. as following:
Output		Voltage	12 V DC
		Current	4A
		Output power	48W
		DC cord and Jack	1.5M length 16 AWG with 5.5*2.1*10mm DC
		Ripple and Noise	<120Mv at full road with 20MHz bandwidth
Input		Rated Voltage	100Vac~240Vac
		Frequency Range	47Hz~63Hz
		conversion efficieny	>85%
		AC Cable and Plug pins	1.5M length with 2 pins EU plug, IEC C13(Male) AC socket, IEC C14(Female)AC socket and the AC cable in IEC C13 socket
Protection		Over Voltage,Load& Current /Short Circuit  /High Temp
Temperature		Operating Temperature	0°C----+60°C
		Storage Temperature	-20°C----+85°C
Isolation test		Isolation voltage	Input/output terminal 3000VAC,5MA
Other		Type	Desktop
		Size(mm)	115*53*32mm
		Weight(g)	410g
		Shell color	Black
		Shell materials	ROHS approved ABS or PC
		Application	can fit UK US Euroepan market ,and can been used by Bluetooth device ,CCTV camera ,and LCD minitor , mobile phone ,pos machine ,laptop ac adapter and so on
Certificate		Certificate	CE GS TUV UL/CUL FCC 3C ROHS,SAA,PSE,C-TICK
		Safety Standard	EN60950-1 UL60950-1  ESD (EN61000 3-3)
			CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
			AN/NZS CISPR 22:2006

1.Applications of ranges

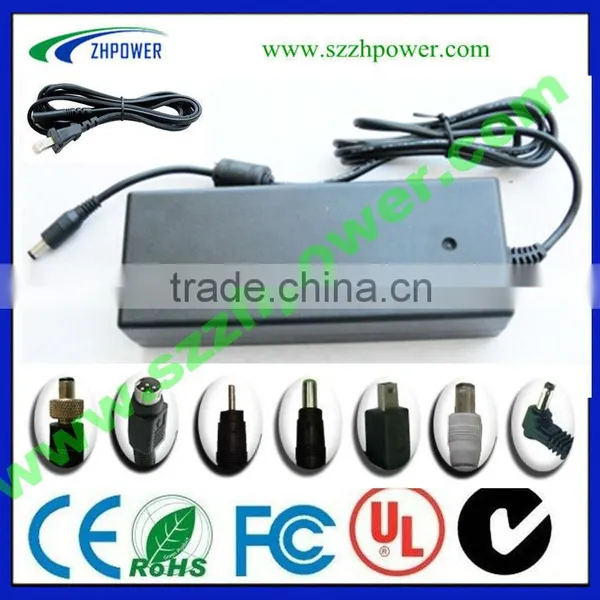

2.You can choose below DC Jack and input cable:

3.Test Equipment

4.Certificates

Amost all of our products get UL/ CE/ GS/ KC/ SAA/ 3C/ PSE/ CB/ ROHS etc

certificates, and if you have Special requirements of certificates,we can help to apply for you
