dimmable led driver 350ma with ce Approved

Specifications

dimmable led driver
Specifications
1.12v 350mA led transfer with ce Approved
2.high quality led driver

  P dimmable led driver roduct show

1.Specifications

Input Rated Voltage	86Vac~264Vac
Input Frequency Range	47Hz~63Hz
Input Current	0.5A(Max)
Working Efficiency	90%(MIN)at Rated Voltage
DC Output Voltage	12v± 5%  (option)
DC Output Current	350mA/ 700mA    (option)
Ripple and Noise	≤80Mv at full road with 20MHz bandwidth
Turn On Delay Time	≤1S  (AC:110V and full load)
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection	short current protection ,over voltage and current protection
Leakage Current	≤5mA
Operating Temperature	0°C----+55°C
Storage Temperature	-20°C----+85°C
Certificates	CE GS UL/CUL FCC ROHS
Safety Standard	EN60950-1 UL60950-1  ESD (EN61000 3-3)
	CAS (60950 ITE/TE)  FCC Part 15 subpart B Class II

2.Production Process

1.Purchasing the materials: each of our materials must be tested before





2.Tinning:Retouching-Testing,to make each products quality best.



3.Assembling:each little parts need to assemble by man-made and need to test



4.Aging:To test the products working life and make each product can

   be used as possible as long time.

5. Product outbound and package



6.Certificates

 Amost all of our products get UL/CE/KC/PSE/CCC/  CB /ROHS etc certificates,and if you have Special

requirements of certificates,we can help to apply for you.

 7.Product Shipment terms

 About the shipment terms,except below terms,we also can send the products

as your requirements,such as by sea



Our customers :

 Feedback:

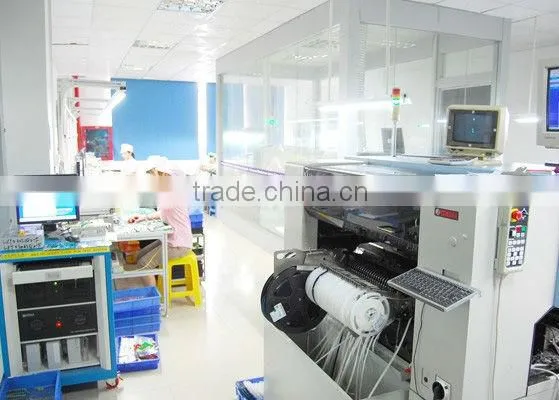

8.Our working environment



 Shenzhen Zhen Huan Electronic Co., Ltd.  is an excellent power solution provider, with more than 10 years' experience in R & D and production of power supplies. We are committed to provide the highest quality products and services with the best prices and the most punctual delivery time.



Our products are 100% through high temperature ageing, which accords with CCC, CE, UL and many other authoritative organization security authentication standard. In order to ensure timely delivery, we always keep standard product inventory. If you can't find the right type from our product display or you can't find the right product in the market, please contact us, we will develop satisfactory customized products for you.

We always adhere to the corporate value of "excellent quality and high efficient service" to provide you the best service.
