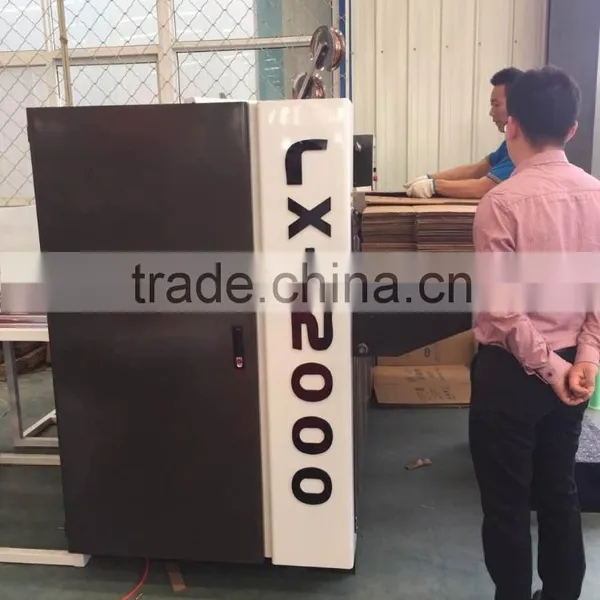

High speed semi-automatic stitcher machine/carton box nailing machinery

High speed semi-automatic stitcher machine

semi-auto stiching machine/ corrugated box stappler machine

1 Single ,double and strengthened nail are available

2 Nailing from 30-120 mm , auto-calculated; serive motor controls the nailing from by Delta, Japan.

3 5.7 in Hd color touch screen by Eview, Taiwan

4 PLC system and electrical devices by Siemens, Germany; phtoto-electricity switch and limit switch by autonics, Korea, high quality assured; the motor and reducer are made in Taiwan.

5 The reamer of pinhead is made by tungsten steel of Germany. Maching is exactitude by special heat – treatment and numerical control system .

6 All of the bearing are made by Brand of Germany

7 Full electrical controlled and it can be changed the size in one minute and handle easily without the relevant experience .

8 Nailing speed : 400nails /min

9 Number of Nails: 1-99

10 Automatic counter in the latter part ; deliver paper boxes in lot as set for strapping .

11 Total power : 6kw

12 paper height : 900 mm

13 Demensions:3300×2500×2000 mm

14 For Cardboard : 3/5layers  corrugated paper

15 Wire size: 17# flat Yam (2.0×0.75)

Main specifications :
