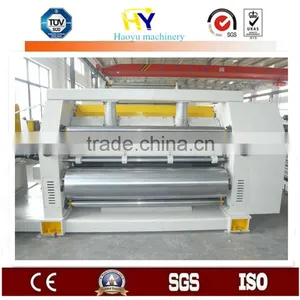

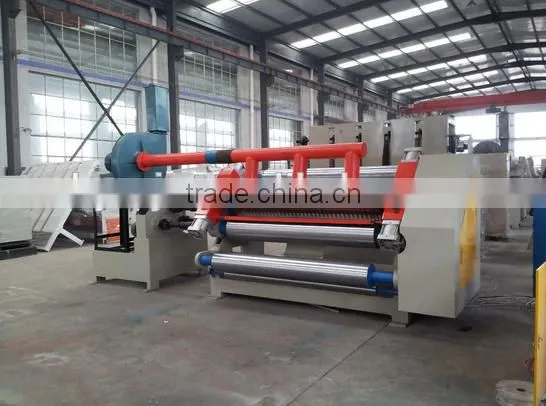

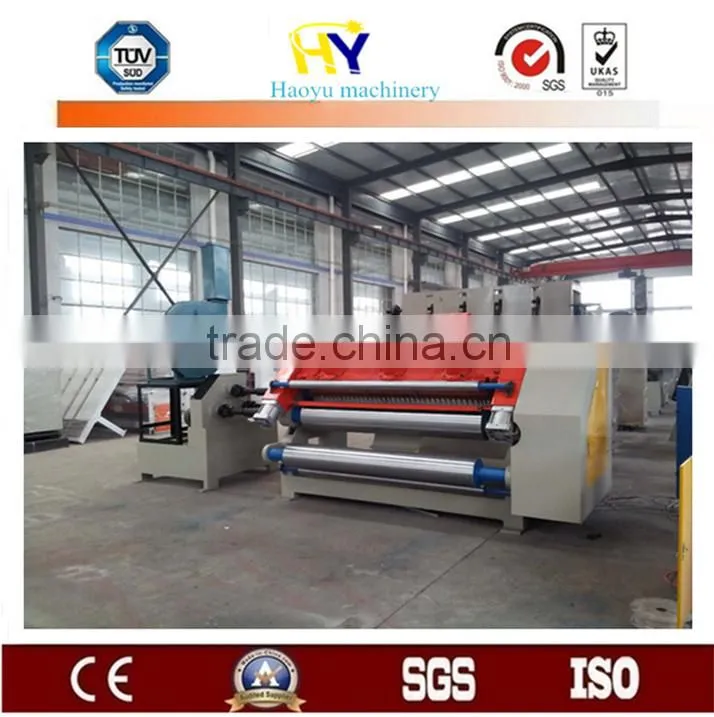

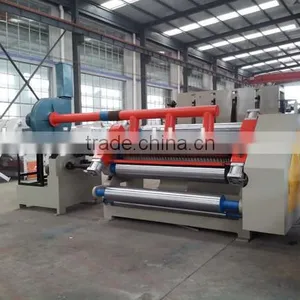

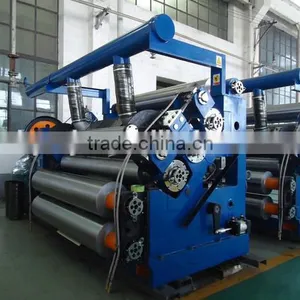

Help CenterHY-280S Fingerless Type Single Facer Machine/Corrugated Board Equipment/2 Ply Corrugated Paper Production Line
Related Products
-
2016 New Fingerless Type Single Facer Corrugated Machine/carton Box Packing Machine/carton Box MakingUS$ 10,000 - 20,000MOQ: 1 Set -
High Speed Single Facer/corrugated Paperboard Production Line/monolayer Paperboard Making MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
2016 Hot Sale Sf-280 Single Facer Corrugated Machine in ChinaUS$ 10,000 - 20,000MOQ: 1 Set
-
Electric Heating Corrugated Cardboard Single Facer Corrugator MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Adsorption Single Facer Machine/box Making Machine PricesUS$ 10,000 - 20,000MOQ: 1 Set
Corrugated Cardboard Carton Making Machine
Specification:
Design Speed |
80m/min, economic speed: 60-70m/min |
Max Paperboard size |
2000 mm |
Dimension(L*W*H) |
5000 x 2500 x 1900 mm |
Wight |
4.5Tons |
Face Paper |
105~200g/m² |
Corrugated Paper |
105~180g/m² |
Flute Profile / Corrugated Profile |
B |
Heating Method |
Electric Heating |
Electricity |
380V or 440V /3Phase /50HZ |
Machine Introduction:
1. Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
2. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance.
3. The exhaust fun motor drive suction case, absorb corrugated paper surround the corrugating rollers about 180 degree where is positive-pressure zone, make sure big strength for flute making.
4. Electricity heating type adopt triplex gimbal drive, work steady.
5. With “Self-circulating glue feeding system”, save glue and improve work efficiency.
6. Pneumatic control for pressure roller load/unload, with cushioning effect.
7. Gear box adopt submerged lubrication, enclosed gear drive, reduce machine shake, ensure high speed running.
8. Automatic added lubricate oil system.
9. The steel blank on top of machine can separate disconnect to clean garbage inside, not need disconnect whole machine.
10. Adjust glue thickness: Quantity of pasting glue and controlling glue is controlled by the clearance between glue roller and doctor roller adjust by manual
11. Glue width adopt manual adjust.
Raw materials & purchased components:
1. Corrugating roller: made in Beijing Package Group
Brief instruction of Making techniques: At first, forge the raw material, rough machine, the journal ends assemble into the roll blank, joint, backfire forge process, machine to the second destined size and the rough shape of the flutes, harden process, grind by CNC numerical control computer grinding machine, Chrome plating at the flute tips.
Corrugating rollers made of 48CrMo alloy steel, and induction hardened with hardness up to HRC58-60.
Flute: A flute 4.7mm, C flute: 3.75mm, B flute, 3mm, E flute 1.8mm, and flute profile UV unless marked. Special fluting requirements can be customized.
Upper/Lower Corrugating roller diameter: 280mm. made of 48CrMo alloy steel, and induction hardened with hardness up to HRC58--60
2. Pressure roller diameter: 292mm. Adopts 45# seamless steal pipe, surface with hardening treatment.
3. Gluing roller diameter: 230mm, Adopts 45# seamless steal pipe, surface with special experienced beautifying and chrome plating treatment.
4. Doctor roller diameter: 120mm, Adopts 20# seamless steal pipe, surface with Modulation and electroplating treatment.
5. Pre-heat roller diameter: 270mm, Adopts 20G steel, with chromed treatment.
6.Electric Silica tube heating photo:
Total six heating rolls, include 2pcs corrugating roll, 1pcs pressing roll, 3pcs pre-heater rolls.

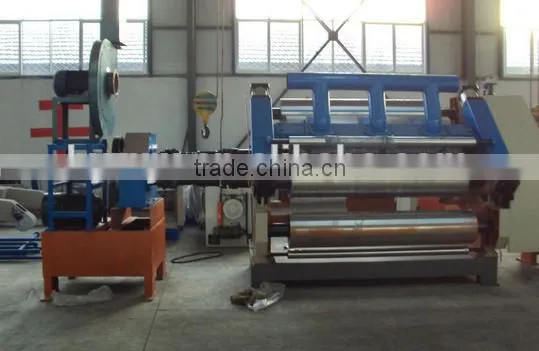

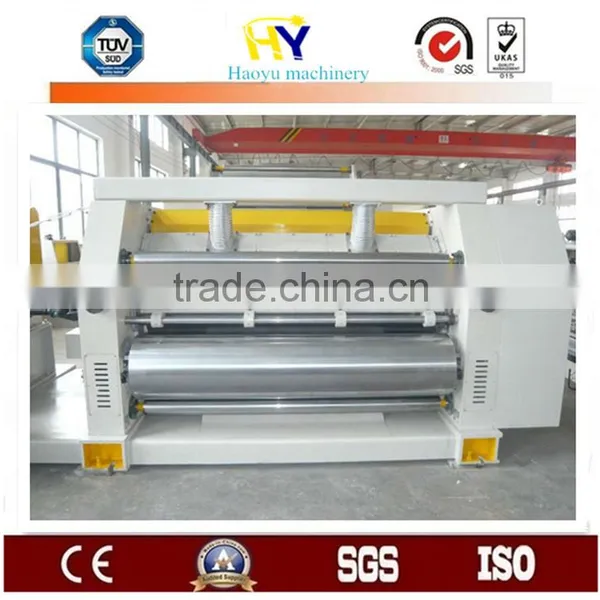

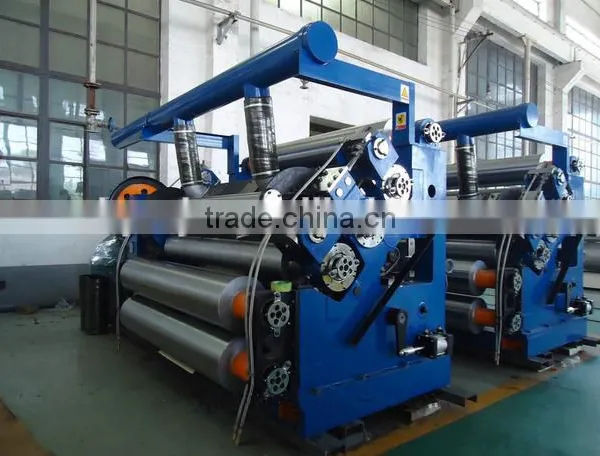

More Picture
Packaging&Shipment
