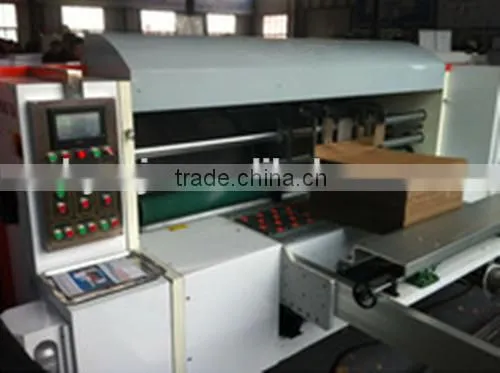

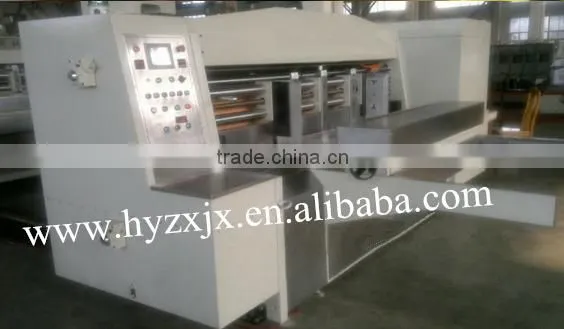

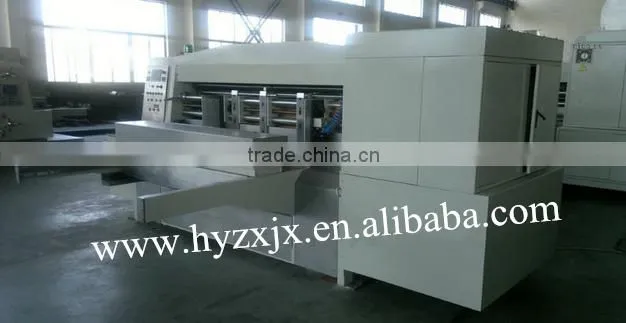

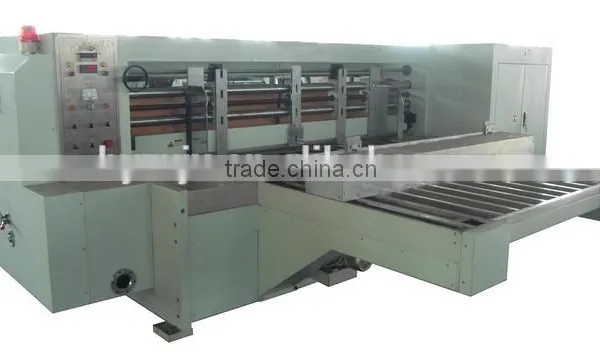

Automatic High Speed Rotary Die-Cutting Machine For Carton
US$ 18,000 - 26,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Automatic High Speed Rotary Die-Cutting Machine For Carton
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Automatic Carton Roll To Roll Rotary Die-Cutting MachineUS$ 10,000 - 15,000MOQ: 1 Set -
Carton Box Rotary Die Cutting MachineUS$ 8,500 - 10,000MOQ: 1 Set
-
Fingerless Type Single Facer Machine For Corrugated Cardboard Production LineUS$ 10,000 - 15,000MOQ: 1 Set
-
Hot Sale Corrugated Cardboard Vacuum Absorption Single Facer MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Corrugated Paperboard Single Facer Machine in ChinaUS$ 10,000 - 20,000MOQ: 1 Set
Type
Automatic High Speed Rotary Die-Cutting Machine For Carton

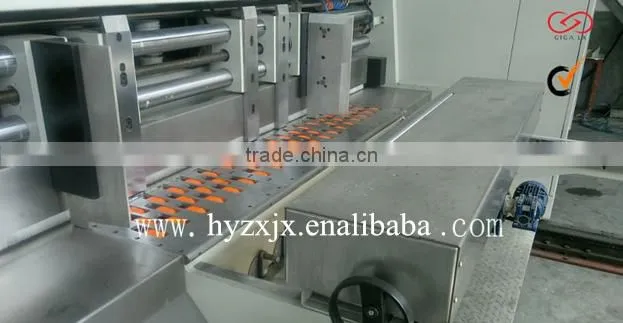

- Vacuum suck back-stopper automatic feeding make the crooked paperboard level off,
- Servo control lead edge feeder is for option.
- All transmission gears are made of high quality alloy steel (40Cr) grinded under high temperature with hardness > HRC42,
- Spraying circulation is adopted to lubricate the gears, reduce noise and prolong the service life.

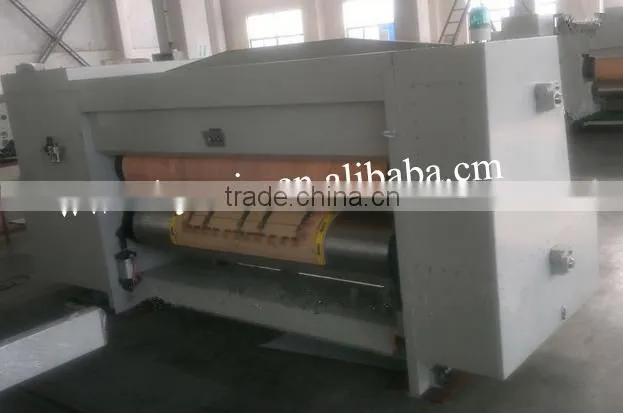

- Anvil roller and mould roller adopts high-grade steel with fine reground and chrome plated surface.
- Balance correction enhances running stability
- Mould roller and anvil roller can be apart / released by the air cylinder eccentric mechanism during non-working condition in order to decrease the load of the machine and to prolong the life of the cutting mould and urethane rubber.
- Pneumatic lifting device working synchronous with the feeding system (During the feeding operation the mould roller pressed and when the feeding stops the mould roller released to ensure the correct die-cutting of every paperboard)
- Mechanical drive anvil roller transverse moves within 60mm and installed with radial differential device to spread wear evenly (every cutting at different position) and to improve the life of anvil roller lx407
- No matter how vary the diameter of anvil roller, unique speed difference compensation device makes the anvil roller slide together with mould roller so that the surface speed of anvil roller complies with it of the mould .roller, to make a perfect, uniformed die cutting. slotting machine could be made in good quality.
- Imported urethane (rubber) cover and its correction device to prolong the working life 3 to 4 corrections, 1 1.5mm each correction
- Planetary gear phasing structure, 360 degree motorized adjustment (run, brake, forward & backward)
Model |
2000*1400 |
2250*1400 |
2500*1400 |
|
Max. machine speed (pcs/min)
|
100 |
100 |
100 |
|
Max. feeding size(mm)
|
1970*1370 |
2100*1370 |
2470*1370 |
Feeding depth (mm) |
2.5 12 |
2.5 12 |
2.5 12 |
|
Max. die-cutting size (mm)
|
1900*1280 |
2100*1280 |
2400*1280 |
