12V5A AC/DC POWER SUPPLY/ADAPTER WITH CERTIFICATE

12V5A AC/DC POWER SUPPLY/ADAPTER WITH CERTIFICATE thumbnail-1
12V5A AC/DC POWER SUPPLY/ADAPTER WITH CERTIFICATE photo-1
US$ 5.99 - 7.29 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
ZH120A-1205000
Output Type:
DC
Contact Supplier Request Quote Chat Now
Shenzhenshi Zhenhuan Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
YANTIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number ZH120A-1205000
Output Type DC
Connection Desktop

Quick Details

  • Place of Origin: China (Mainland)

  • Brand Name: neutral packing

  • Model Number: ZH120A-1205000

  • Output Type: DC

  • Connection: Desktop

  • Color: Black

  • Input voltage: 100V-240V AC

  • output: 12V5A DC

  • certificate: UL CE GS CB SAA KC NOM FCC

  • Input plug: C6 C8 C14

  • Output plug: male or female,5.5*2.1mm or 5.5*2.5mm,or others

  • warranty: one year

  • Weight: 282g

  • dc cord: 1.5m with magnetic ring,or 1.8m with magnetic

  • Packing:: White box

    Packaging & Delivery

Delivery Detail:

8 workdays

Specifications

1.Superior quality ac dc adapter
2.Good price:Factory direct price;
3. Timely troubleshoot problems.
4.Short lead time

Model number

ZH120A-1205000   ac dc adapter

Input

Input connecting plug

USA/EUR/UK/AU/others, C6/C8/C14/others

Input voltage

AC100-240V50/60Hz

Output

Output connector

5.5 * 2.1mm/others, 90cm/others

Output voltage

DC 3-24V  + / - 5%

Max power

60W

Ripple wave

(mVp-p):  <1%

Linear modulate

±0.5%max

Temperature coefficient

±0.02%/°C

Start time

≤3s(240VAC input,io=100%)

Guard time

≥20ms(240VAC input,io=100%)

Output standard

12V5A  ac dc adapter

Protection

Override protection

115%-200%vA,automatic recovery

short-circuit protection

1 short-circuit protection, automatic recovery

Insulation

Insulation strength

1500VAC/10mA,1MIN

Insulation resistance

≥30MΩ,DC 500V

Environment

Working temperature

-10°C-45°C,10%-90%RH

Store temperature

-20°C-60°C,10%-90%RH

Size

Size

119*53*32mm

Net weight

282g









ac dc adapter 12v 5a 60w Hot sale!

  ac power adapter

12v 5a 60w passed UL GS CE KC Spec. as following:

Output

Voltage

12 V DC

Current

5A

Output power

60W

DC cord and Jack

1.5M length 16 AWG with 5.5*2.1*10mm DC

Ripple and Noise

<120Mv at full road with 20MHz bandwidth

Input

Rated Voltage

100Vac~240Vac

Frequency Range

47Hz~63Hz

conversion efficieny

>85%

AC Cable and Plug pins

1.5M length with 2 pins EU plug, IEC C13(Male) AC socket, IEC C14(Female)AC socket and the AC cable in IEC C13 socket

Protection

Over Voltage,Load& Current /Short Circuit  /High Temp

Temperature

Operating Temperature

0°C----+60°C

Storage Temperature

-20°C----+85°C

Isolation test

Isolation voltage

Input/output terminal 3000VAC,5MA

Other

Type

Desktop

Size(mm)

140*60*36mm

Weight(g)

450g

Shell color

Black

Shell materials

ROHS approved ABS or PC

Application

can fit UK US Euroepan market ,and can been used by Bluetooth device ,CCTV camera ,and LCD minitor , mobile phone ,pos machine ,laptop ac adapter and so on

Certificate

Certificate

CE GS TUV UL/CUL FCC 3C ROHS,SAA,PSE,C-TICK

Safety Standard

EN60950-1 UL60950-1  ESD (EN61000 3-3)

CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B

AN/NZS CISPR 22:2006

1.Applications of ranges

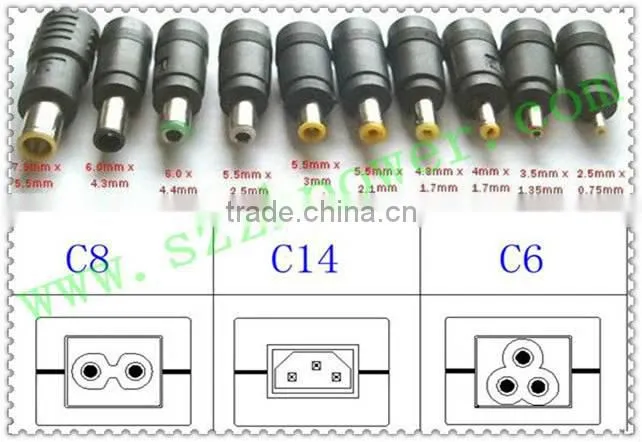

2.You can choose below DC Jack and input cable:

3.Test Equipment

4.Certificates

Amost all of our products get UL/ CE/ GS/ KC/ SAA/ 3C/ PSE/ CB/ ROHS etc

certificates, and if you have Special requirements of certificates,we can help to apply for you

5.Our working environment

Shenzhen Zhen Huan Electronic Co., Ltd.  is an excellent power solution provider, with more than

10 years' experience in R & D and production of power supplies. We are committed to provide the

highest quality products and services with the best prices and the most punctual delivery time.



Our products are 100% through high temperature ageing, which accords with UL, CE, GS, FC, SAA

 and many other authoritative organization security authentication standard. In order to ensure timely

delivery, we always keep standard product inventory. If you can't find the right type from our product

display or you can't find the right product in the market, please contact us, we will develop satisfactory

customized products for you.



We always adhere to the corporate value of "excellent quality and high efficient service" to provide you

the best service.

6.Support payment:T/T Paypal,Express DHL UPS FedEx:



Advantage
1. input voltage: AC 100-240V 50/60HZ
2. range voltage: AC 90-264V 47/63HZ
3. High efficiency and low operation temperature
4. AC input power suitable for the world
5. Soft-start current can reduce the AC input impact efficiency
6. With short-circuit and overload protection
7. Compact size ,light weight
8. 100%full-load burning test
9. Installed with EMI filter ,minimum wave

SAFETY & LEAD-FREE: UL/ CE/ GS/ KC/ PSE/ 3C/ CB/ SAA/ NOM/ROHs



Delivery time:



Packing:

white box and Standard cartons



Lead time:

7days after we receive your deposit of the order.







QUESTION





1.Q:Are you a factory or trading company?

A:We are a factory .the goods we sold were manufactured by ourselves.



2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in 3rd Floor,Building B5,JunFeng Industrial Park,Heping,Fuyong Town,Baoan,Shenzhen,China. Warmly welcome to visit us! when u arrived in shenzhen airport,pls call 139 2379 5288,we can pick you up







3.Q:Can you provide a sample to me?

A:We will provide you the a free sample for testing.







4.Q:How does your factory do regarding quality control?



A: All our products are strictly accordance with UL, CE and RoHS standards.



100% burn-in testing for at least 2 hours .







5. Q: Why choose us?



   A: We can provide you high quality products with competitive price,and the products are suitable for you.



   Then help you satisfy your customers and keep your customers, to make you stronger in your market.











6. Q: What is your warranty?



   A: 1 years warranty will be offered .
