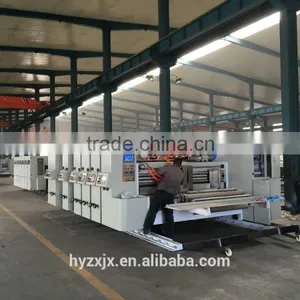

High Speed Automatic Carton Box Flexo Printer Slotter Die Cutter Machine
US$ 100000.00 - 160000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Automactic Carton Box Printing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Carton Box Flexo Printing Slotting Die Cutting MachineUS$ 15,000 - 22,000MOQ: 1 Set -
Automatic High-speed Flexo Printer Slotter Die-cutter Stacker MachineUS$ 100,000 - 500,000MOQ: 1 Set
-
Automatic Carton Printing and Slotting Die-Cutting MachineUS$ 55,000 - 80,000MOQ: 1 Set
-
Carton Printing and Slotting MachineUS$ 13,000 - 20,000MOQ: 1 Set
-
Carton Box Rotary Die Cutting MachineUS$ 8,500 - 10,000MOQ: 1 Set
Type
Automactic Carton Box Printing Machine
Computerized High Speed Flexo Printing Soltting Die Cutting Machine
Main function
- Carton machine keep the functions of intelligence zero returning, memory reset and automatic order formation,9999 order memory.
- Dual system of touch screen man-machine interaction and manual electrical control.
- The complete set of machine is operated computerized upon the designing principle of man-machine integration. It can do the job of setting, correction, execution, change and memory, etc. on the touch screen with precise data display in the shortest time.

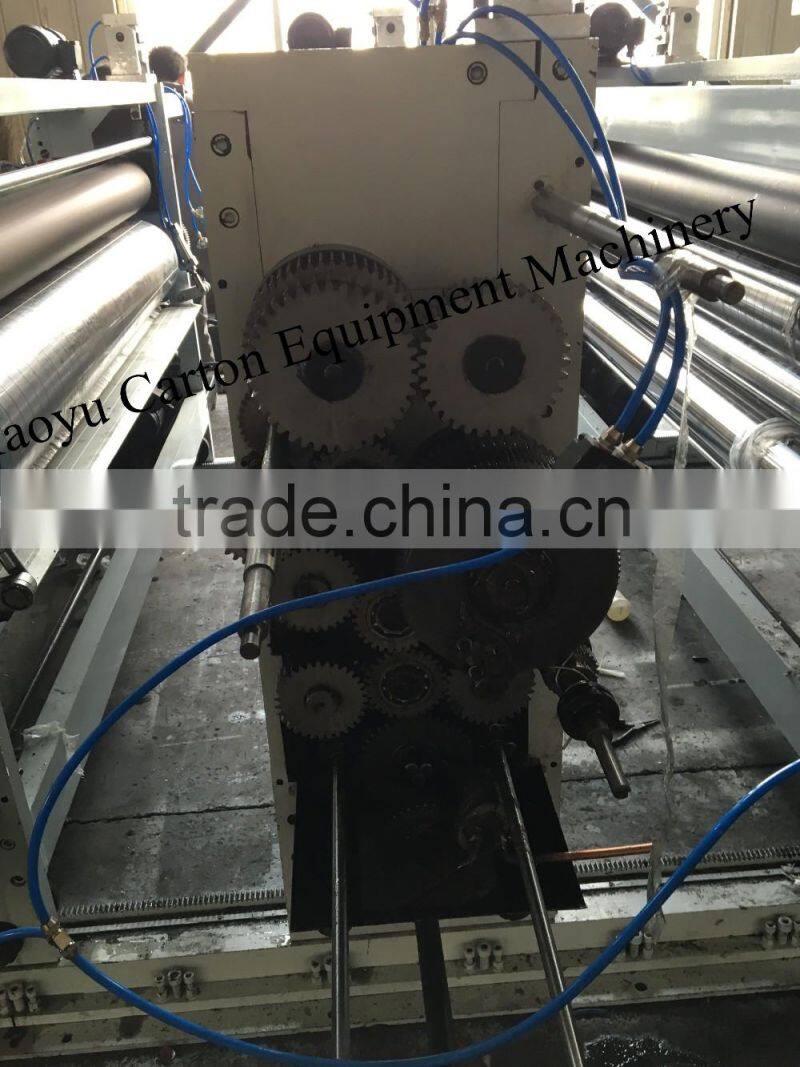

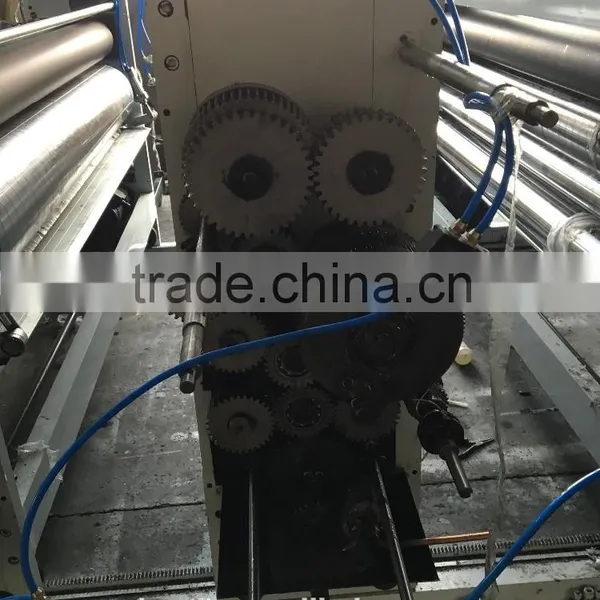

- Transmission gears are made of high-quality alloy steel 20CrMnTi. The Rockwell hardness of the gears can get to 60 degree and more after the process of carburization quench and fine grinding.
- All rolls and shafts are chrome plated to enhance the hardness.
- Apply the joining with non-keypiece so as to decrease the connection gap and keep long term register accuracy.
- Servo control Lead edge feeder--patent #ZL2005 2 0045628.x Servo motor-quick react, precision positioning, system stability and durability. Electrical camshaft supersedes mechanical style;
- Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel;lx608c
- Pressure-free stretching feeding mechanism is the option;
- Carton box making machine prices are very good, carton machine are made in better quality.

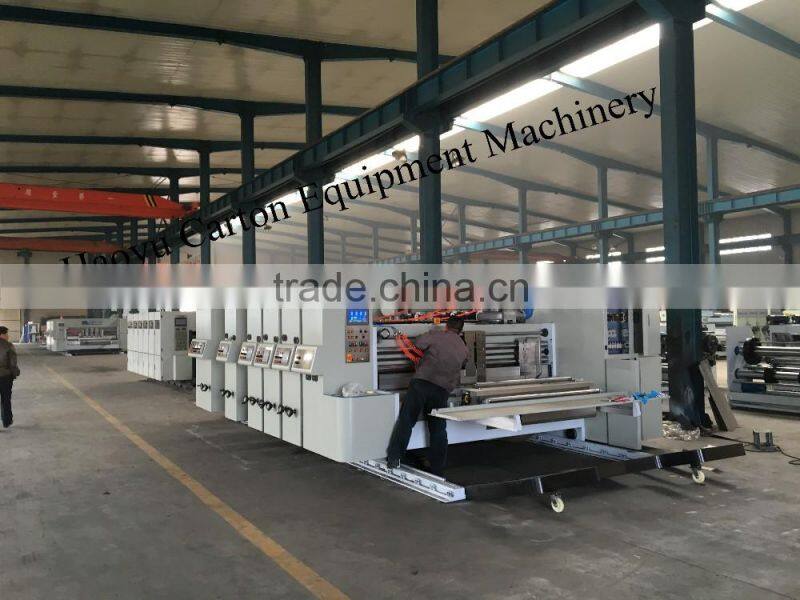

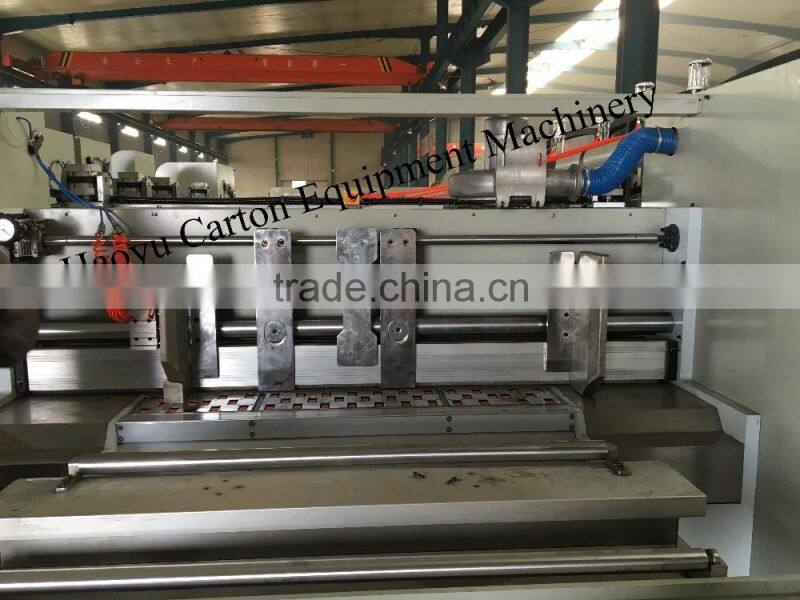

1.Feeding unit
- Dynamic and static balance correction ensure stable running.
- Carton box machine adopts hanging mechanism for easy and instant printing plate mounting.
- Loading and unloading of the printing plate motorized turn positive and reverse by pedal switch..
- Pressurized automatic lifting device working in with the feeding systerm
- Planetary gear phrasing mechanism.
- Printing phase adjustment by PLC, touch screen control and motorized digital 360 degree. Printing cylinder keeps the function of zero return and can reset in dynamic and static condition.
- Motorized digital display adjusts the transversal position of the printing cylinder within the range of 20mm...lx608c
- Printing phase fixing mechanism with electromagnetic clutch. During the machine unit movement or phase adustment, the braking-mechanism stops the run of the machine unit and keeps the primary printing position.

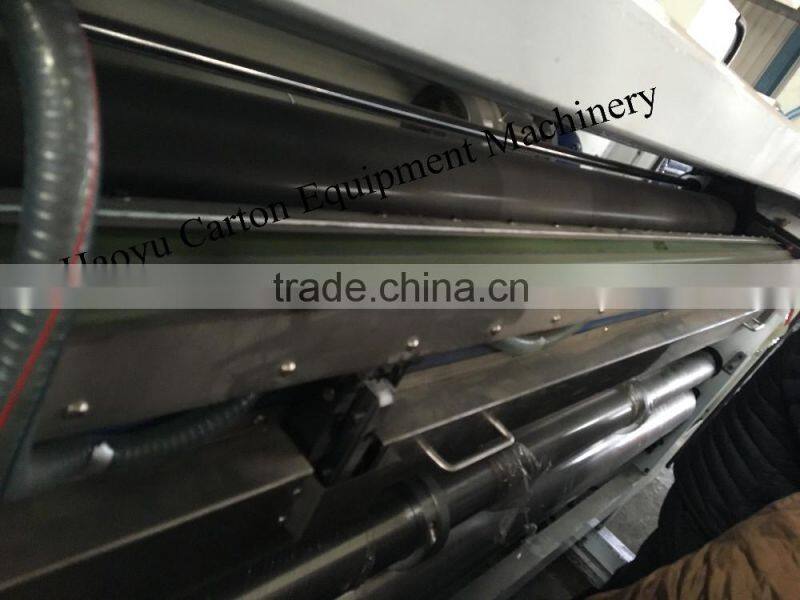

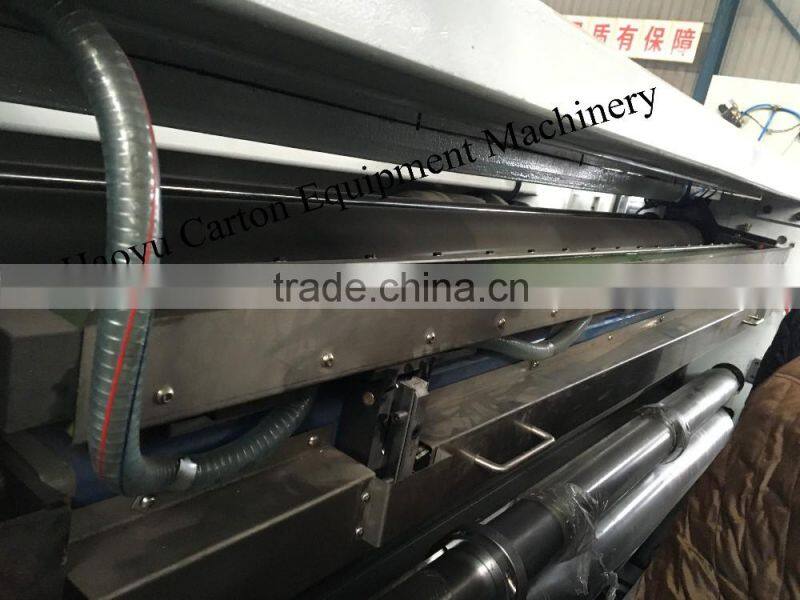

2. Printing unit
- Steel anilox roll for option: chrome plated and engrave reticulate pattern with consistent net dots good for fine inking.
- Ceramic anilox roll: ceramic coated on the steel pipe surface and reticulate pattern laser engraved after fine regrinding is endurable.
- Steel pipe coated by antifriction rubber. Specially and finely reground crown is good for ink transmission.
- Stainless steel ink bucket with ease to clean and mainternance.
- Pressurized diaphragm pump makes ink supply stable and with ease to maintenance.

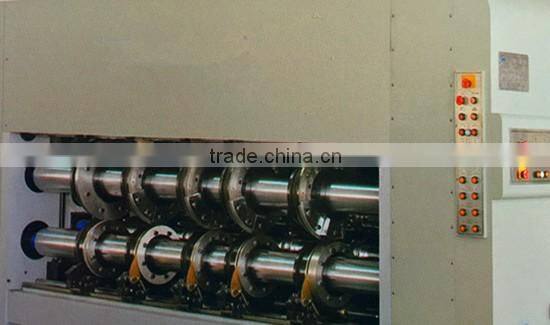

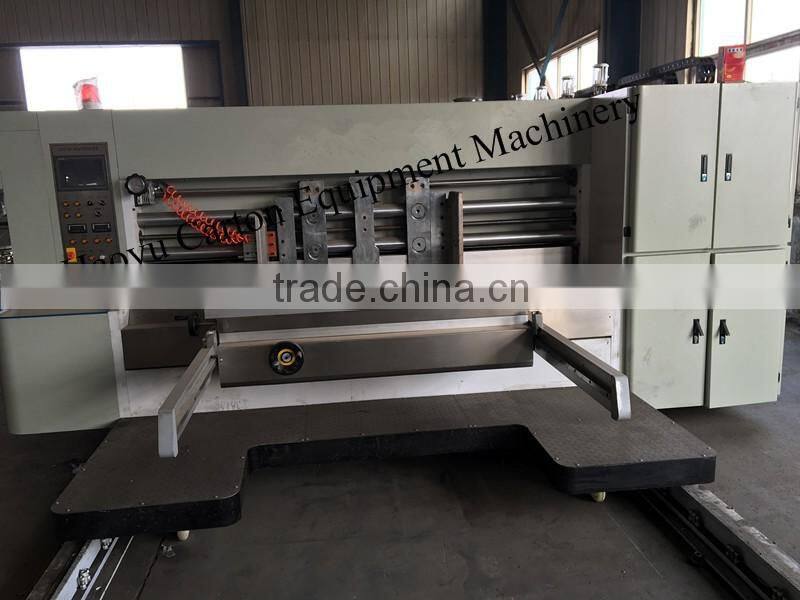

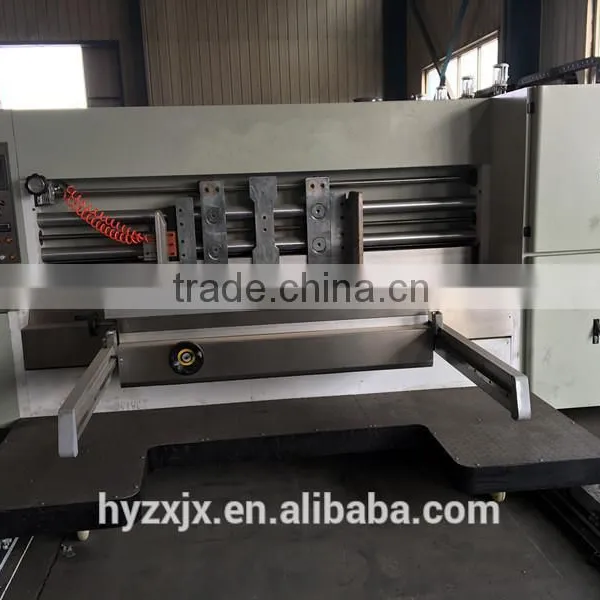

ltting unit
- Pre-scoring wheel: Pre-scored paperboard will not crush
- Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
- 7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground, sharpened endurable teeth
- Bi-plate trimming knives with sharpened, endurable teeth
- Aluminium hand hole punch device

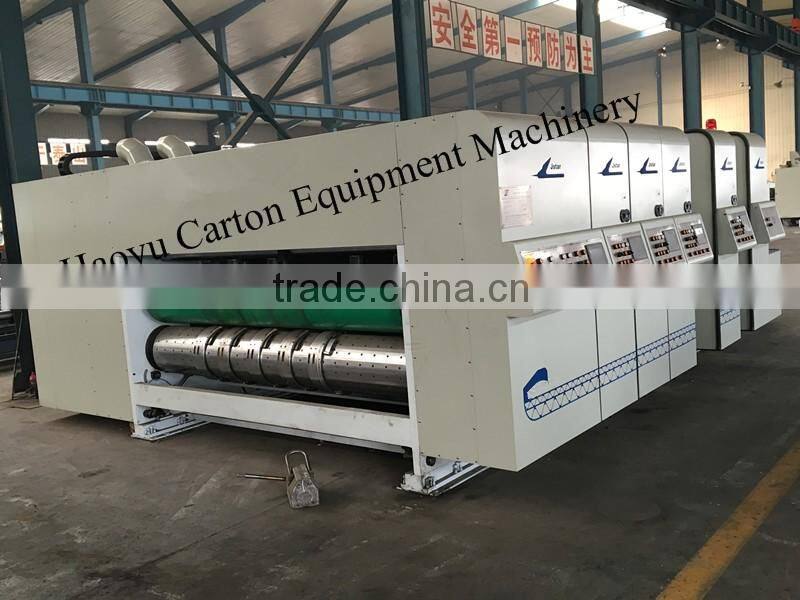

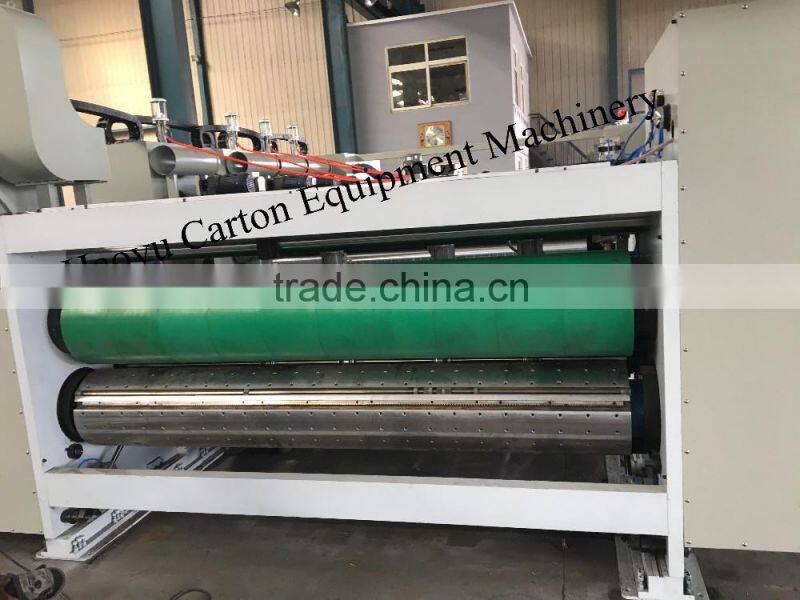

4.Die cutter unit
1.Cushion roll ,template roller adopts quality steel dater dynamic balancing correction, to increase operational stability.
2.By not die-cutting state template roller and cushion roll will through a cylinder eccentric device automatically disengaged, that can reduce the machine-load when no load ,and effectively extend the life of urethane and knife mold.
3.Mechanical transmission urethane can move around ±30mm ,and with aradial differential device, evenly distributed the wear of cushion roll and thus greatly increase the life of cushion roller
4.Unique differenial speed compensation device ,regardless the diameter change of cushion ,speed difference compensation device makes urethane roller slide with the template roller ,and thus the surfac speed of rubber pad completely manipulated by knife mold ,so die-cut carton is exactly the same as the mold.
