Type Automatic Carton Folder Gluer Machine For Lock-Bottom Paper Box



Automatic Carton Folder Gluer Machine For Lock-Bottom Paper Box

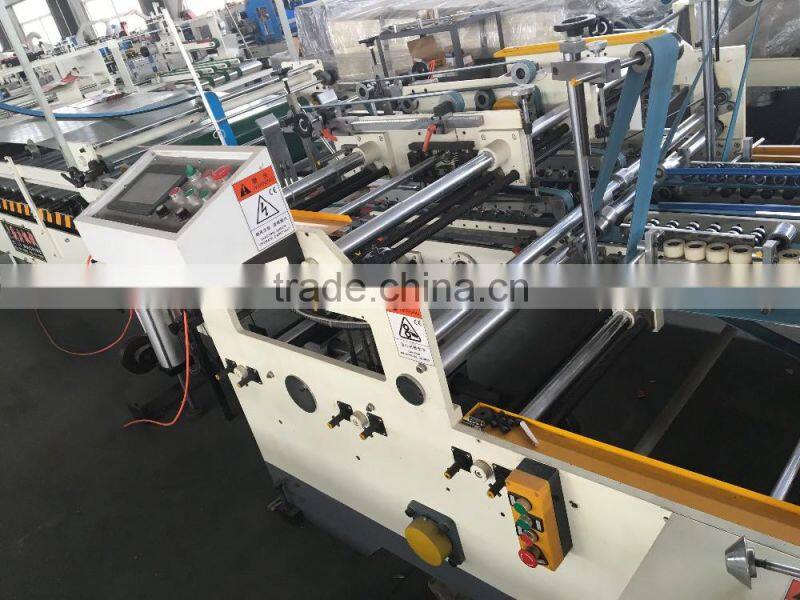

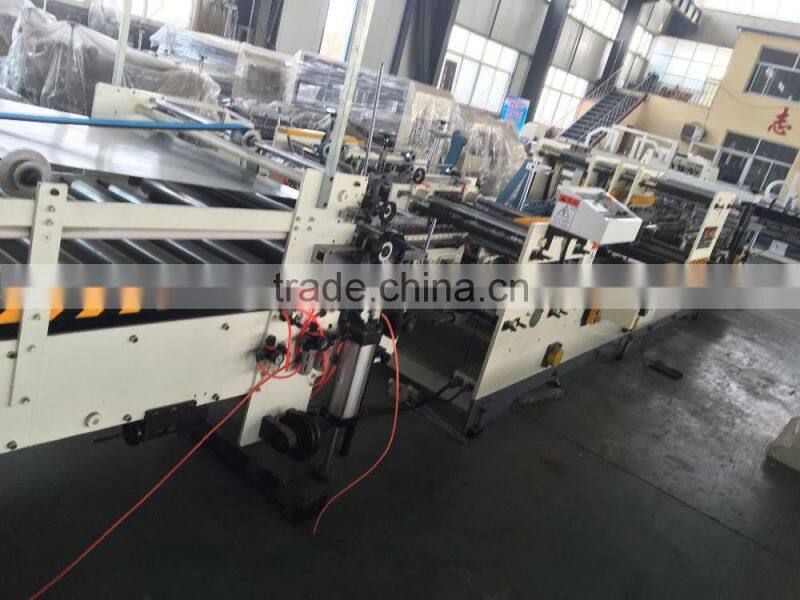

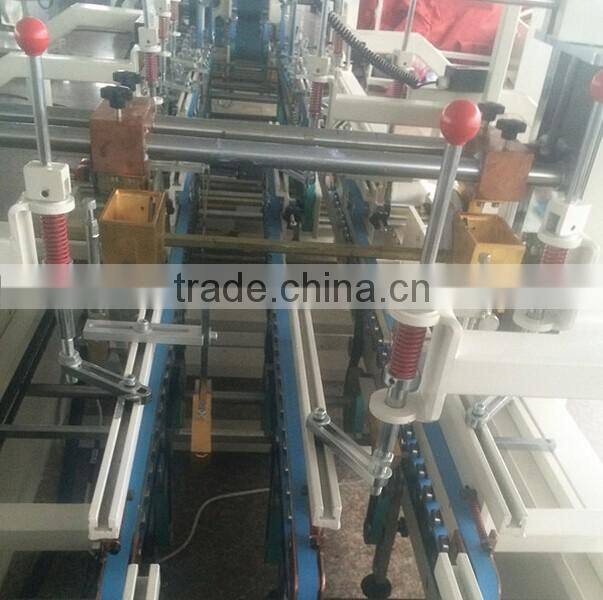

High speed Automatic Carton Folder Gluer Machine For Lock-Bottom Paper Box /prefold carton box folder gluer





Specifications

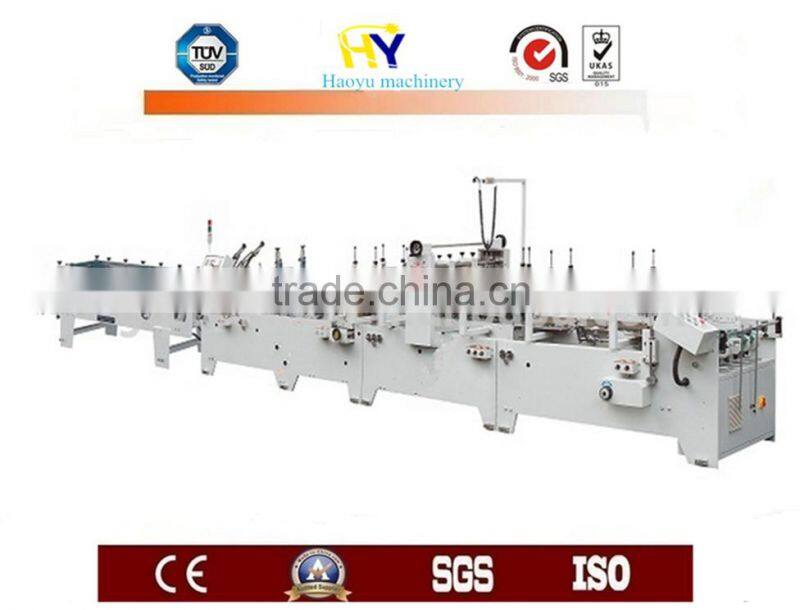

Package machinery SHH-AG model is a kind of new type economic pre-fold lock-bottom high speed



automatic packaging machine with nice appearance and easy use. In the pre-folding part, the first fold



and the third fold can be exchanged by 180 degree and 150 degree. The second fold and the fourth fold



can be molded in 180 degree; the special design is also available. It is more economic and



practicality.Can be used tovarious kinds of lock-bottom and non lock-bottom boxes,such as medicine



box,wine box,cosmetic box.    Technical Parameters







Characteristics





HY-600AG

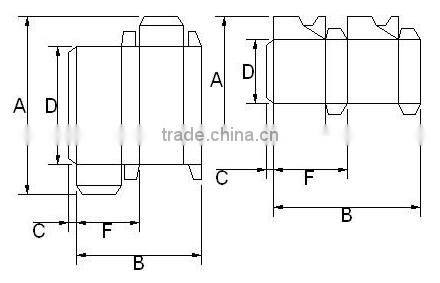

Type of box A max A min B max B min C min D min F min
No-edged bottom box 700mm 70mm 600mm 110mm 8mm 70mm 51mm
Edged bottom box 700mm 160mm 570mm 180mm 9m 90mm 85mm





HY-800AG
Type of box A max A min B max B min C min D min F min
No-edged bottom box 700mm 70mm 800mm 110mm 8mm 70mm 51mm
Edged bottom box 700mm 160mm 770mm 180mm 9m 90mm 85mm





Technical Prameter







Linear velocity
0~220m/min
Suitable paper quality
220 ~800gm² paperboard ,E flute corrugated board
Paste box basic form
One-side edge pastes, two-side edge pastes.
Feeding way
Automatically and continuously feeding
Adhesive
Solute type
Needed power
AC380v 7 KW
Weight
2600KG
Overall Size
9000 ×1100(1300)× 1350mm
The scope of Count
0~999999
