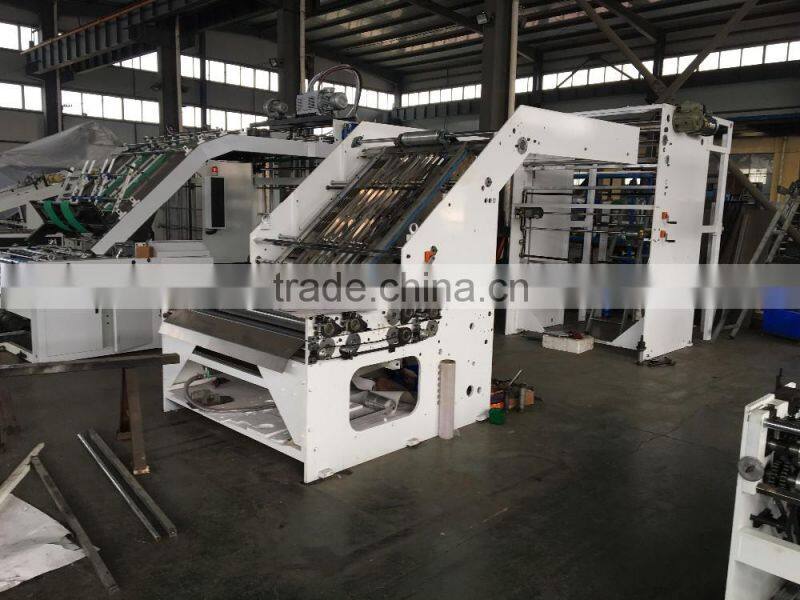

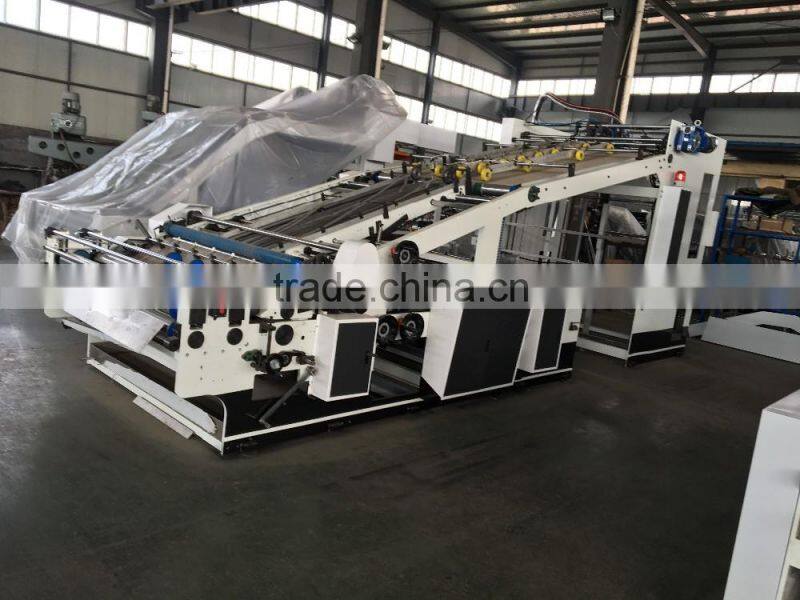

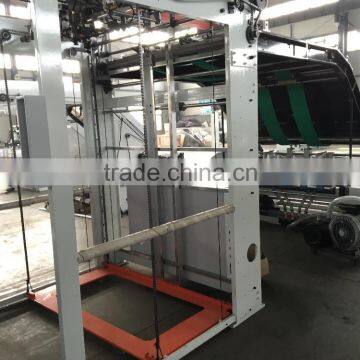

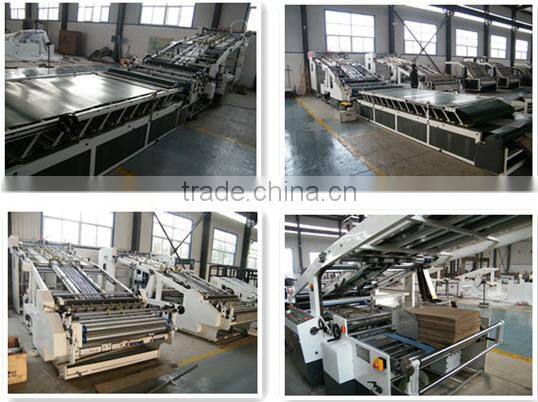

High Speed Automatic Flute Laminator
Description:
Laminating machine, for printing corrugated cardboard and the quick fitting tool, the whole machine is
designed by the two automatic feed machine (that is, the sending machine and corrugated printing
machine delivery),a set of adhesive fittii host And the lamination conveyor components for corrugated E, B corrugated, A corrugated paperboard laminating afid printing laminating, paper and paperboard can be laminated paperboard,processing equipment for the printing process. the operation of precision, fast response and efficient operation Energy unit.
Specifications:
Model |
HY1450 |
Max.Sheet(W*L) |
1100mm*1450mm |
Min.Sheet(W*L) |
350mm*500mm |
ing width |
1450mm |
Cardboard thickness |
200~600gsm |
Max.feetding speed |
6000 p/hour |
Dimension(L*W*H) |
12750mm*2900mm*2800mm |
Total weights |
6000kgs |
Total power required |
14.8kw |
Features:

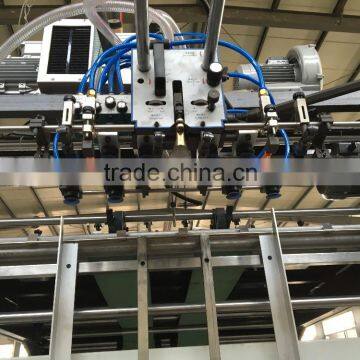

1.Uper Feeder(For Cardboard)
· Consisting of stream feeding suction head.
· Four sets of forearding sucker ensuring smooth transportation of substrate.
· Emergency stop control for double sheet detection ,a missed sheet or misaligned shet.
2. Bottom Feeder (For Corrugated Board)
· Bottom feeding for easy operation.
· Equipped with six suction belts for accuracy.

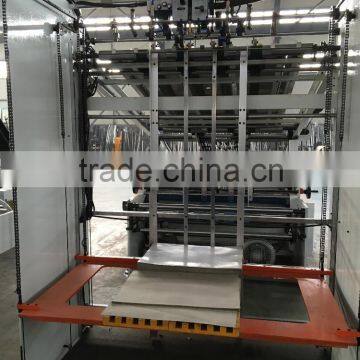

3.Feeder Table
· Employ a spring type side guide system to control and transtfe the substrate.
· Push type front guides for efficient feeding.
· Micro adjustment for registration and accuracy of lamination of two sbustrates, providing excellent registration.

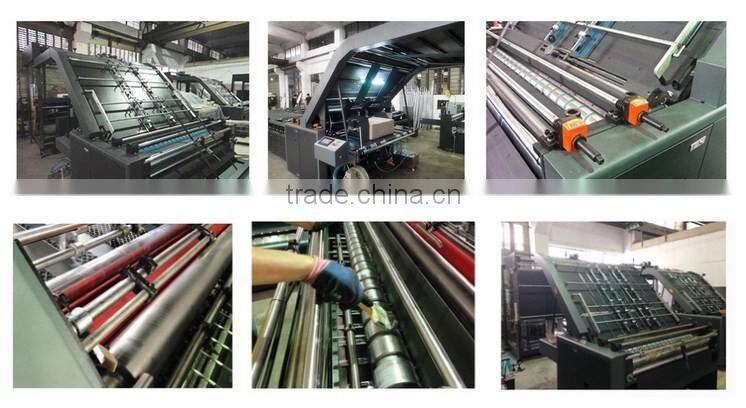

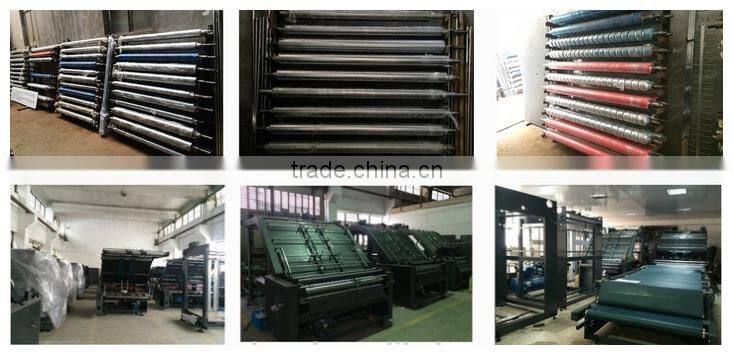

4.Laminating Unit
· Two sets of rollers are used to achineve overall eveness of presure. Consistion of two precisely constructed
rollers to achieve a cpnsosternt pressure for E-flute, B-fulte and A-fulte lamination. · Precisely constructed adhesive and metering rollers for accurate level and consistent application
· Couner pressure and doctor rollers are chrorned of durability
Extended pressure conveyer or belts ensure flat larnination of the substrates.

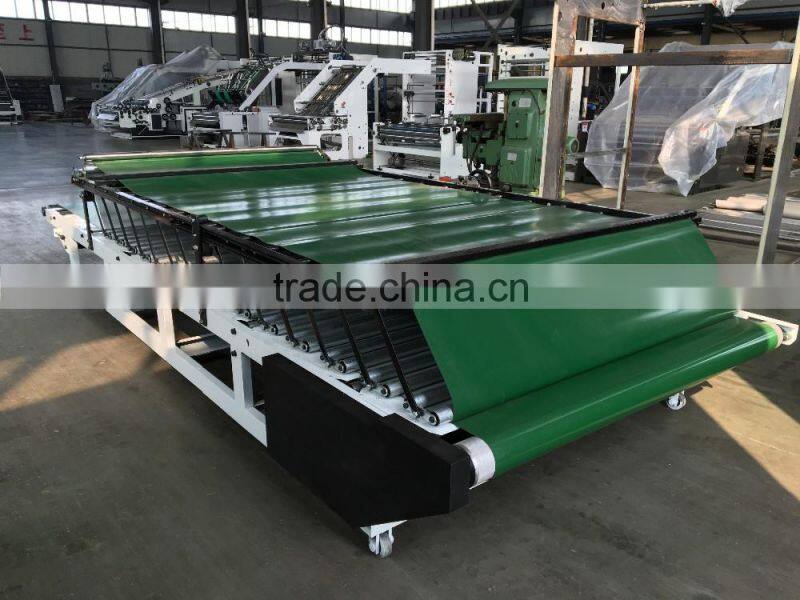

5.Pressure Conveyor
