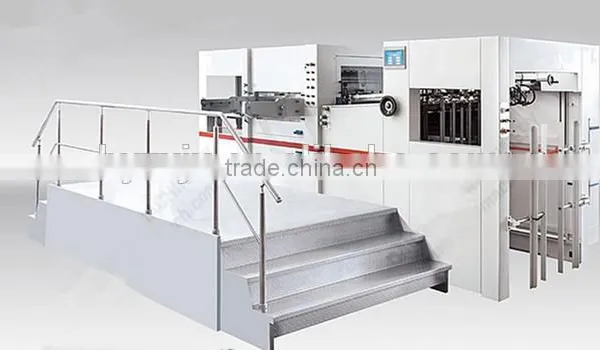

Automatic Die Cutting and Creasing Machine
US$ 50,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Automatic die cutting and creasing machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Performance Automatic Die Cutting and Creasing MachineUS$ 50,000 - 80,000MOQ: 1 Set -
1050 Automatic Die Cutting and Creasing MachineUS$ 50,000 - 80,000MOQ: 1 Set
-
Automatic Flat Bed Die Cutting Machine With Heating SyestemUS$ 48,000 - 80,000MOQ: 1 Set
-
Auto Flat Bed Die Cutting Machine/ Automatic Platen Press Hot Foil Stamping and Die Cutting MachineUS$ 45,000 - 80,000MOQ: 1 Set
-
High Speed Flat Bed Automatic Corrugated Paper Die Cutting MachineUS$ 45,000 - 80,000MOQ: 1 Set
Type
Automatic die cutting and creasing machine
Die cutting and creasing machine
Features:
- Automatic die cutting and creasing machine.
- Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.
- Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately and reduce the occurrence of failure rate.
- The whole machine all uses SKFNSK imported original bearing.
- The whole machine uses original parts imported from France Schneider, and Japanese OMRON, etc.
- Key parts of teeth row are imported from Japan.
- Die cutting accuracy reach to ±0.1mm, and the highest speed of machine reaches 7500 sheets/hours.
- The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.
- Use the centerline positioning system to realize fast plate changing of worksheet.
- Equipped with automatic adjustment device, ensure fast and smooth when they adjusting of die cutting pressure.
- Die-cutting plate frame adopts auxiliary plate-installation device, to realize different of model machines can be use universal die-cutting plate.
- Equip with touch-screen operation interface in both Chinese and English.
- All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.
Specification
Model |
Unit |
HY-1060 |
HY-1080 |
|
Max. paper size |
mm |
1060*760 |
1080*780 |
|
Min. paper size |
mm |
400*350 |
400*350 |
|
Max. die cutting szie |
mm |
1050*750 |
1070*770 |
|
Gripper margin |
mm |
9-17 |
9-17 |
|
Inner chase size |
mm |
1120*786 |
1120*786 |
|
Max. die cutting pressure |
N/cm2 |
300 |
300 |
|
Available cardboard |
Ordinary paperboard |
gsm or mm |
90-2000 or 0.1-2 |
90-2000 or 0.1-2 |
|
Corrugated cardboard |
mm |
≤4 |
≤4 |
Die cutting precision |
mm |
±0.1 |
±0.1 |
|
Max. die cutting speed |
sheets/h |
7500 |
7500 |
|
Max. feeding height |
mm |
1600 |
1600 |
|
Max. collecting height |
mm |
1400 |
1400 |
|
Total power |
kw |
16.9 |
16.9 |
|
Weight |
T |
15 |
16 |
|
Overall dimension(L*W*H) |
mm |
6800*4300*2310 |
6800*4300*2310 |
|

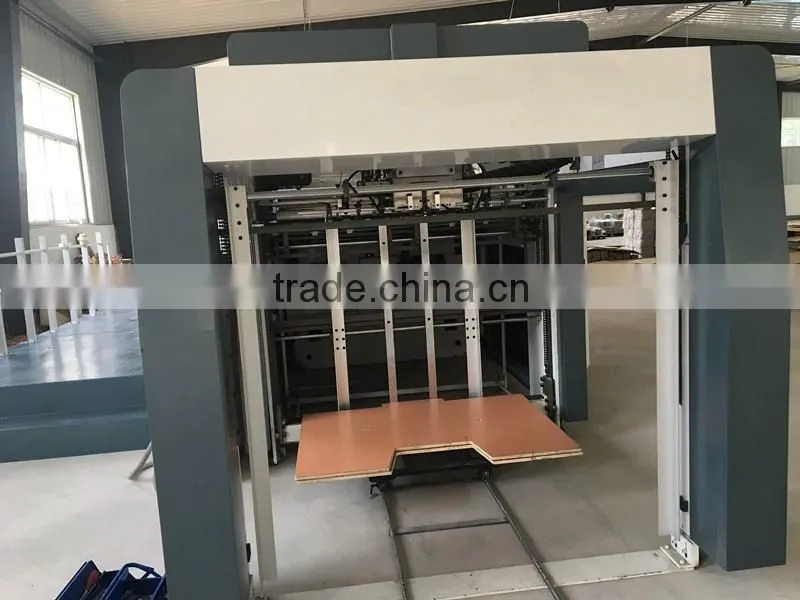

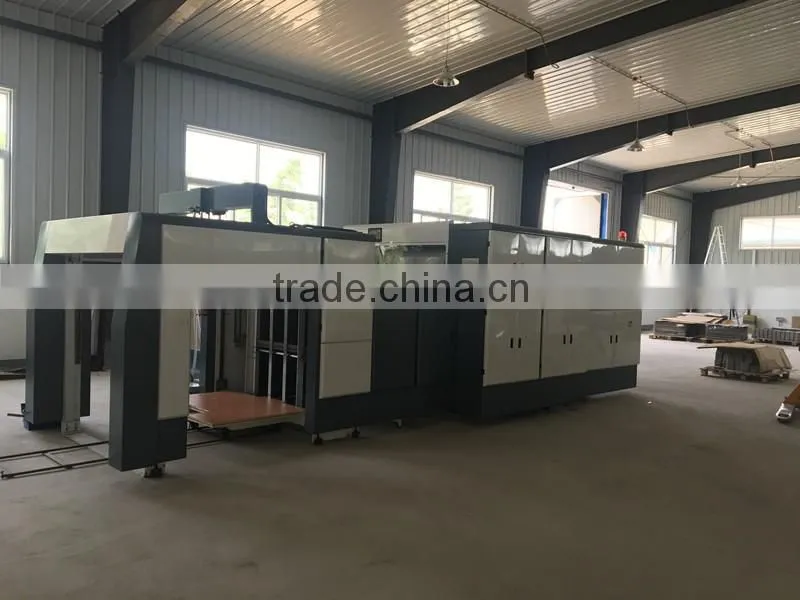

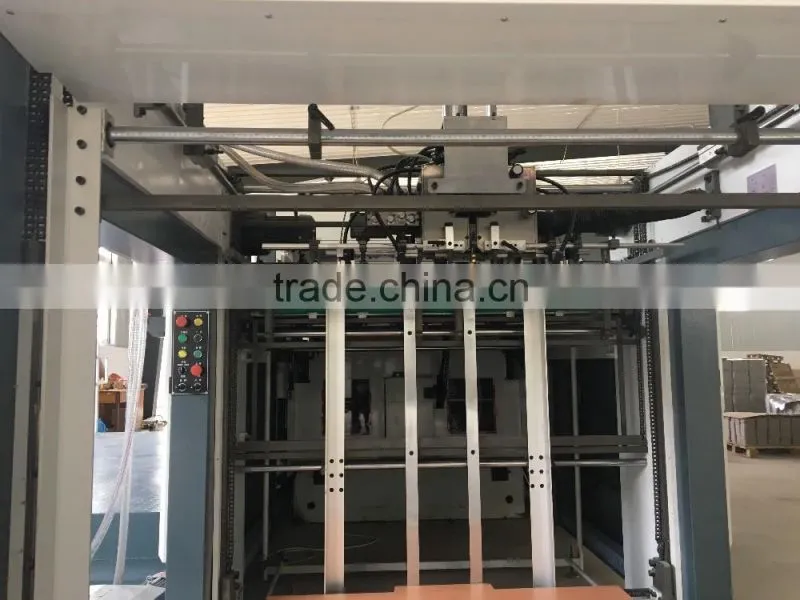

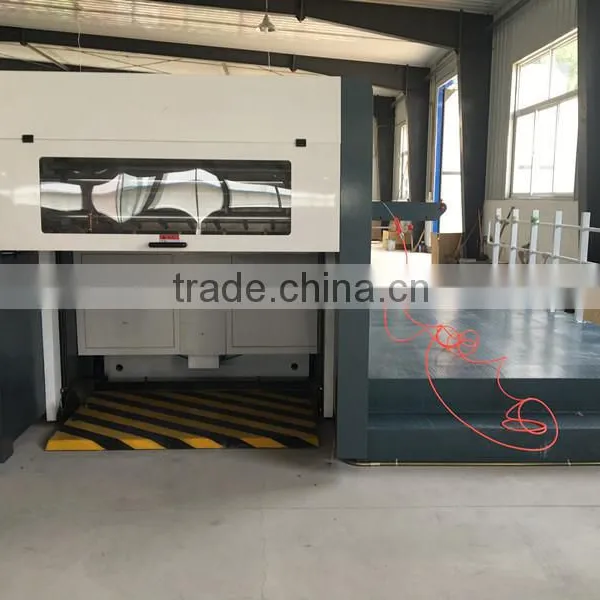

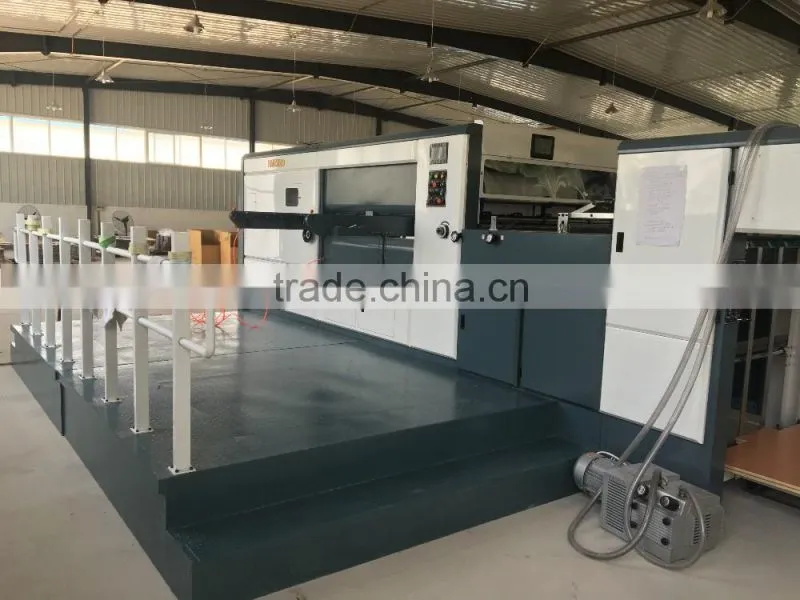

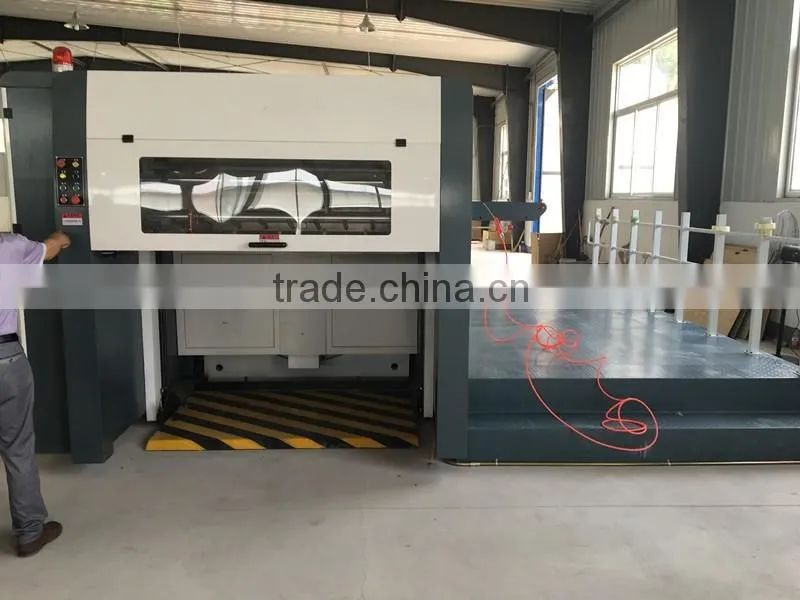

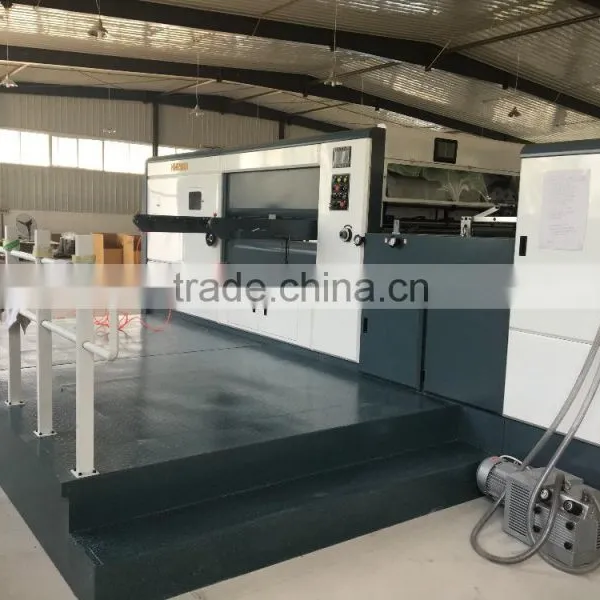

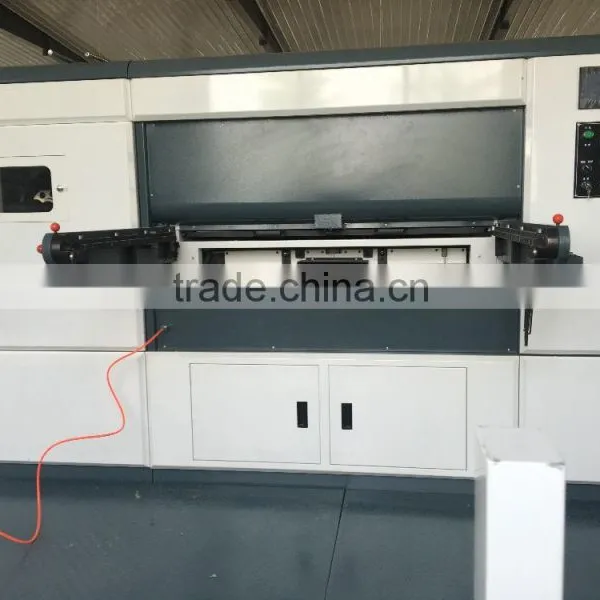

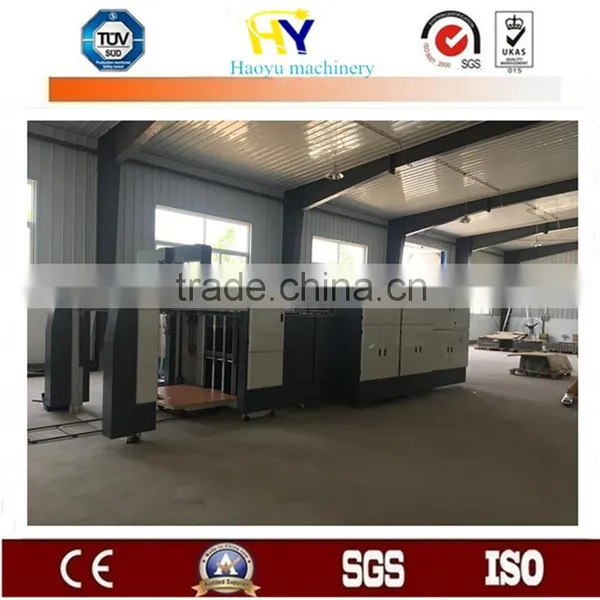

More Picture
