Elite Ceramics Industrial Co., Ltd founded in 2004 is a professional enterprise in manufacturing series of honeycomb ceramic products. Honeycomb extruded ceramic filters for the filtration of dross, slag and other non-metallic inclusions from molten metals.

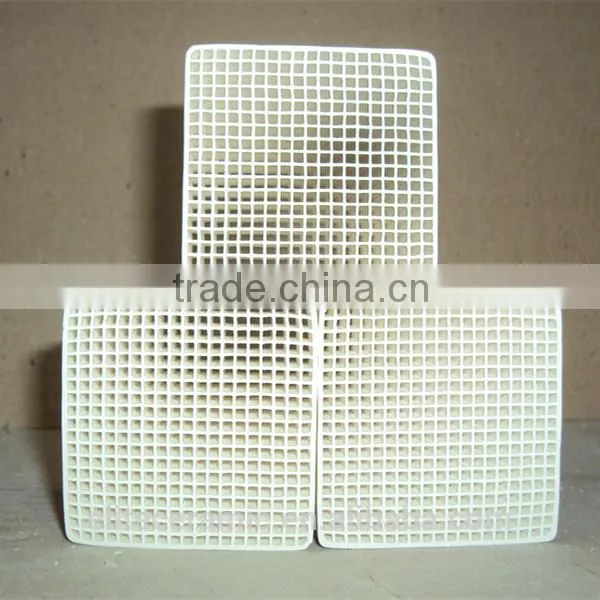

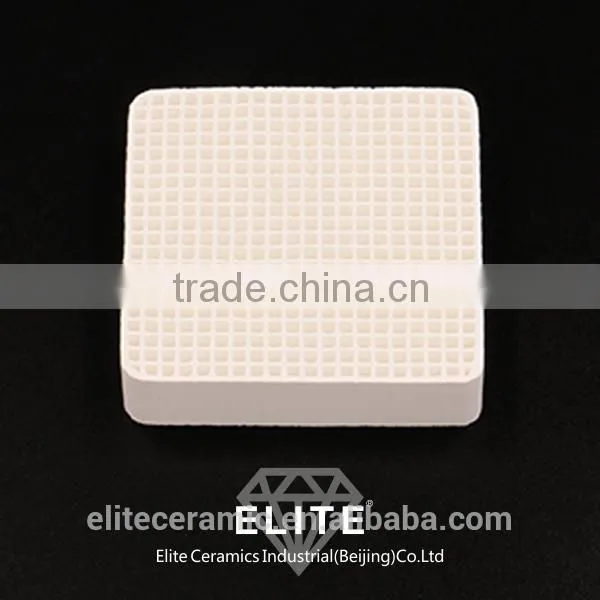

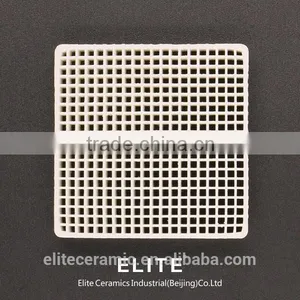

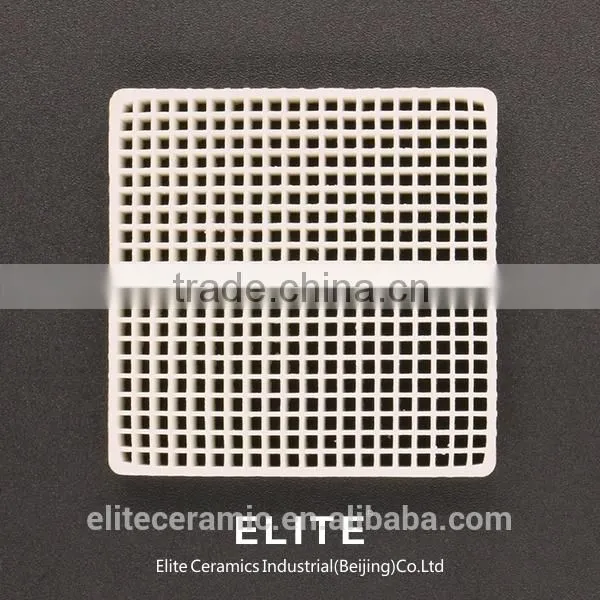

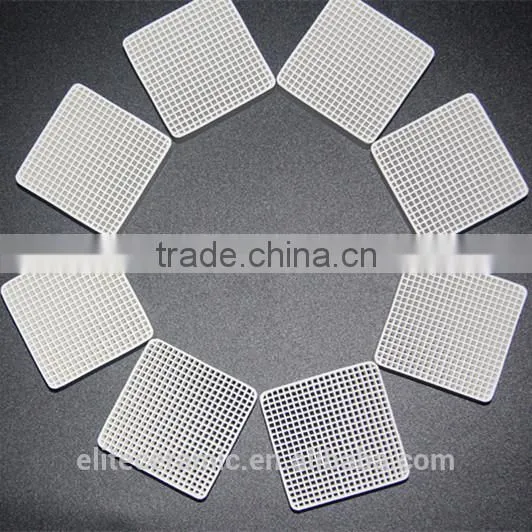

The performance of Elite ceramic filterv 50×50×12.5/100csi
.
1_Purify metal liquid and get ride of non- metal impurity and gas.
2_Make the filling type of the metal liquid steady and reduce the swirl.
3_Simplify the pouring system and improve the producing rate.
4_Reduce the air vent of castings and optimize and thin out metal organization. 5_Improve surface quality of castings and mechanical performance.
6_Reduce the rejection rate of castings, reduce the surplus of processing, raise the life span of the cutter and reduce casting cost.
|
Specification mm |
Aperture mm |
Material |
SiO2 % |
Al2O3 % |
MgO % |
Refractory ℃ |
Pouring temperature ℃ |
50×50×12.5 |
2.0×2.0 |
50% Mullite 50%cordierite |
36-38 |
53-55 |
6-7 |
1600-1700 |
1300-1450 |
| |||||||
|

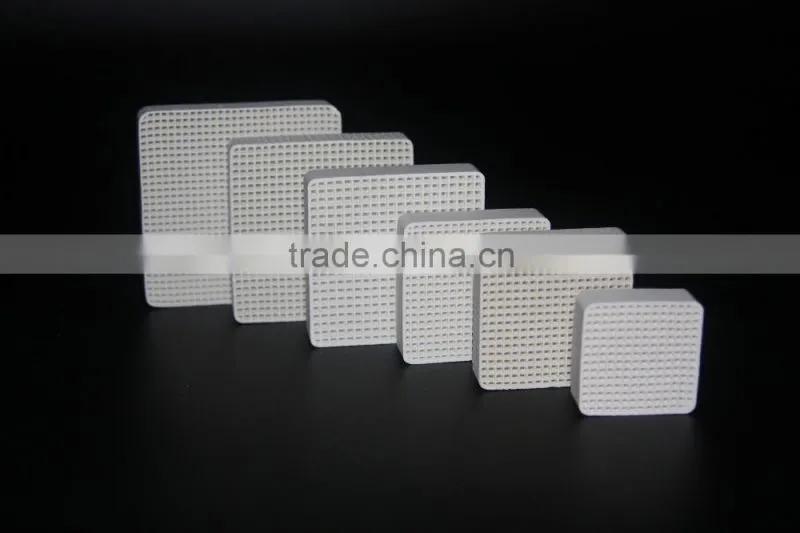

Different sizes of filters.
