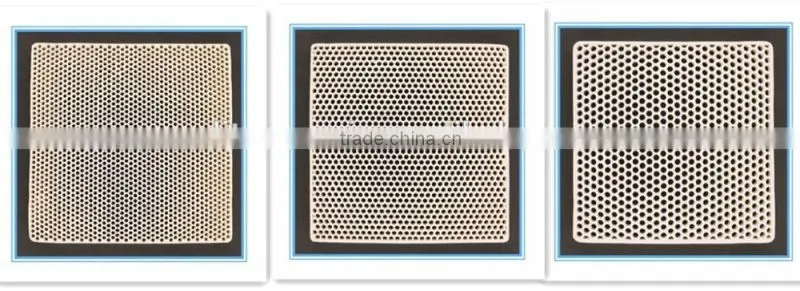

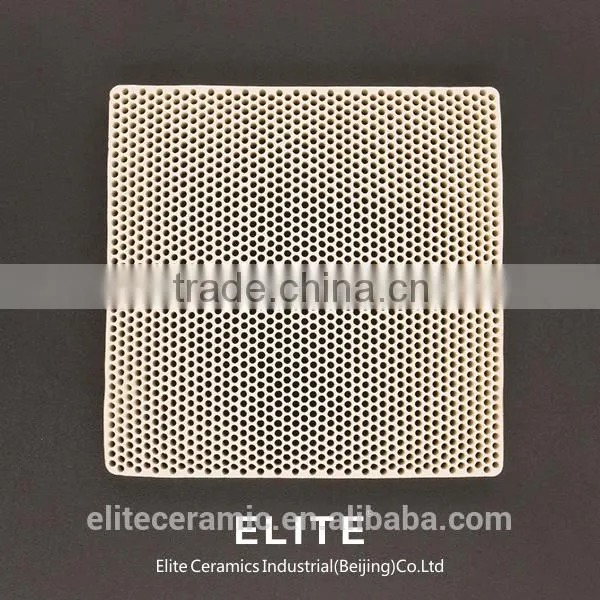

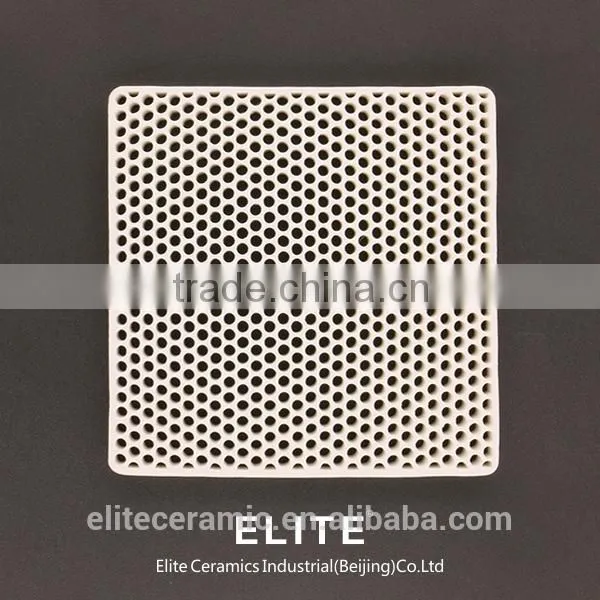

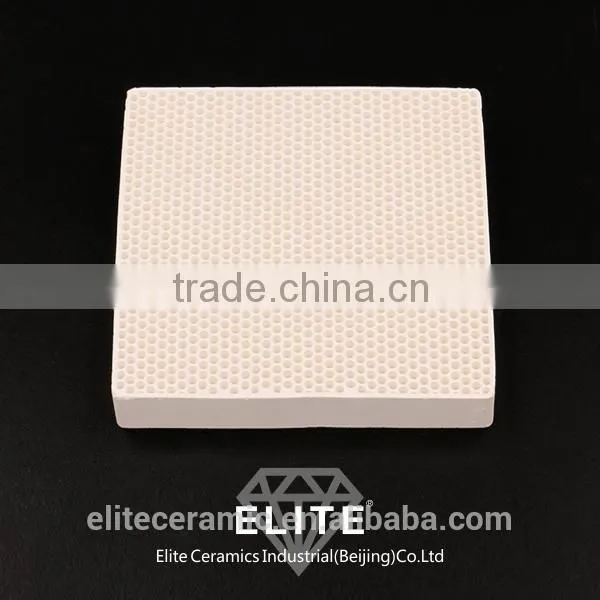

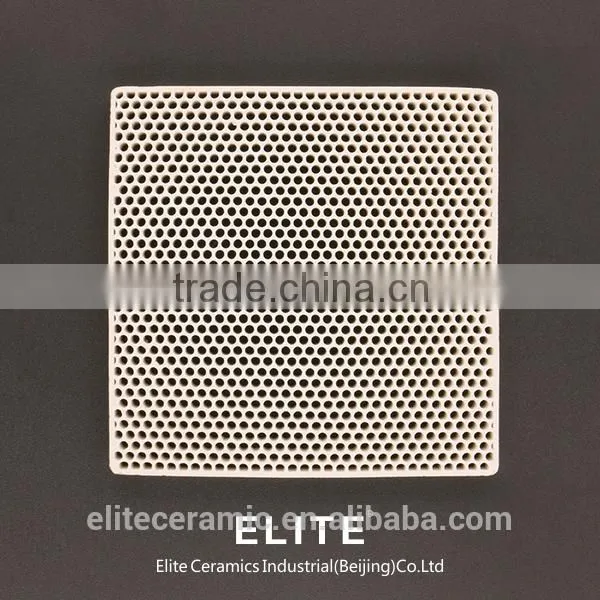

Help Center81.8*81.8*12.7 Round Hole Ceramic Filter for Grey Ductile Iron Casting , Porous Filter
Related Products
-
75*75*12.7 Round Hole Extruded Honeycomb Ceramics Parts, Honeycomb Filters for Iron CastingNegotiableMOQ: 1 Cubic Meter -
70*70*20 Round Hole Honeycomb Ceramics for Metal Filtration Ceramic Filters for Casting FoundryNegotiableMOQ: 1 Cubic Meter
-
66.8*66.8*12.7 RD1.8 Honeycomb Ceramic Filter Plates Raising Life Span of CastingNegotiableMOQ: 1 Cubic Meter
-
55*55*12.5 RD2.3Mullite Honeycomb Ceramic Filter Plates Improving Casting Mechnical PerformanceNegotiableMOQ: 1 Cubic Meter
-
60*60 Honeycomb Ceramic Filters for FoundryNegotiableMOQ: 1 Cubic Meter
Honeycomb extruded ceramic filters for the filtration of dross, slag and other non-metallic inclusions from molten metals.
|
Specification mm |
Aperture mm |
Material |
SiO2 % |
Al2O3 % |
MgO % |
Refractory ℃ |
Pouring temperature ℃ |
81.8×81.8×12.7. |
RD1.5 |
50% Mullite 50%cordierite |
36-38 |
53-55 |
6-7 |
1600-1700 |
1300-1450 |
|
RD1.8 RD2.5 |
The performance of Elite ceramic filter.
1_Purify metal liquid and get ride of non- metal impurity and gas.
2_Make the filling type of the metal liquid steady and reduce the swirl.
3_Simplify the pouring system and improve the producing rate.
4_Reduce the air vent of castings and optimize and thin out metal organization. 5_Improve surface quality of castings and mechanical performance.
6_Reduce the rejection rate of castings, reduce the surplus of processing, raise the life span of the cutter and reduce casting cost.
Elite company have various specifications size of straight hole ceramic filter which is suitable for casting industry demand of different pouring temperature and casting speed.
The products is widely applied in high precision and complicated shape casting,such as engine cylinder block,cylinder head,transmission,or heavy steel,alloy steel parts,or key components of the copper alloy,aluminum alloy.
With more than ten years experience,the technology of ceramic filter is more and more mature, and the production quality is more and more excellent and stable.
Almostly, fifity percentage of our products are exported to Europe,America,India ect. oversea markets
Elite company honour : access to quality certification ISO 9000 Quality Test.
In the picture
the moist flan will be put into microwave oven to expel the hydrate part, then the moist flan will be well shaped and not distorted. and then well dry shaped flan will experienced wholly heat wind dry.
the workers are picking and choosing qualified ceramic filters.
Qualified products are being putting into cartons.
The cartons on the pallets.
