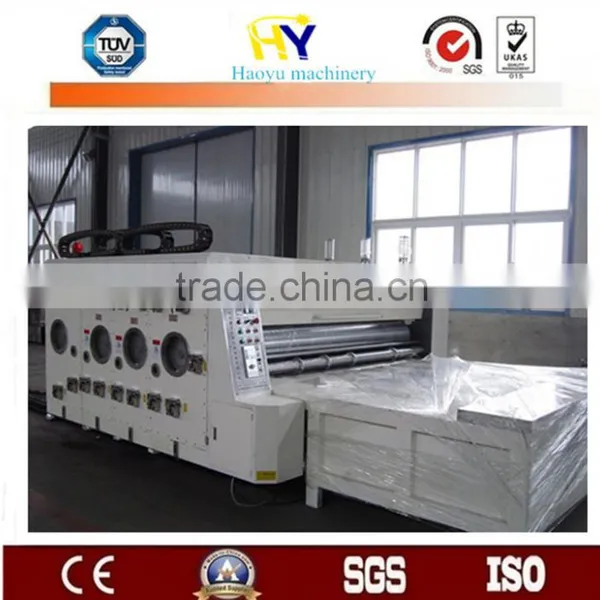

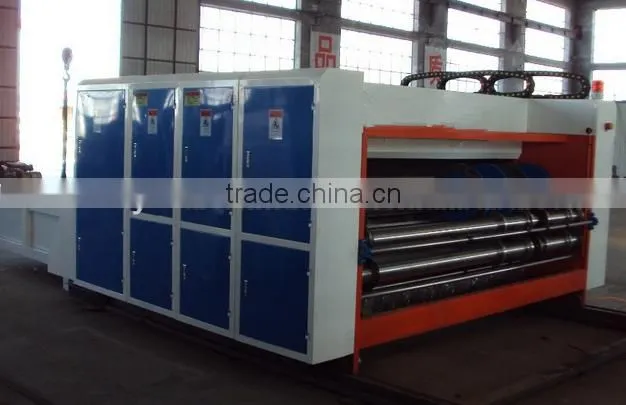

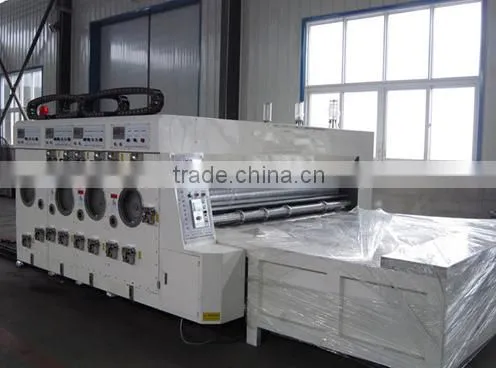

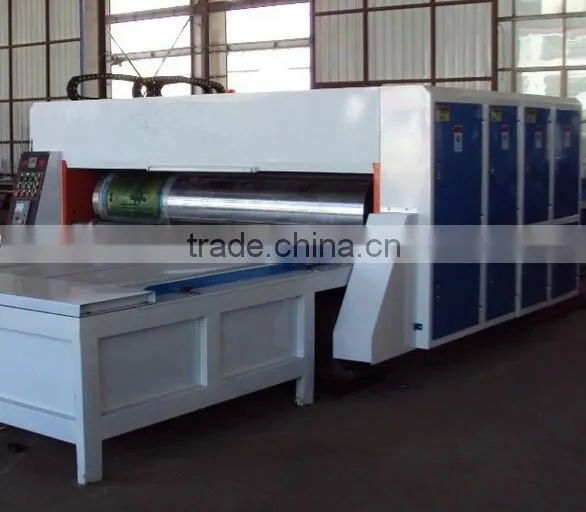

Corrugated Paper flexo printing and slotter machine
Functions and Characteristics:
1. Paper feeding is completed at one time with chain: double color printing, slotting, corner cutting, impression and trimming deflashing etc. and the cardboard can be nailed and made into box directly when it is out.
2. Chain semi-automatic paper feeding is used for feeding paper desk, so with the rational structure, it is convenient to operate.
3. The electronic counter is used with accurate reflection of production.
4. The motor unit is displaced electronically, and the alarm lamp will flash when it is automatically locked or displaced.
5. The inking roller is ascended and descended pneumatically, and the raised plate ink distribution structure prevents ink from drying.
6. Pneumatic diaphragm pump with automatic circulation, automatic cleanout as well as automatic inking up.
7. Adopt electric drive planet wheel phase adjustment, the 360°positive and negative adjustment can be achieved no matter it is running or stopping.

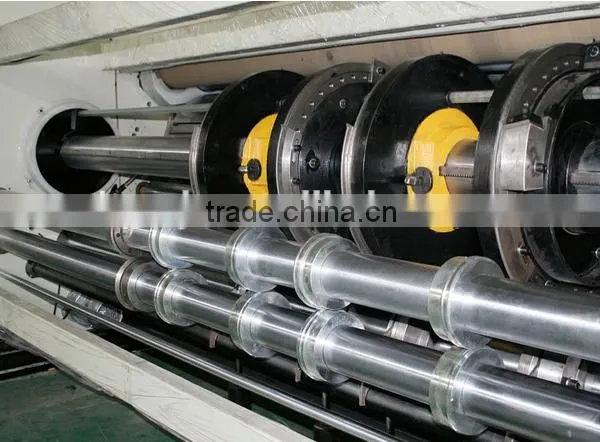

8. Back slotting knife, four knives linkage mechanism, it is more rapidly to adjust the knife.

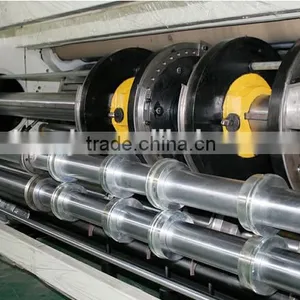

9. For the slotted knife, high grade alloy steel thermal treatment sawtooth crescent slotted knife is chosen, so it has high rigidity, good toughness and strong abrasion resistance.
10.Gear spraying lubrication oil supply system will reduce device noise and prolong the operation life of gears.
Specifications :
| S/N | Parameter | Unit | Model | |||
| 910-2000 | 1500-2600 | 1500-2800 | 1500-3000 | |||
| 1 | Machine inner width | mm | 2000 | 2600 | 2800 | 3000 |
| 2 | Max.paper size | mm | 910*1800 | 1500*2400 | 1500*2600 | 1500*2800 |
| 3 | Min.paper size | mm | 280*650 | 450*650 | 450*650 | 450*650 |
| 4 | Max.printing size | mm | 810*1600 | 1400*2200 | 1400*2400 | 1400*2600 |
| 5 | Carboard thikness | mm | 2~11 | 2~11 | 2~11 | 2~11 |
| 6 | Printing plate thikness | mm | 10 | 12 | 12 | 12 |
| 7 | Dia.of printing roller | mm | Φ290 | Φ475 | Φ475 | Φ475 |
| 8 | speed | pcs/min | 60 | 60 | 60 | 60 |
| 9 | Topping precision | mm | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| 10 | Slotting precision | mm | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| 11 | Total power | kw | 7.5 | 7.5 | 7.5 | 7.5 |
| 12 | Weight | T | 5 | 6.5 | 7.5 | 9.5 |
| 13 | Overall dimension(L*W*H) | mm | 4300*2600*1900 | 4300*3200*1900 | 4300*3400*1900 | 4300*3600*1900 |
| 14 | ||||||
Features
- It's very convenient to control the printing slotting units, with the characteristics of order storage ,quick order changing and convenient operation.
- All the transmission gears use 45# chrome steel after high-frequency quenching and grinding in accordance with national standard.
- All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
- Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
- Different alarm ring will along with the machine launching and stopping.
- The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
- Each unit equips with emergency stop button.
- Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
- Equipped with automatic lubrication system.
