Ceramic Honeycomb Filter for Foundry Industry

Ceramic Honeycomb Filter for Foundry Industry thumbnail-1
Ceramic Honeycomb Filter for Foundry Industry thumbnail-2
Ceramic Honeycomb Filter for Foundry Industry thumbnail-3
Ceramic Honeycomb Filter for Foundry Industry thumbnail-4
Ceramic Honeycomb Filter for Foundry Industry photo-1
Ceramic Honeycomb Filter for Foundry Industry photo-2
Ceramic Honeycomb Filter for Foundry Industry photo-3
Ceramic Honeycomb Filter for Foundry Industry photo-4
Negotiable MOQ: 1 Cubic Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Ceramic Plates
Application:
Industrial Ceramic, alumina ceramic filters for foundry
Contact Supplier Request Quote Chat Now
Hebei Elite Ceramics Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Type Ceramic Plates
Model Number RD60*12.5
Brand Name Elite



Honeycomb extruded ceramic filters for the filtration of dross, slag and other non-metallic inclusions from molten metals.



Elite company have various specifications size of straight hole ceramic filter which is suitable for casting industry demand of different pouring temperature and casting speed.





 GREY IRON Sizes                                                                                        technical characteristics

Maximum pouring temperature 1450 °C

Filter

Size

Thickness

C.S.I.

Flow-rate ( Kg/sec)

Filter Capacity (Kg)

m

mm

               min

max

min

max

37 x 37

9,5

300

1

3

38

58

40 x 40

9,5

300

2

3

41

73

43,5 x 43,5

9,5

300

2

4

50

90

49 x 49

9,5

300

2,7

4,7

55

115

55 x 55

9,5

300

4,5

6,5

85

155

37 x 37

12,5

300

1

3

38

58

40 x 40

12,5

300

2

3

41

73

43,5 x 43,5

12,5

300

2

4

50

90

49 x 49

12,5

300

2,7

4,7

55

115

55 x 55

12,5

300

4,5

6,5

85

155

66 x 66

12,5

300

7

9

130

230

75 x 75

12,5

300**

8,2

12

150

310

75 x 50

12,5

300

6,8

8

120

210

81 x 81

12,5

300**

9,5

15,5

200

400

50 x 50

15 to 22

300

2,7

4,7

55

115

75 x 75

15 to 22

300**

8,2

12

150

310

75 x 50

15 to 22

300

6,8

8

120

210

81 x 81

15 to 22

300**

9,5

15,5

200

400

100 x 50

15 to 22

300**

7,2

9,5

135

250

100 x 100

19 to 22

300**

15

33

350

1500

100 x 75

19 to 22

300**

10

17

220

500

133 x 133

19 to 22

300**

27

40

450

4800

* The Flow Rate has been obtained by by using a pressure height of 200mm.

** Available also with 200 CSI.

Other filter sizes and other cells sizes are available for special applications



The products is widely applied in high precision and complicated shape casting,such as engine cylinder block,cylinder head,transmission,or heavy steel,alloy steel parts,or key components of the copper alloy,aluminum alloy.





With more than ten years experience,the technology of ceramic filter is more and more mature, and the production quality is more and more excellent and stable.



Almostly, fifity percentage of our products are exported to Europe,America,India ect. oversea markets



Here are details about  49×49×12.5.



Specification

   mm

Aperture

   mm

   Material

SiO2

 %

Al2O3

  %

MgO

 %

Refractory

   ℃

Pouring temperature

          ℃

RD60×12.5

Square 100csi



50% Mullite

50%cordierite

36-38

53-55

6-7

1600-1700

     1300-1450

RD 2.3mm

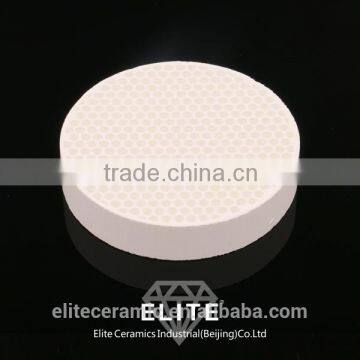

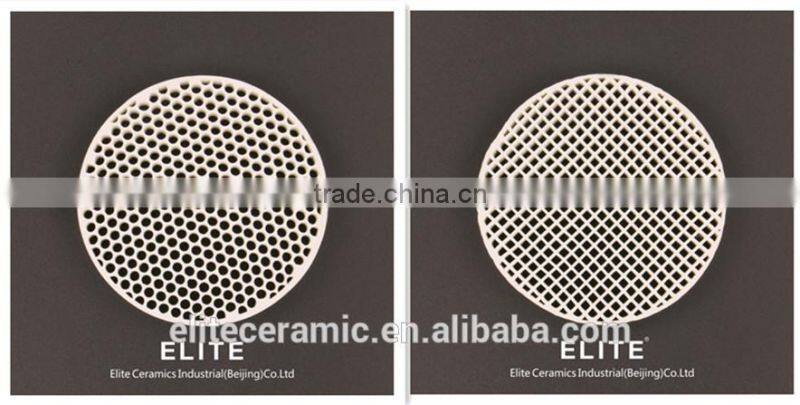

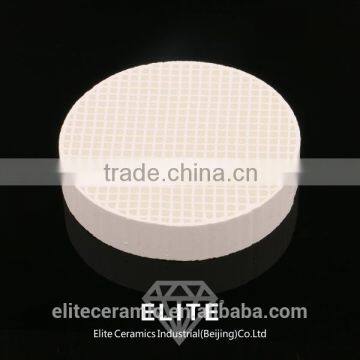

Pictures about honeycomb ceramic filter RD 60×12.5



Ceramic Honeycomb Filter for Foundry Industry

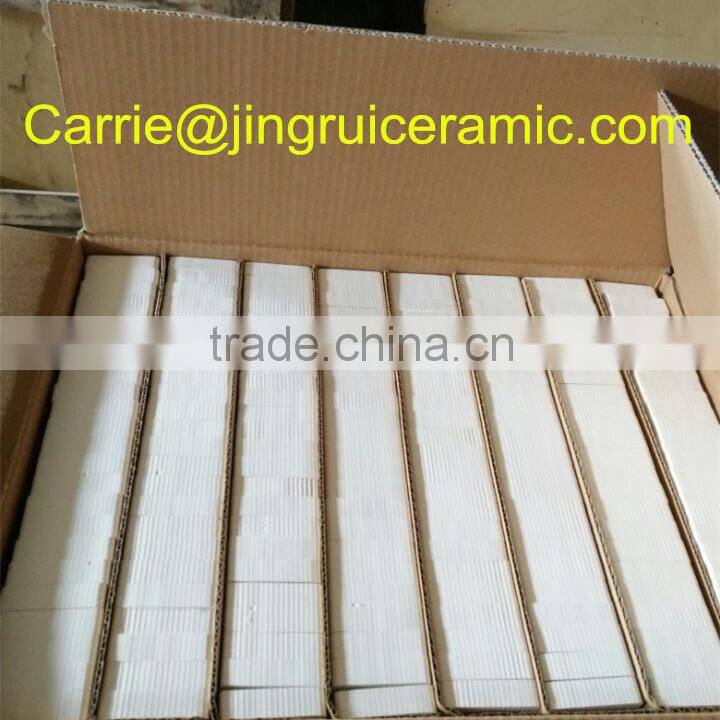

 honeycomb ceramic filter in one Carton.

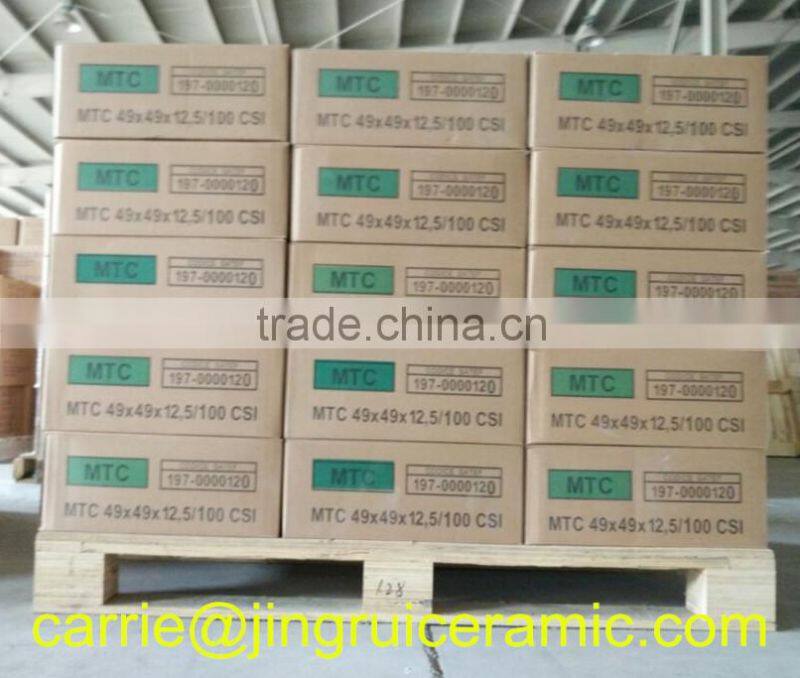

One pallet of honeycomb  ceramic filter



 Ceramic Honeycomb Filter for Foundry Industry
