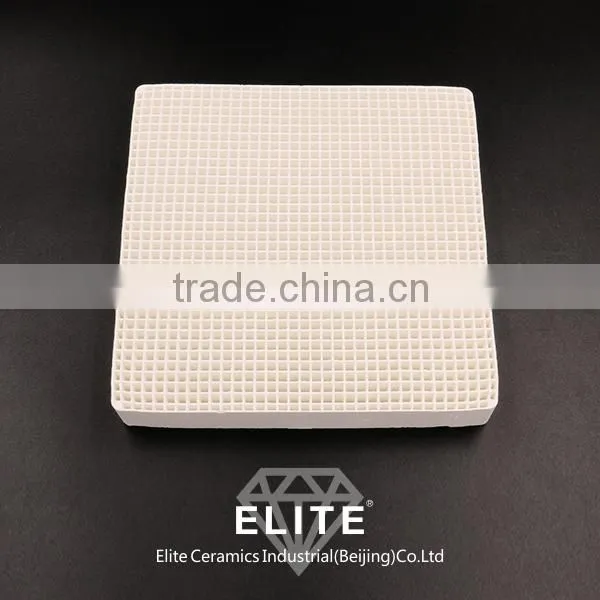

Help CenterPrecision Alumina Foundry Ceramic Filter Slice
Related Products
-
Al2O3 Refractory Honeycomb Ceramic Filter PlateNegotiableMOQ: 10000 Pieces -
Alimina Alloys Foundry Casting Foam Ceramic Filter PlateNegotiableMOQ: 10000 Pieces
-
Alimina Iron Casting Filtering Ceramic FilterNegotiableMOQ: 10000 Pieces
-
Alumina Iron Casting Foundry Ceramic FilterNegotiableMOQ: 10000 Pieces
-
Professional Alumina Foundry Honeycomb Ceramic FilterNegotiableMOQ: 10000 Pieces

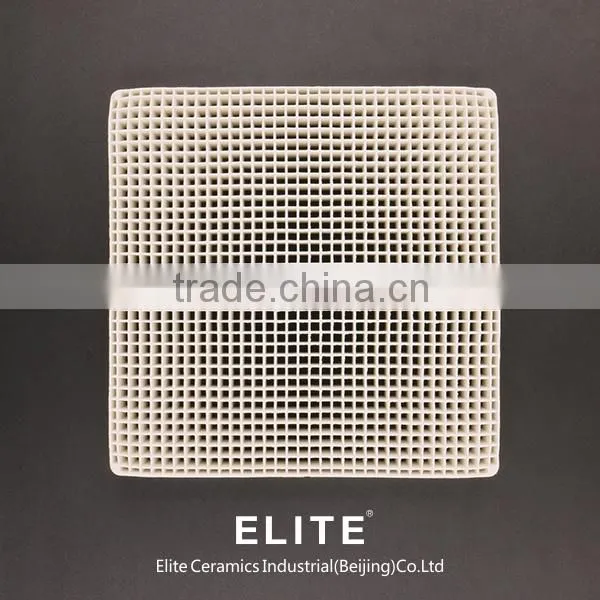

Product: Alumina foundry honeycomb ceramic filters for iron casting flitering
Size: 150*150*22mm
Square hole: 3.5*3.5mm
Material: Cordierite, Mullite,C-M
Major Chemical Constituents: Al2O3 53%-55%
SiO2 36%-38%
Mgo 6%-7%
Main Characteristics: Low thermal expansion,(working temperature 1300-1450℃)
High heat impact resistance,(refractory temperature 1600-1700℃)
Anti-oxidation,
Large specific surface area
Corrosion-resistance,
High strength,
Unique cellular designs
Honeycomb ceramic filter is porosity ceramic with holes, for the filtering of metallic molten polymer, purifying metal liquid.It is widely used in the wind power,diesel engine parts foundry industry.
|
DUCTILE IRON Sizes and technical characteristics Maximum pouring temperature 1450 °C | ||||||
Filter size |
Thickness |
C.S.I. |
Flow Rate (Kg /sec)* |
Filter Capacity (Kg) |
||
mm |
mm |
min |
max |
min |
Max |
|
37 x 37 |
9,5 |
100 |
0,75 |
2,25 |
14 |
28 |
40 x 40 |
9,5 |
100 |
0,9 |
2,27 |
15 |
40 |
43,5 x 43,5 |
9,5 |
100 |
1,5 |
3 |
15 |
47 |
49 x 49 |
9,5 |
100 |
1,9 |
3,4 |
19 |
58 |
55 x 55 |
9,5 |
100 |
3 |
4,5 |
31 |
76 |
66 x 66 |
9,5 |
100 |
4,8 |
6,3 |
48 |
113 |
75 x 32 |
9,5 |
100 |
1,9 |
3,4 |
19 |
58 |
37 x 37 |
12,5 |
100 |
0,75 |
2,25 |
14 |
28 |
40 x 40 |
12,5 |
100 |
0,97 |
2,7 |
15 |
40 |
43,5 x 43,5 |
12,5 |
100 |
1,5 |
3 |
15 |
47 |
49 x 49 |
12,5 |
100 |
1,9 |
3,4 |
19 |
58 |
75 x 32 |
12,5 |
100 |
2 |
3,5 |
20 |
60 |
75 x 50 |
12,5 |
100 |
4 |
6,2 |
45 |
100 |
55 x 55 |
12,5 |
100 |
3 |
4,5 |
31 |
76 |
66 x 66 |
12,5 |
100 |
4,8 |
6,3 |
48 |
113 |
75 x 75 |
12,5 |
50 – 100** |
na - 5,5 |
na - 10 |
na - 65 |
na –165 |
81 x 81 |
12,5 |
100 |
6,4 |
11 |
70 |
180 |
50 x 50 |
15 to 22 |
100 |
1,9 |
3,4 |
19 |
58 |
75 x 75 |
15 to 22 |
50 – 100** |
na - 5,5 |
na - 10 |
na - 65 |
na –165 |
100 x 100 |
19 to 22 |
50 – 100** |
13 –10,5 |
25 - 18 |
200 -120 |
400 –300 |
75 x 32 |
15 to 22 |
100 |
2 |
3,5 |
20 |
60 |
75 x 100 |
15 to 22 |
50 – 100** |
7 |
13 |
80 |
220 |
133 x 133 |
19 to 22 |
50 – 100** |
32 - 21 |
38 - 26 |
300 - 110 |
1800 –570 |
75 x 50 |
15 to 22 |
50 – 100** |
4 |
6,2 |
45 |
100 |
81 x 81 |
15 to 22 |
100 |
6,4 |
11 |
70 |
180 |
100 x 50 |
15 to 22 |
50 – 100** |
na - 5 |
na - 7 |
na - 50 |
na –125 |
|
* The Flow Rate has been obtained by using a pressure height of 200mm. ** Available also with 80 C.S.I. na: Feature not available Other filter sizes and other cells sizes are available for special applications | ||||||
