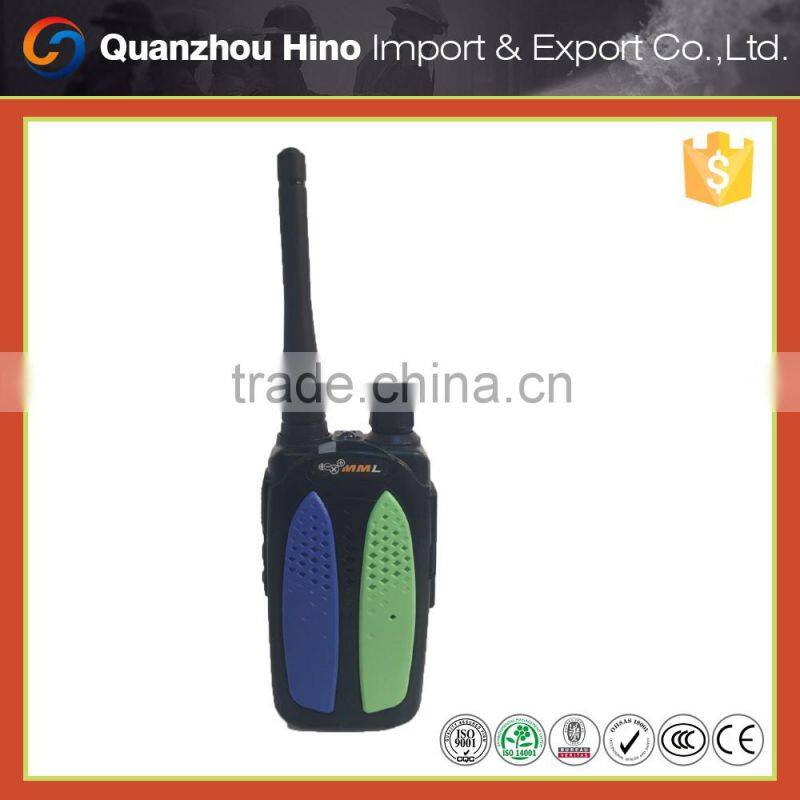

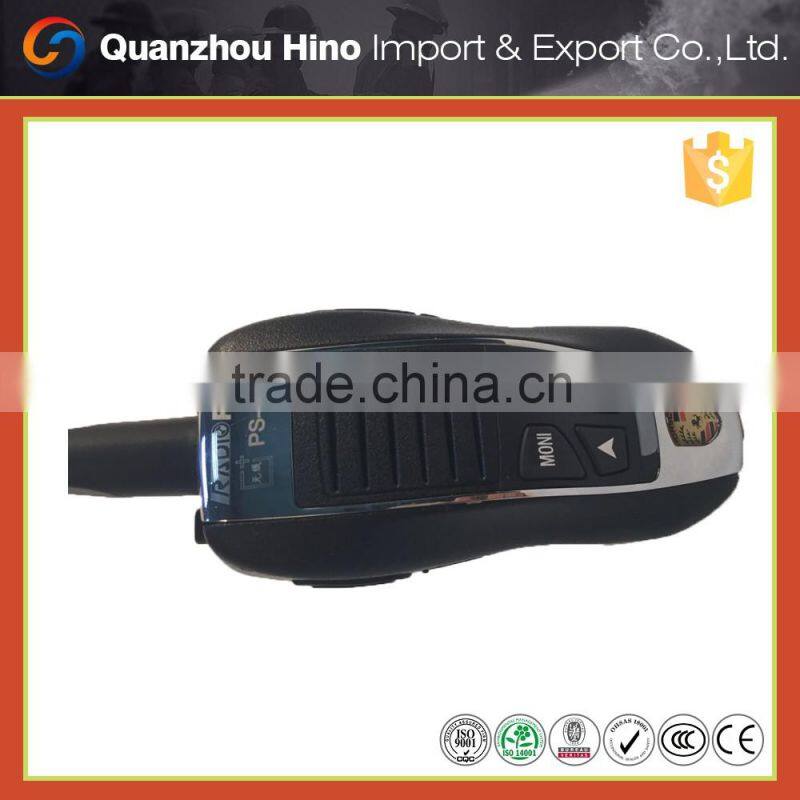

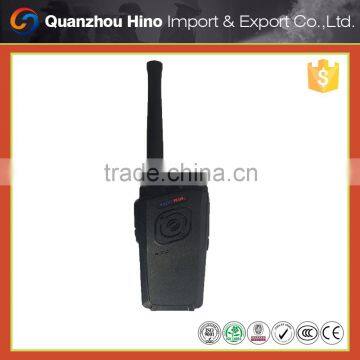

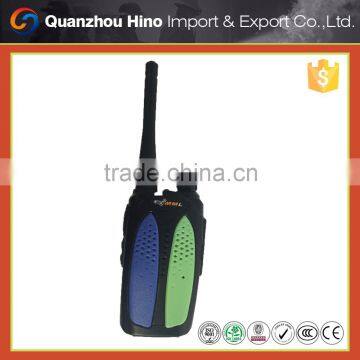

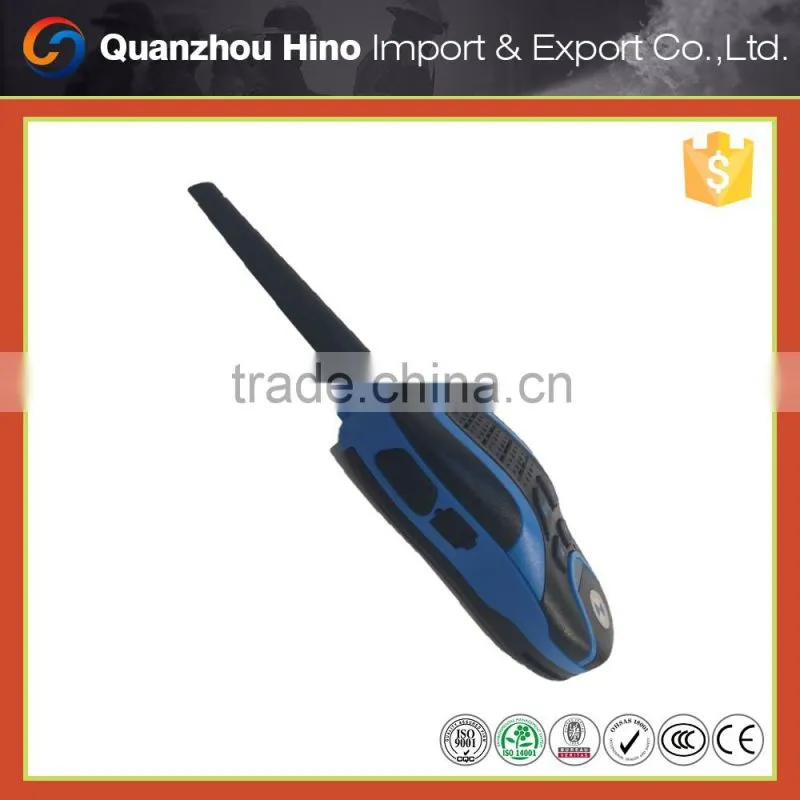

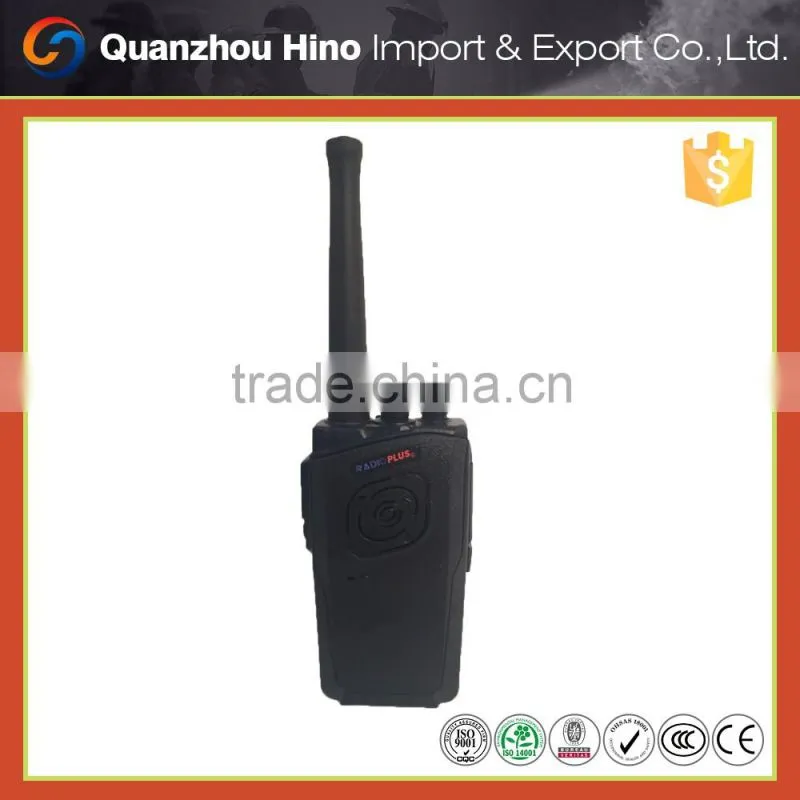

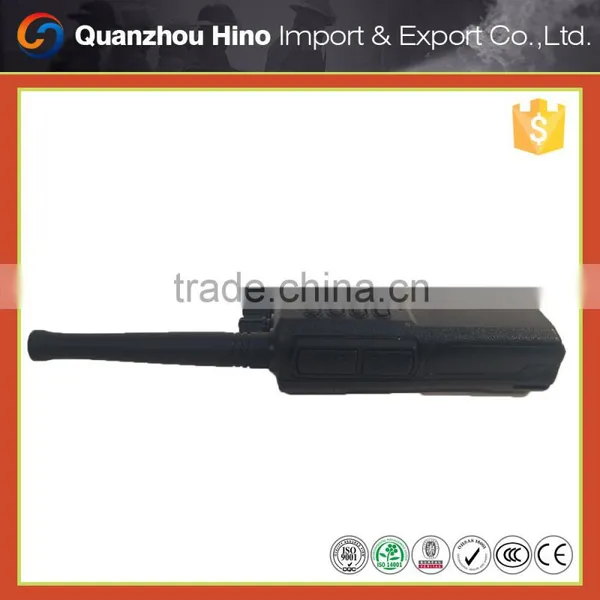

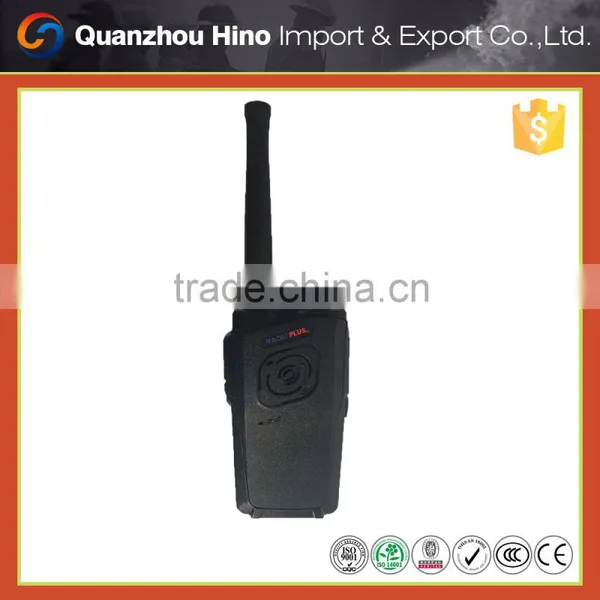

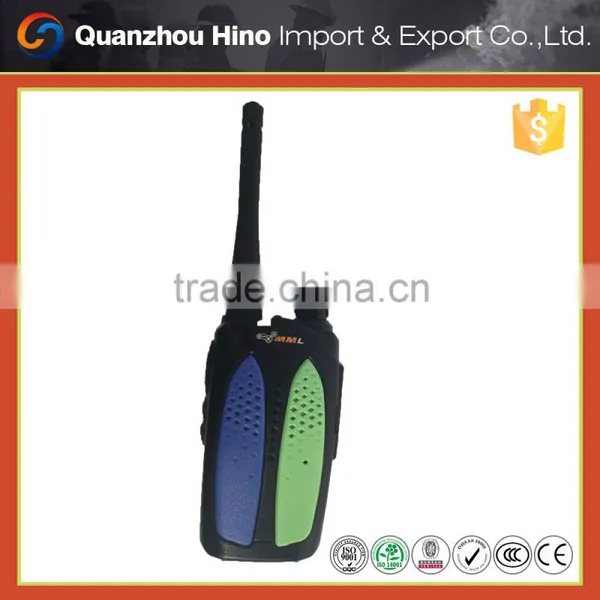

two way radio with repeater
-IP66 rating dust and water protenction
- Robust,rugged and heavy-duty design
- wide frequency range
- UHF:400-480MHz/VHF:136-174MHZ
- 1024 channels, up to 65 zones
- 2 programmable function side buttons
- Crisp, clear and high quality sound
- 2000mAh high capcity Li-ion battery pack
- 1.8 inch TFT display,65535 colors, 160×128 pixels
- TDMA dual Time Slots technology
| Specification | |
| Frequency range | UHF:400-470 MHz |
| VHF:136-174MHz | |
| UHF:350-400 MHz | |
| UHF: 450-520MHz | |
| Channels | 128 |
| Zones | 16 |
| Channel spacing | 12.5KHz 25/20/12.5KHz(Analog) |
| Voltage | 7.4V |
| Battery capacity | 2200mAh Li-ion battery/2500mAh Li-Poly battery |
| Battery Life(5/5/90) | Digital mode:16H(GPS off) |
| Analog mode:11H(GPS off) | |
| Frequency stability | ±1.0ppm |
| Antenna impedance | 50 ohm |
| Dimension | 126*53*34mm |
| Transmitter | |
| RF Power Output | VHF High:5.0W UHF high: 4.0W |
| Low:1.0W | |
| 4FSK Digital Modulation | 12.5kHz for data:7K60FXD |
| 12.5kHz for data and voice:7K60FXE | |
| FM Modulation | 12.5 kHz:8K50F3E |
| Modulation Limitation | +/- 2.5kHz @ 12.5kHz |
| FM noise | 40Db/43Db/45Db |
| Spurious Emission | -36 dBm≤1GHz/-30 dBm≥1GHz |
| Adjacent Channel Power | ≤-60dB/70dB |
| Audio Response | ≤3 dB |
| Audio distortion | 3% |
| Digital Vocoder Type | AMBE3000++ |
| Receiver | |
| Digital Sensitivity | 5% BER:0.22 uV |
| Analog Sensitivity | 0.22 uV (12 dB SINAD) |
| Intermodulation rejection ratio | 60dB |
| Adjacent channel selectivity | 60 dB |
| Spurious emissions | 70 dB |
| FM noise | -40dB |
| Audio Response | +1/-3 dB |
| Audio output power | 1200mW |
| Audio distortion | 3% (typical) |
| Conduction Radiation Emission | ≤-57dBm |
| GPS precision | ≤-10m(Good signal conditions ) |
| Environmental Specifications | |
| Operating Temperature | -20°C—60°C |
| Storage Temperature | -30°C—+85°C |
| Humidity | MIL-STD-810C/D/E/F |
| Shock&Vibration | MIL-STD-810C/D/E/F |
| Dust & water Protection | IP67 standard |
| U.S Military Standard | MIL-STS-810 C/D/E/F/G |
Accessories
| 1).Battery Pack | 1 set |
| 2.Antenna | 1 set |
| 3).Charger | 1 set |
| 4).AC Adapter | 1 set |
| 5).Belt Clip | 1 set |
| 6).Hand strap | 1 set |
We usually try our best to introduce you very right two way radios.FM Transceiver , walkie talkie etc
We are pleased to receive your enquiry.
We are pleased that you would like to order our samples to test.
We are looking for two way radios dealer and distributors.
We are sure that we will introduce you the very right two way radio, FM Transceiver, walkie talkie
We offer you 1years warranty for radio walkie talkie and 6 months for accessories.
We are pleased that we can become old friends step by step.
Q: Are you a factory or trading company?
We are factory and we have our own independent import and export company.
Q: Can I get a sample?
For certainly, please contact us for detail.
Q: What's the terms of the payment?
T/T, L/C, Western Union, MoneyGram, etc.
