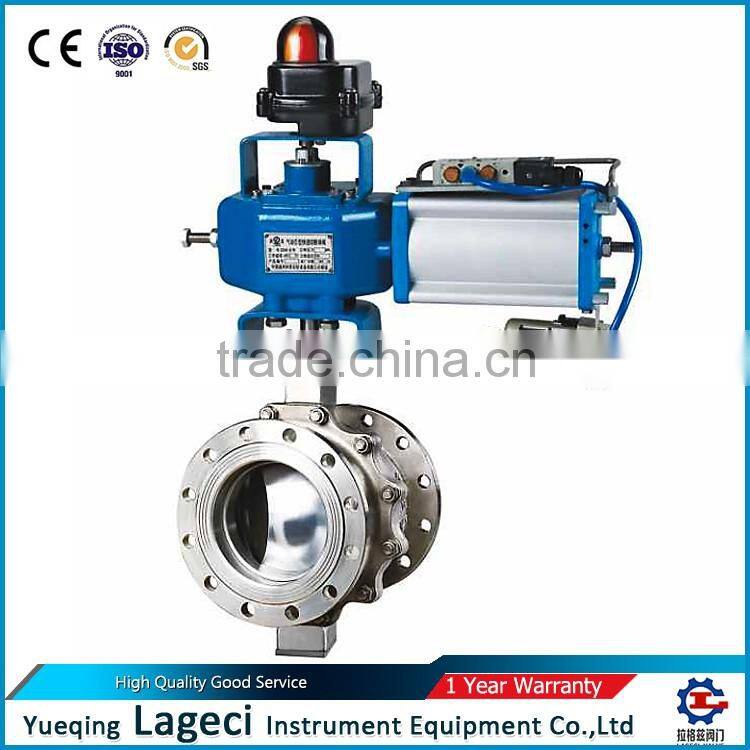

Q641H High Quality Two Piece Pneumatic Flange Ball Valve

Q641H High Quality Two Piece Pneumatic Flange Ball Valve thumbnail-1
Q641H High Quality Two Piece Pneumatic Flange Ball Valve photo-1
US$ 1 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Yueqing Lageci Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nongbi Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Pneumatic
Material Stainless Steel
Temperature of Media High Temperature
Media Gas
Port Size DN10-DN500
Place of Origin Zhejiang, China
Model Number PSSR-ED
Brand Name Lageci
Application General



Q641H  High Quality Two Piece Pneumatic Flange ball valve

Nominal Pressure Rating:1.6 Mpa, 2.5 Mpa, 4.0Mpa

Working Temperature:-20~300℃

Nominal Diameter:DN10-500mm

Rated Flow Coefficient:25~25800Kv

Main Material:Valve Body 304,316,316L    Valve Plug 304,316,316L

Control voltagel:1.24VDC  2.220VAC

Seal Type:

1.Self-adjusting Stainless Steel Hard Seal

2.Teflon soft Seal

Leakage:1.GB/T4213-2008IV  2.no leakage

Actuator Type:Double Acting

Air Supply Pressure:0.4-0.6Mpa

Accessories:1.Solenoid valve  2.Air Filter  3.Position limit switch box  4.Flange

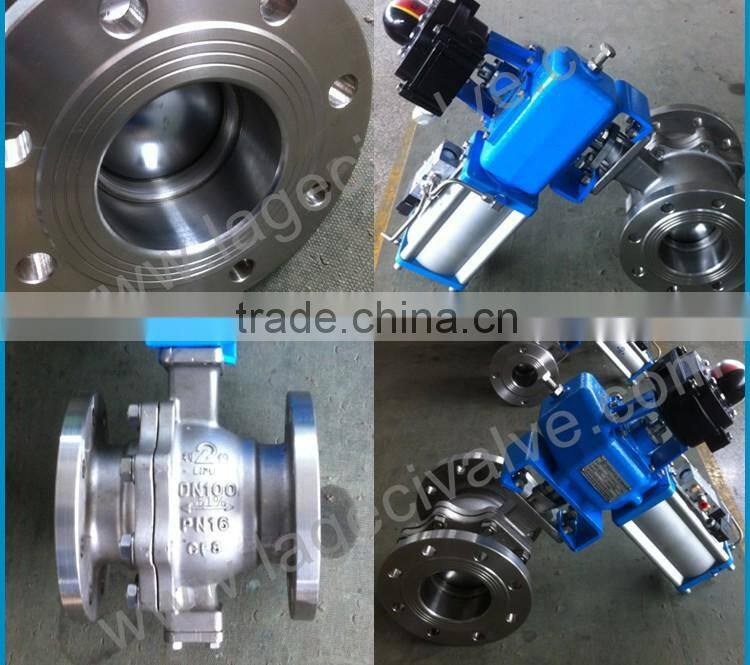

Q641H High Quality Two Piece Pneumatic Flange ball valve

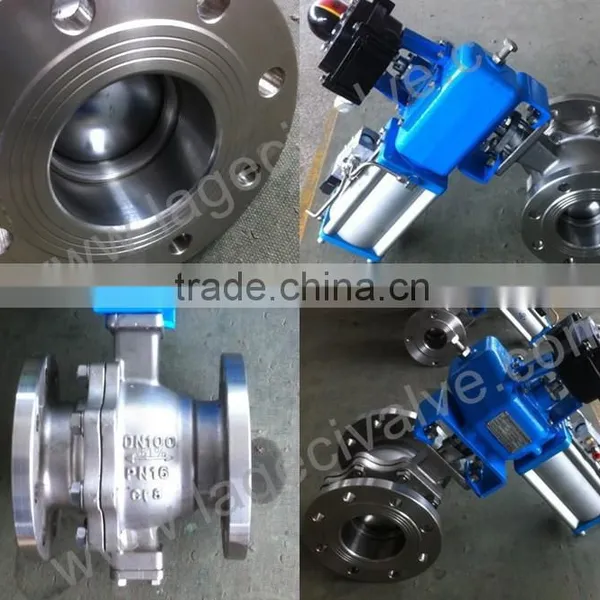

Q641H High Quality Two Piece Pneumatic Flange ball valve
Q641H High Quality Two Piece Pneumatic Flange ball valve
