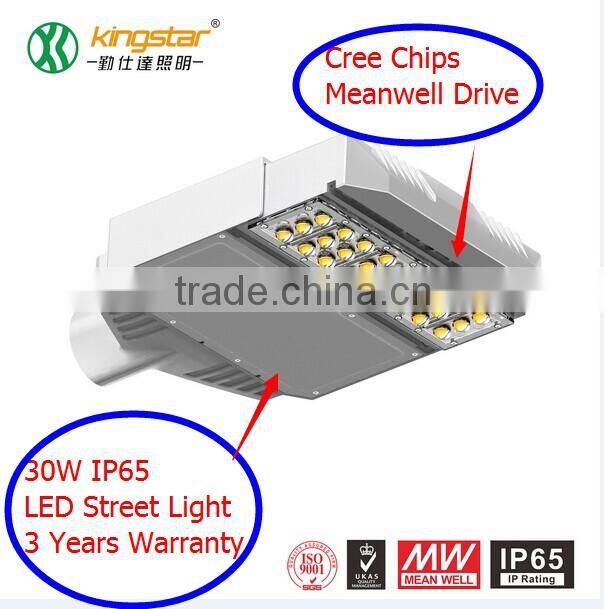

King Star Led Street Lighting Led High Power 30W LED Street Light IP65 Street Light Led
Specifications
LED Street LightPower Supply MeanWell Driver
Input Voltage AC90-305V
street light led
high power newest design 30W LED street light of Meanwell Driver 3 years warranty LED Street Lighting street light led
LED Street Light Product specification:
Electrical Characteristics | Optical Properties | ||||||
Power Supply | MeanWell Driver | LED Type | CREE XTE | ||||
Input Voltage | AC90-305V | LED Q’ty | 24 pcs | ||||
Power | 30W | Lumen | 80~100lm/W | ||||
Power Factor | 0.95-0.98 | CRI | 70 | ||||
IP Rating | IP65 | Beam Angle | 120 | ||||
Life Time | 50000H | CCT | Warm white | 2800-3200K | |||
Natural white | 3750-4250K | ||||||
Pure white | 4750-5250K | ||||||
5700-6500K | |||||||
Standard Dimensions | |||||||
Product Dimension | N W | Packing Dimension | G W | ||||
192*371*98mm | 3.21kg | 425*250*130mm | 3.5kg | ||||
What is our LED street light looking for?
What Advantages our LED street light have?
- All aluminum housing for the heat dissipating greatly extends the life span of
- lighting source. Free of dust and water, suitable for outdoor.
- Ultrathin design, convenient for storage, transportation and maintenance.
- High pressure casting, procesed by painting, solid and corrosion resisting.
- Waterproof: IP65

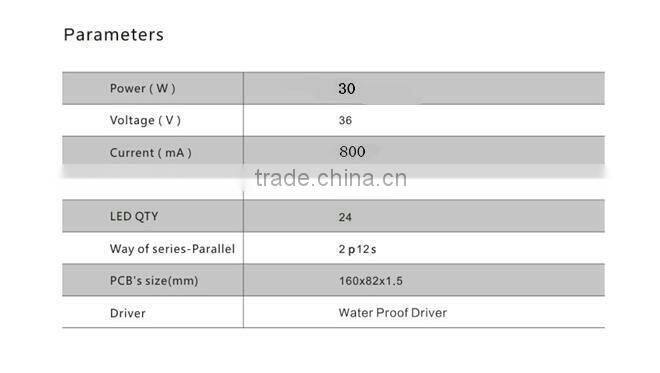

LED Street Light Parameters:

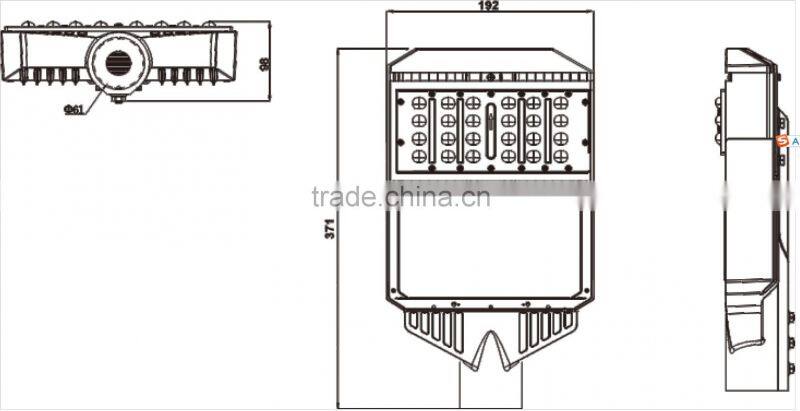

LED Street Light Product dimension:

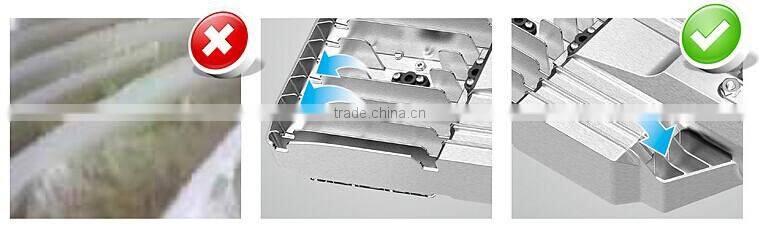

LED Street Light Free water, dust design:
LED Street Light IP65 Waterproof:
Usingsilicone ringsealtechnology, protection grade IP65,completely preventdust intrusion and heavy rain.
LED Street Light Strong corrosion resistance:
Overallpainting treatment,form a protective layeron the surface, greatly improving the corrosion resistance, suitable for harsh outdoor environment.
LED Street Light Independent power supply design:
Driversplit design, LED bodytemperaturefrom won’t influence it.Improving thepowerefficiency, stability and longevity, and easy for maintenance.
LED Street Light 16 hurricane resistant:
Through professionalwind tunneltesting, the highestwind speed of56m / s,ie,16hurricanes, there is no distortionandloosening, very strong.

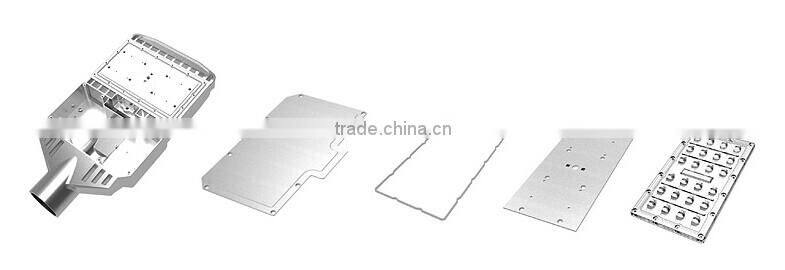

What Complete set does the LED street light have?
Heat sink body Driver cover Silicone ring Al PCB Lens
What Certificates we have of our LED light?

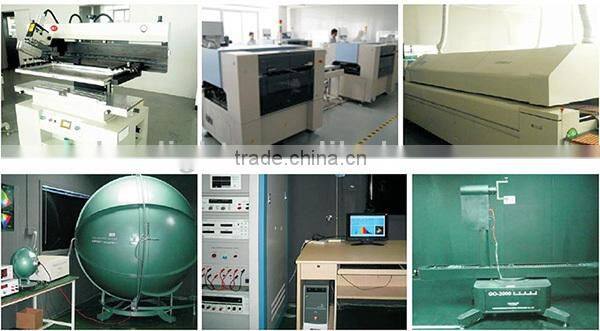

What Machine we have use in LED street light production?
Factory:

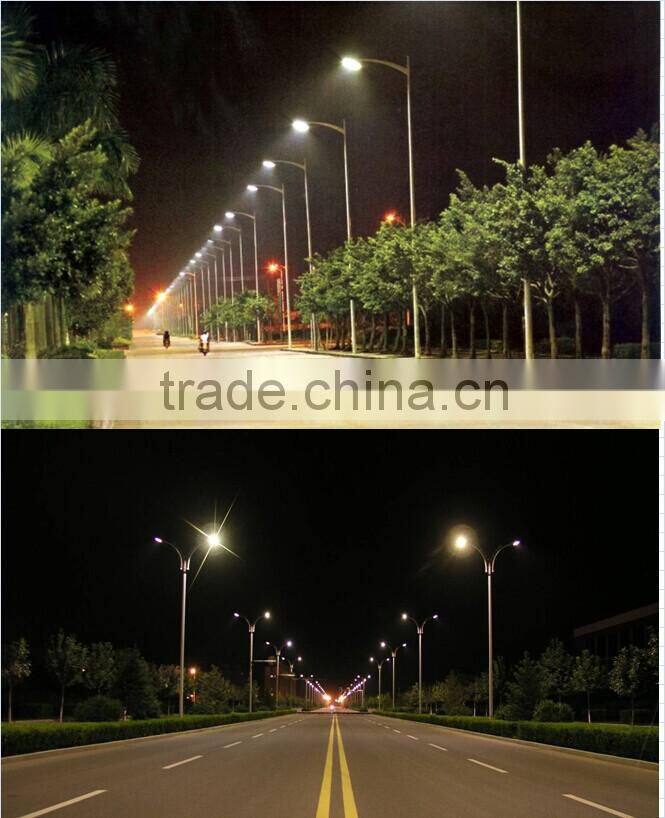

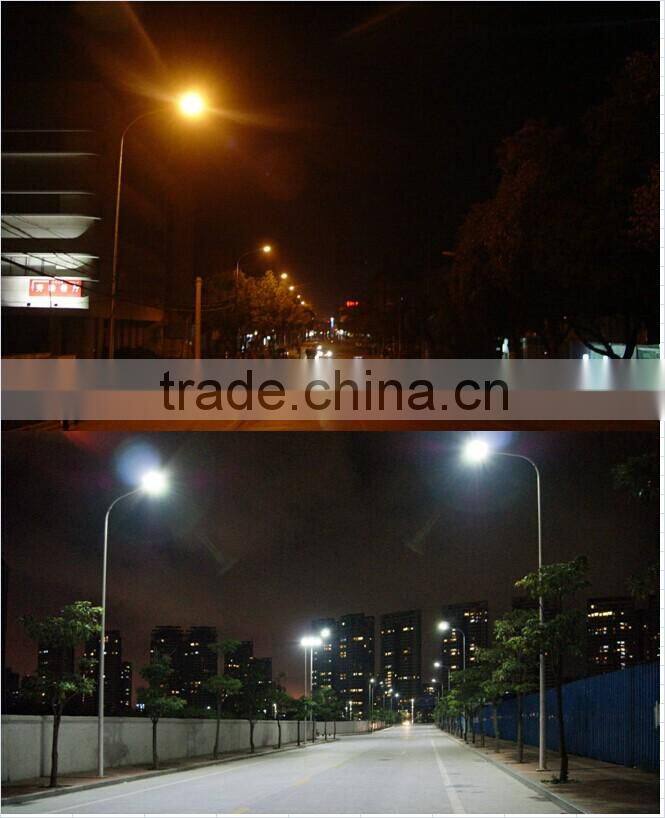

The Application of our led street light:
