Zhuzhou YG6X Tungsten Carbide Round Bar, Carbide Rod Blank
Product Features of YG6X Tungsten Carbide Rod
As for YG6X tungsten carbide rod, below are the general features for your reference. For more details of specific type, please inform us.
1) Better wear resistance, higher toughness, better deformation and fracture resistance, results in a long life and good size accuracy;
2) Adopt advanced automatic extrusion equipment;
3) HIP sintering and precision grinding to ensure the good performance;
4) Both blank and finished tungsten carbide rods available;
5) Can reach a mirror effect surface after accurate grinding and polishing.
Product Type And Grade of YG6X Tungsten Carbide Rod

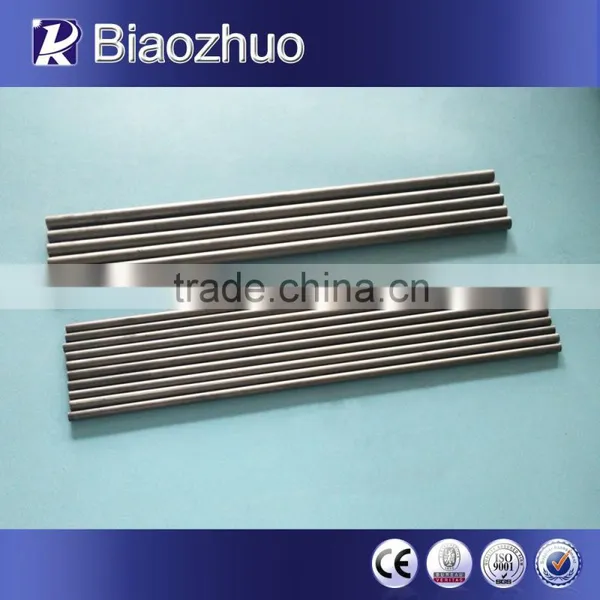

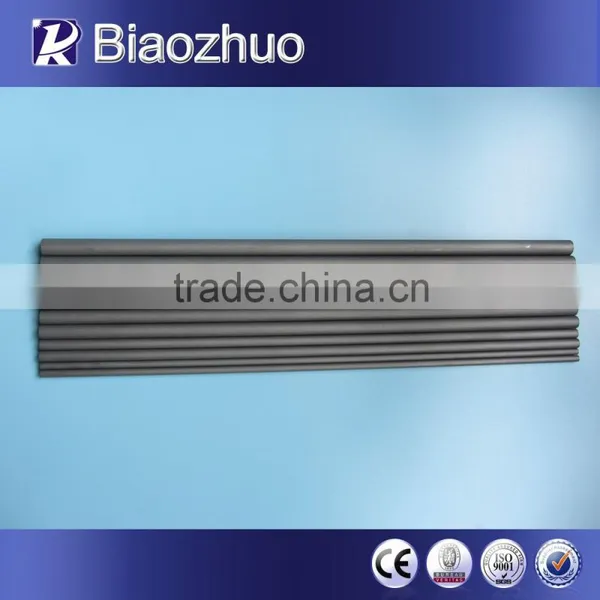

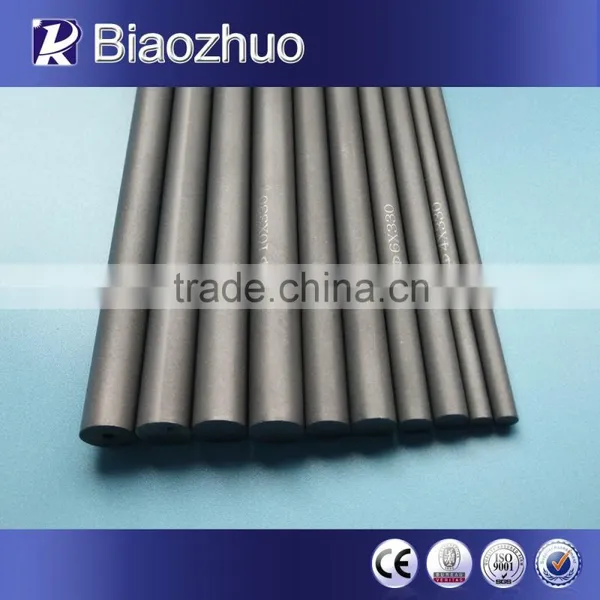

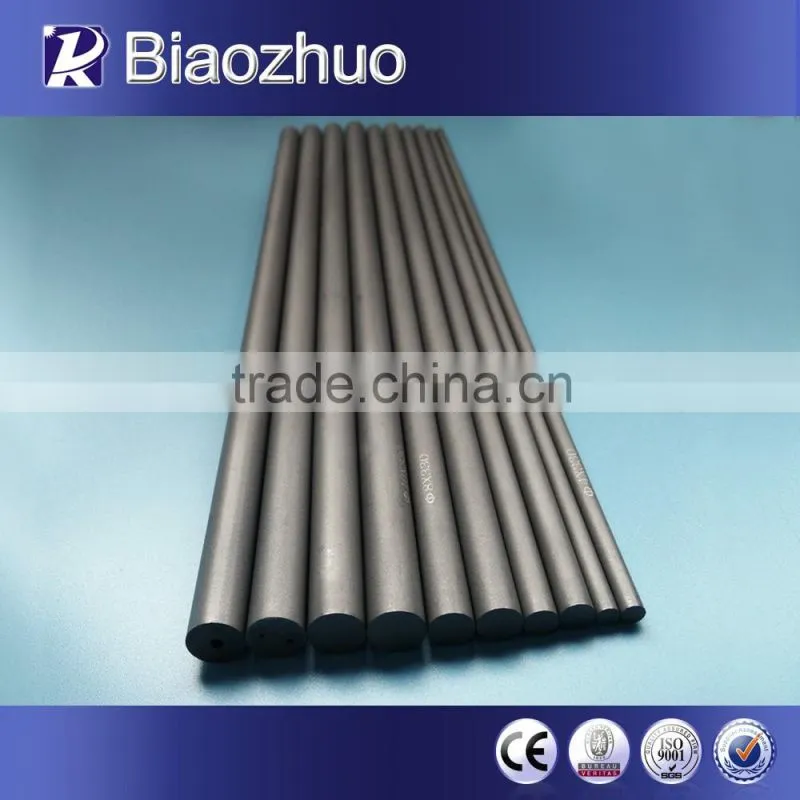

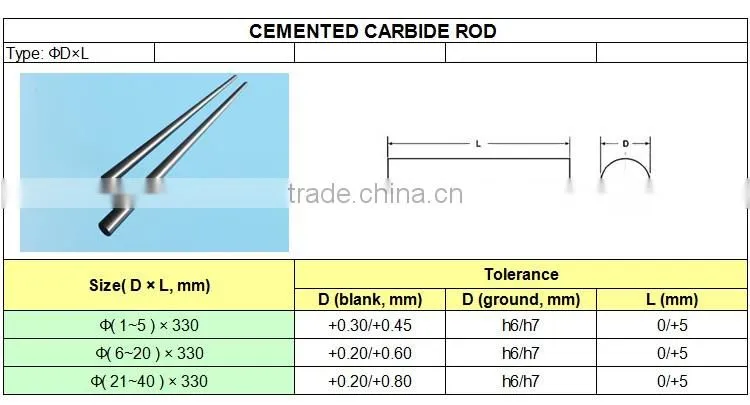

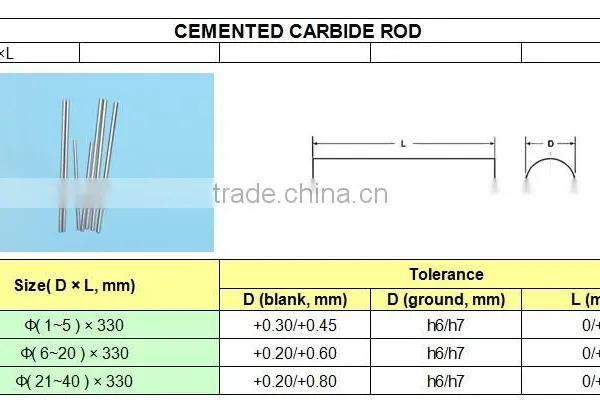

Below are the product picture and drawing for your reference. For more details, please inform us.
Zhuzhou YG6X Tungsten Carbide Round Bar, Carbide Rod Blank
| Grade Chart For Carbide Rod | ||||
| Grade | ISO grade | Hardness | TRS | Recommended Application |
| (HRA) | (MPa) | |||
| KU10F | K05-K10 | 93.2 | ≥3800 |
Suitable for machining aluminum-magnesium alloys, glass fiber, carbon fiber, wood, harden plastic and iron-based alloys, etc. It is recommended for making PCB micro drill and drills of other materials. |
| YG6X | K05-K10 | 92.5 | ≥3000 |
Suitable for machining chilled alloy cast irons, heat-resistance alloy steel, non-ferrous metals, wood, paper, plastic and aluminum-magnesium, etc. It is recommended for making solid carbide drills, milling tools and reamers. |
| KU30 | K20-K30 | 91.7 | ≥3800 |
Suitable for machining carbon steel, cast irons, stainless steel, heat-resistance steel, nickel based alloys and titanium alloys. It is recommended for making different specification tools, such as drills, end mills, screw taps, rotating file. A good material for generalpurpose. |
| KU40F | K30-K40 | 92 | ≥4000 |
Suitable for machining nickel based alloys, titanium alloys, stainless steel, mould steel, chilled hardened steel and grey cast irons, etc. It is recommended for making milling tools and reamers. Suitable for high speed machining. |
| YG15 | K30-K40 | 87.6 | ≥4000 | Suitable for making solid dies and moulds and tools for punching operations. |
Product Application of YG6X Tungsten Carbide Rod
YG6X tungsten carbide rods are used for making the drill bits, end-mills, reamers. They can also be used for making of cemented carbide stamping head, Core bar and perforation tools.
Product Process of YG6X Tungsten Carbide Rod
Below are the production processes of YG6X tungsten carbide rod, to ensure high quality, we assureed our customers that:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
All goods would be checked well and packed safely before shipping.
Zhuzhou Biaozhuo Cemented Carbide Material Co., Ltd is a professional tungsten carbide manufacturer and exporter. Located in Zhuzhou City, the world renowned cemented carbide base in China, we have advantages in researching, designing and manufacturing various carbide products.
With more than 15 years experience in this field, we have won a reputation as "the pioneer in carbide field", and we have been assessed by Alibaba and BV as a professional manufacture. And our product range covers carbide buttons, stone cutting tips, brazed tips, milling inserts, wear parts as well as carbide bars/strips and rods.
Up to now, our products have been exported to many countries as USA, Canada, Russia, Romania, Italy etc. And we are committed to be a reliable and faithful cooperation partner to our customers. To win your satisfaction and to build a win-win relationship is our goal.
Biaozhuo has an annual production capacity of two hundred tons, equipped with advanced facilities including ball milling machine, TPA pressing machines and HIP sintering furnace, as well as professional quality inspection instruments.
Biaozhuo is awarded with BV and TUV certificate which ensures that every batch of products is up to standard and customer’s requirement.
We deliver good quality and service to our customers only, and expect to develop a long term business relationship with you!
| 24 hours online service, welcome to contact us. | |
| Inquiry note | To quote best price for your inquiry, please inform us your ideal type in terms of grade, type or drawing with dimension and tolerance, quantity etc. |
| MOQ | MOQ could be 100 pieces or 1kg. |
| But the price will be a little bit high when the quantity below 50kg or 2000USD. | |
| Sample | 1. Samples are available upon customers request. ; |
| 2. Sample time is 7 days | |
| 3. Sample sent by DHL,UPS,FEDEX, EMS, China Post Airmail etc | |
| Delivery time | For standard types, the delivery time is normally 20~25 days. |
| For nonstandard type or further processed type, the delivery time is 25~35 days. | |
| For urgent needs, delivery time may be pushed by negotiation. | |
| Payment method | 1.T/T, 30% Deposit; |
| 2. Balance payment before shipment ; | |
| 3. Other payment methods such as Paypal, West Union, L/C are negotiable. | |
