High Quality &Best Price 90W LED Tunnel Light IP65,Neutral White,BRIDGELUX,non-dimmable

Specifications

weixingtech 90W LED Tunnel Light
Driver: With External MW power
Chips: Bridgelux 45*45LED
Warranty: 3 years

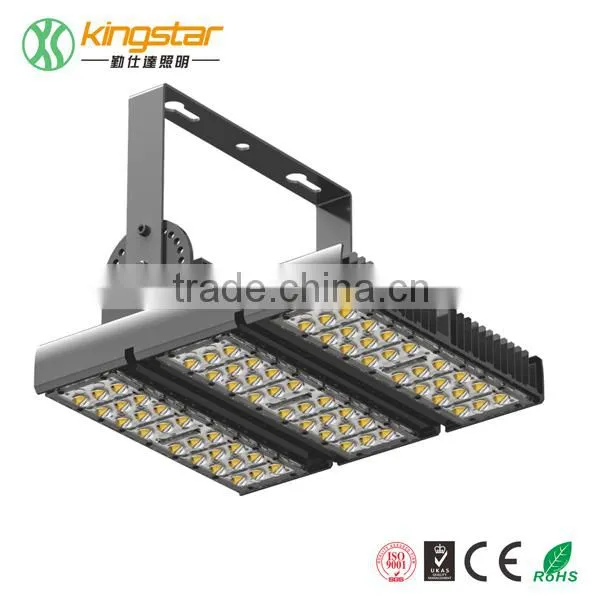

90W LED Tunnel Light



Product Introduction

Features:

Light Source: Bridgelux 45*45µ High Power LEDs to ensure long life time.

Scale light body, good heat dissipation.

Special lens for LEDs to ensure nice light distribution curve and uniformity light.

Outdoor lighting, IP65

High quality Meanwell internal power supply

Power Supply wire:3*0.75 mm²rubber cable, the cable from the back.

Electronic safety grade: Class I

LED channel light with long lifetime: 30000H, ten times the lifetime of normal channel light.

Working temperature: -40~+60 centigrade, the channel light applies to various environments with natural temperature.

Elegant appearance, high quality, great waterproof effect.



Applications:

Tunnel, factory, road lighting, stadium, etc.



Product Spec.:  CH90 (90W)



Electrical Characteristics		Optical Properties
Power Supply	With External MW power	LED Type	Bridgelux 45*45LED
Input Voltage	AC100-277V	LED Q’ty	72 pcs
Power	90W	Lumen	7500-8100 lm
Power Factor	0.95-0.98	CRI	70 Ra
IP Rating	IP65	Beam Angle	90°
Standard Dimensions
Product Dimension	N.W.	Packing Dimension	G.W.
298*340*145mm	5.15kg	39*34*19cm	6.40kg

















LED Tunnel Light Replace HPSL.

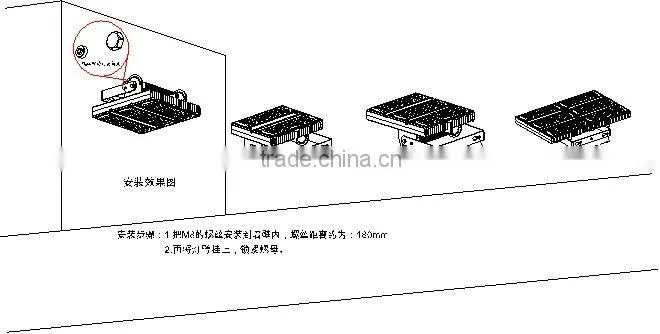

Installation Instruction:

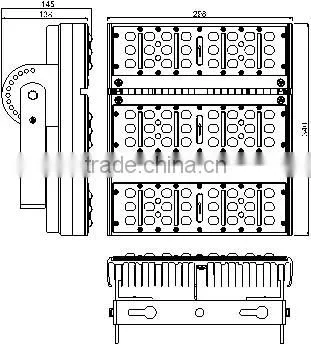

Product Dimension:

CH90(90W):

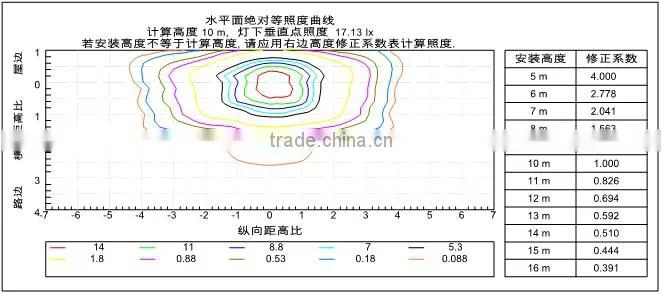

Lighting Space:

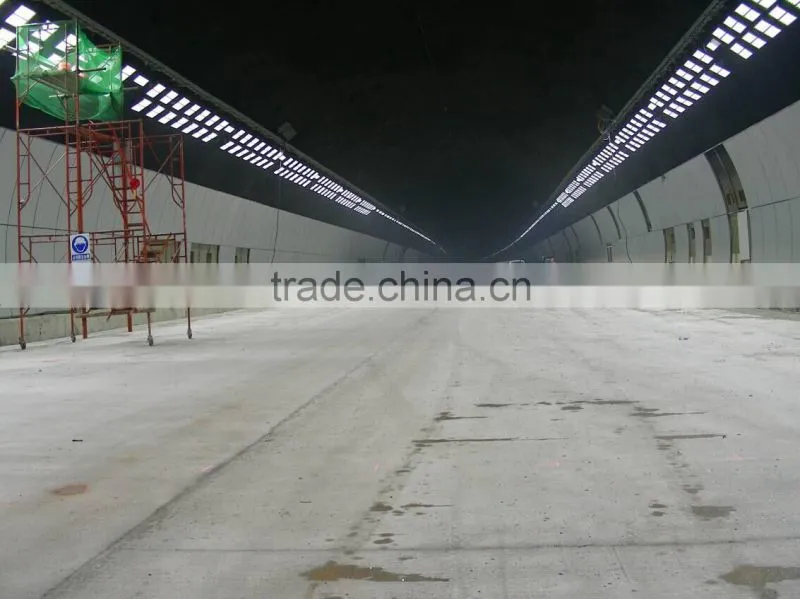

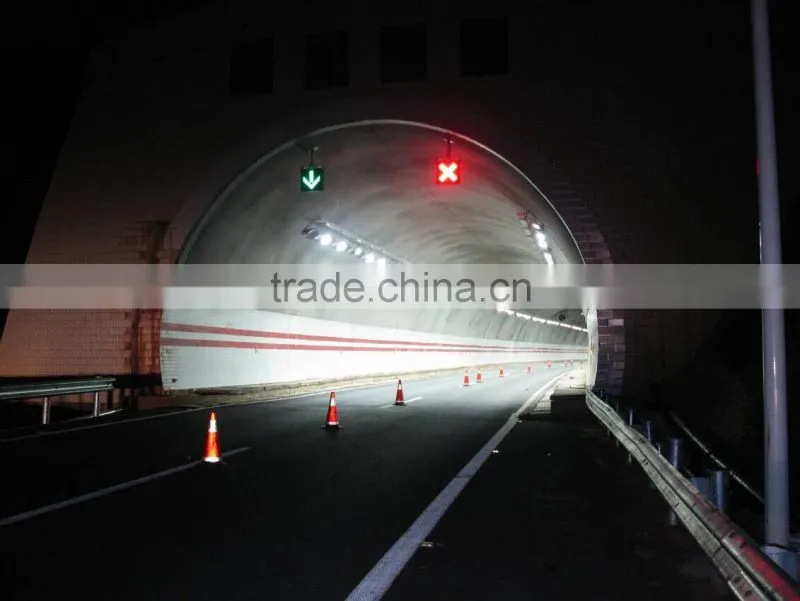

Case:
