2 Feet 8W SMD3014 Etl Led t8 Tube

LED Tube Length

0.6M

Model Number

T8.06P08S.3D63L

Power

8W

Input Voltage

AC85-265V / 50-60Hz

Power Factor

>0.95

LED Type

SMD3014

LED Q’ty

108 pcs

CCT

2800-3200K / 4000-4750K / 5500-6500K

CRI

>72 or >80

Lumen

600-800 Lm

Beam Angle

140°

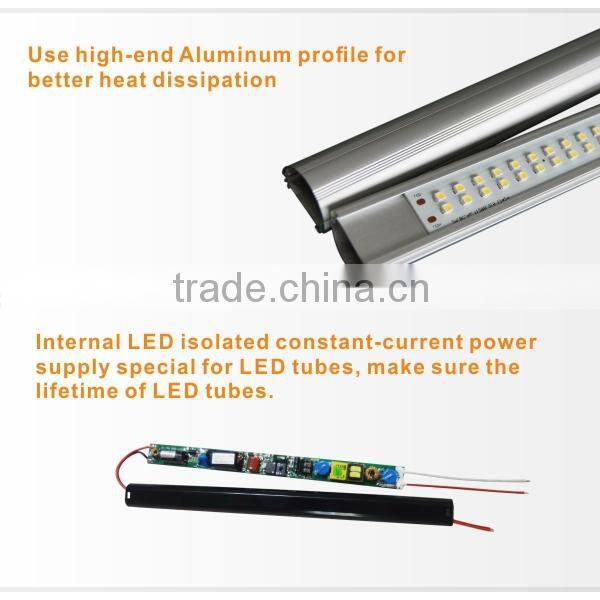

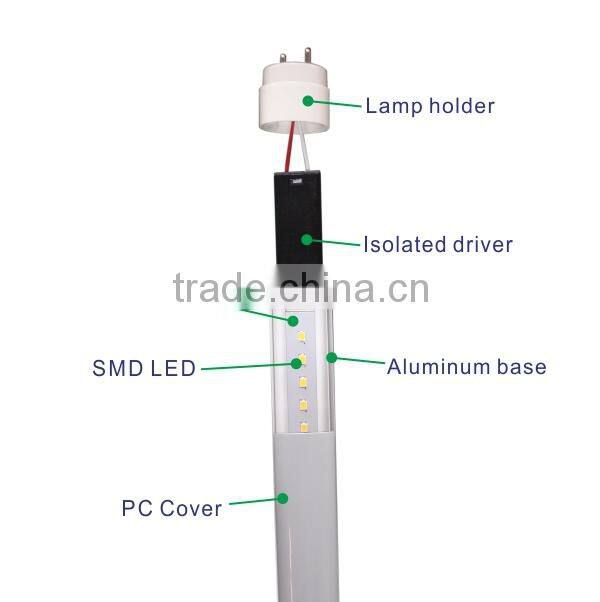

•  With internal isolated power supply.
•   Use the most mature international well-known LEDSMD3014 as the light source, which can ensure the led tube brightness and long lifetime, also can reduce the light decay.
• Use the high quality aluminum PCB for LED’s better heat dissipation.
•  High-grade PC cover with nice light transmittance (> 95%)
• Transparent PC cover and frosted PC cover are available.
• 140 degrees beam angle makes the lighting effect better.
• CRI (standard products)>70,it can be over 80 if required.
• Ambient temperature:-20°C-40°C, surface temperature: 42°C-45°C
• No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation, no frequency flash, instant startup, no hurting eyes.

LED Tube Length

0.9M

1.2M

1.2M

Model Number

T8.09P15S.3D63L

T8.12P18S.3D63L

T8.12P20S.3D63L

Power

15W

18W

20W

Input Voltage

AC85-265V / 50-60Hz

Power Factor

>0.95

LED Type

SMD3014

LED Q’ty

156 pcs

192pcs

192 pcs

CCT

2800-3200K / 4000-4750K / 5500-6500K

CRI

>72 or >80

Lumen

1300-1500 Lm

1600-1800 Lm

1800-2000 Lm

Beam Angle

140°

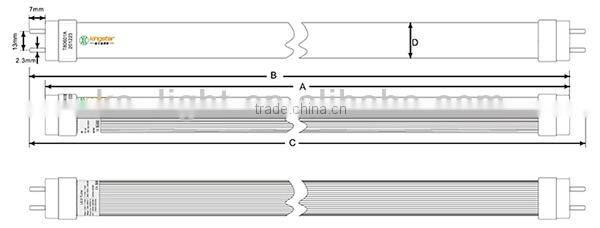

Standard

Length

Dimension (mm)

A (max)

B (max)

C (max)

D (max)

0.6M

590

597

604

26

0.9M

894

902

909

26

1.2M

1198

1206

1213

26

LED Tube

Length

Carton Dimension

L (max)

H (max)

W (max)

Q’ty / Carton

N.W

G.W

0.6M

670 mm

220 mm

220 mm

25 pcs

5.4kg

6.0kg

0.9M

970 mm

220 mm

220 mm

25 pcs

8.2kg

9.0kg

1.2M

1270 mm

220 mm

220 mm

25 pcs

11.0kg

12.0kg
