“DUNHUI” is your correct choice. Welcome to visit
Cuplock is a multi-purpose steel scaffold system for general access and supporting vertical loads. The unique circular node point allows up to 4 components to be connected in one fastening action.
Cuplock scaffold is one new type push-in steel scaddold. The original toothed Bowl connector design make the scaffold has feathures of rapidly cannibalizing, labor-saving, stable and reliable structure, fully equipped, versatile, large capacity, safe and reliable, easy processing, easy to lose, easy to manage, easy to transport, widely used and so on. Can fully meet the requirements of the construction of houses, bridges and culverts, tunnels , chimneys, towers and other buildings .

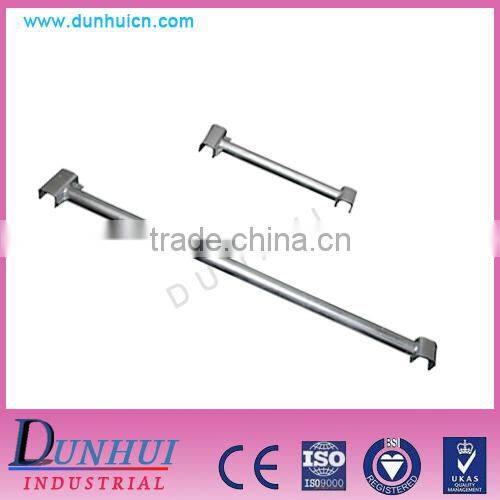

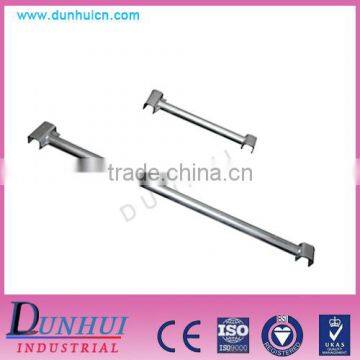

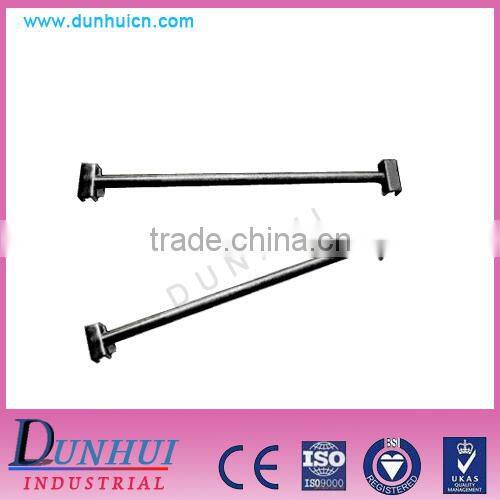

1. DH-B002D Professional transom BEAM for scaffolding with great price
Transoms are designed for steel plank and wood plank, it is made up of 48.3x3.2mm high strength low alloy steel tubing with two “U” shape hook at both sides. It can be put to anywhere between horizontals for decreasing the support space as well as supporting the outside plank. Various kinds of transom are compliant with specification of horizontals, such as CI43, CIB43 etc.

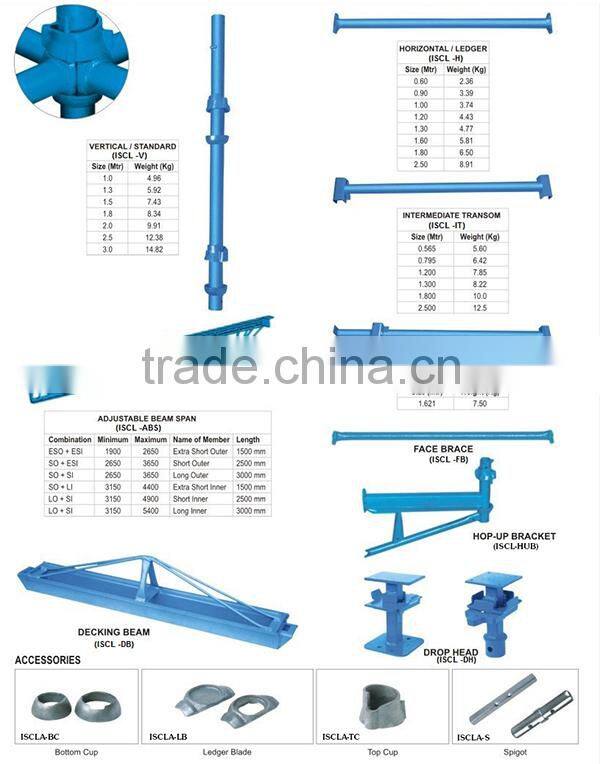

2. Major parts of the ringlock scaffold performance parameters
3.Specification
Product name |
Cuplock scaffolding |
Components |
standard ,ledger,diagonal , top cup, bottom cup, Ledger Blade |
Material |
Q235/345/195 |
Surface |
galvanized, Hot dip galvanized, Painted |
color |
red paint, blue paint, yellow paint, green paint, bright galvanized |
size |
Steel pipe diameter is 48.3mm Thickness :2.75/3.0/3.2/3.25/4.0mm standard Length:0.5/1.0/1.5/2.0/2.5/3.0M Ledger length:0.6/0.9/1.0/1.2/1.5/1.8 |
usege |
Our products are used widely in bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry and civil building etc |
Packing |
Bulk or Bundle with steel strip |
Size:
|
Standard Ø48.3×3.25 Q345 |
Ledger Ø48.3×3.25 Q235 |
Diagonal Ø48.3×3.25 Q235 |
|||
Size/mm |
Weight/kg |
Size/mm |
Weight/kg |
Size/mm |
Weight/kg |
500 |
3.45 |
600 |
2.54 |
1300×2000 |
9.21 |
1000 |
5.58 |
900 |
3.60 |
1800×2000 |
10.31 |
1300 |
7.97 |
1000 |
4.10 |
2500×2000 |
12.16 |
1500 |
8.74 |
1200 |
4.70 |
|
|
1800 |
10.60 |
1250 |
5.00 |
|
|
2000 |
11.38 |
1300 |
5.20 |
|
|
2500 |
14.00 |
1600 |
6.30 |
|
|
3000 |
16.63 |
1800 |
7.00 |
|
|
|
|
2500 |
9.54 |
|
|

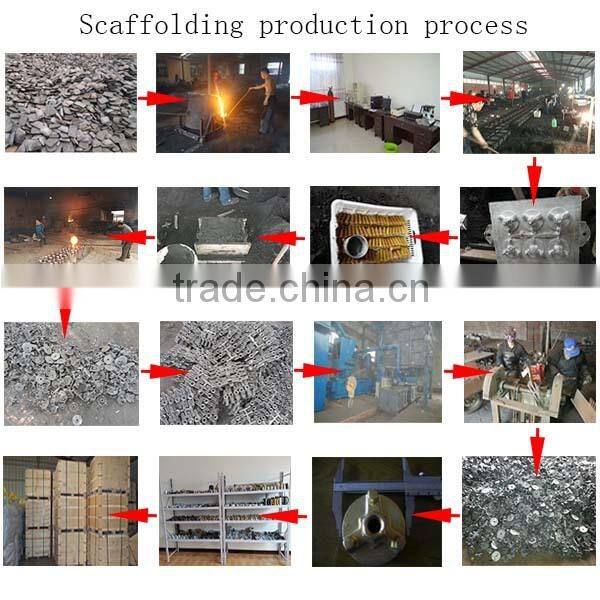

4. Scaffolding production process

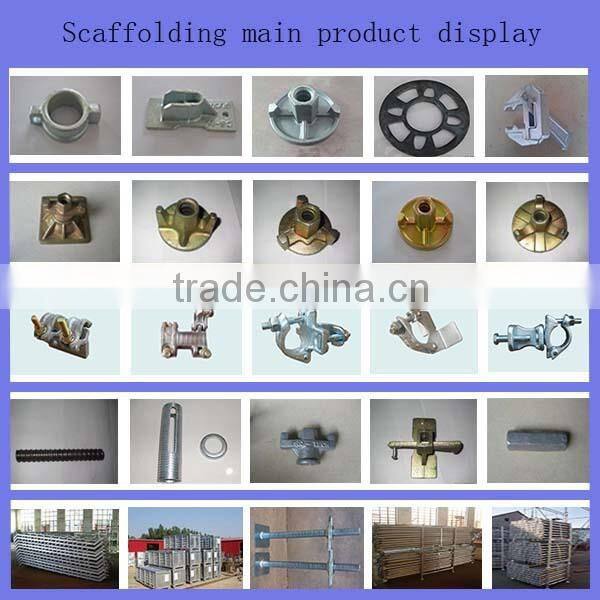

5. Scaffolding main product display
6. Personnel station:
Professional salesmen, and 6 Engineers, More than 30 inspectors.
7 .Quality and Safety:
We have a strict and complete quality control system. The enough inspectors to ensure that each product can meet the quality requirements of customers. We do the final inspection in own factory with ISO 9001:2008.
8 .Location:
DUNHUI has a convenient location at the city’s exporting business zone, Dongli District. We are only 19 km to Tianjin International Airport, and very close to major highways, and Tianjin Port. We look forward to work with your business!
