24W 2014 NEW LED Ceiling Lamp Brightness ceiling light led

Specifications

led ceiling light with cheap price
Dimensions: 550*H85mm
Cover: PC
Power: 24W
LEDs: 440pcs 3528 SMD

24W 2014 NEW LED Ceiling Lighting Brightness led ceiling light with cheap price

ModelNo	Szie	Power	LuminousFlux	LEDType	LEDQ'TY	InputVoltage	Ra	Powerfactor
KS-Y8W	Ø300*H65mm	8	600-700	3528	128	AC85-265V	>72or>80	>0.9
KS-Y12W	Ø350*H65mm	12	800-900	3528	180	AC85-265V	>72or>80	>0.9
KS-Y15W	Ø400*H70mm	15	1100-1200	3528	240	AC85-265V	>72or>80	>0.9
KS-Y24W	Ø550*H85mm	24	2100-2200	3528	440	AC85-265V	>72or>80	>0.9

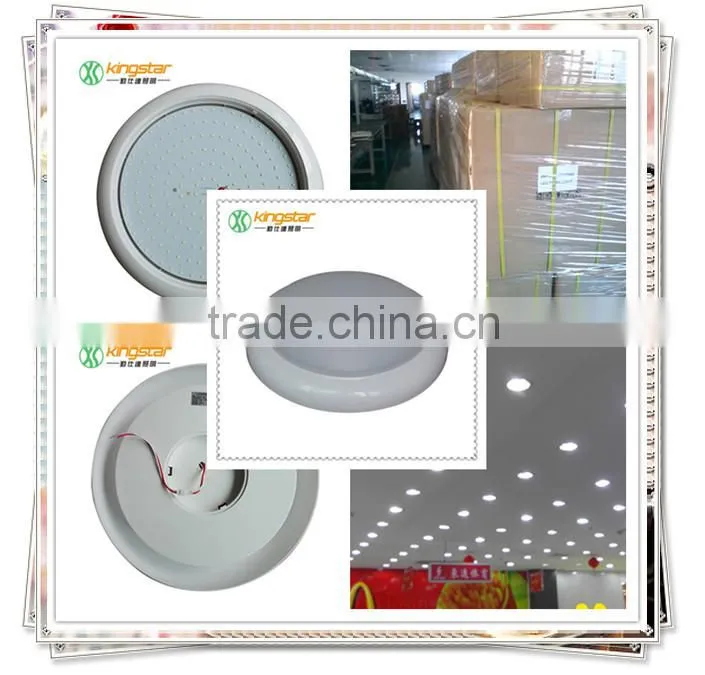

Picture of the LED Ceiling Light:

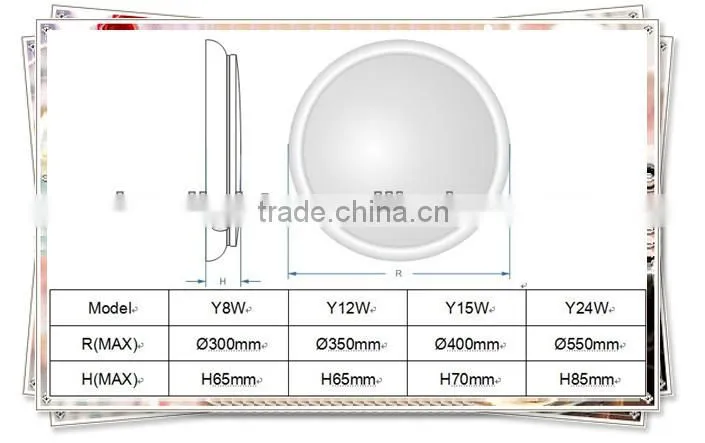

Product  dimension:

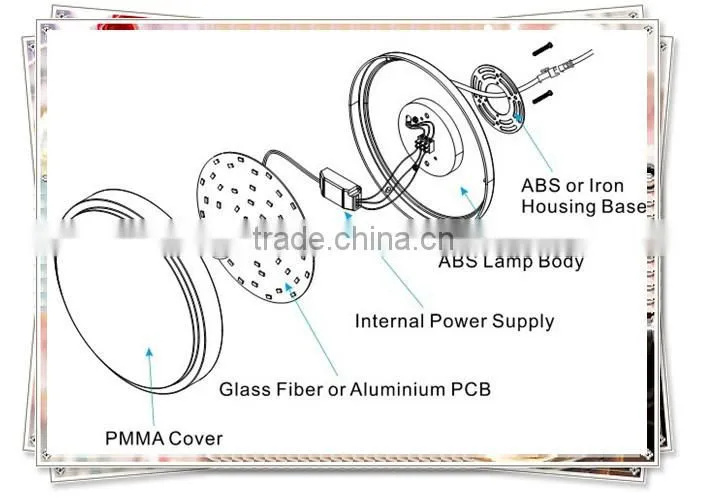

Product structure:





Product Installation:

1. Please fix the base on the stable and fixed ceiling, or it will fall or damage.
2. Please connect the input power carefully, incorrect connection will cause fire accident.
3. Keep the lamp body card slot match base card buckle, rotate from left to right, can be easily installed.

4. Please confirm if it installs correctly, then turn on.

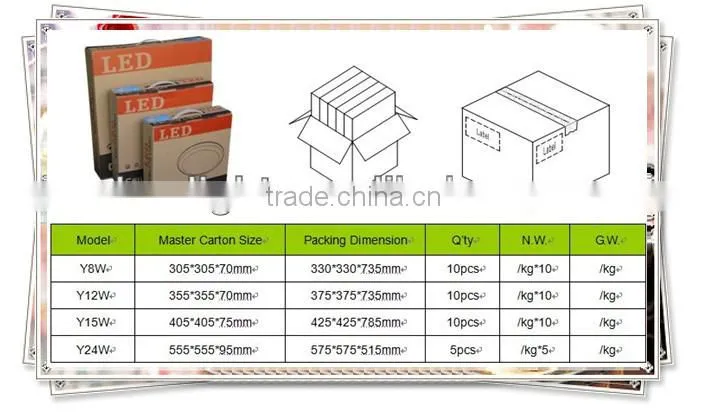

 Product Package:

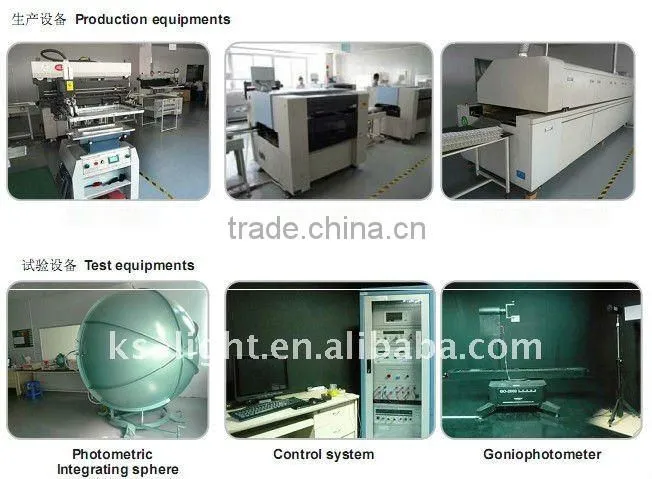

Kingstar quality contorl:
1. 100% testing before aging .
2. Aging for no less than 24hours, and the switch is off-on aucomatically every 2minutes during
aging procedure.
3. 100% testing by safe tester (with 3700V high voltage) before packing.
4. Except normal CE, RoHS, FCC certificates for the finished products, we can provide IES files.
Kingstar Services and terms:
Warranty: 3years , free replacement.
Lead time: 10-15 days.
Payment: TT, Western Union, L/C.
Transportation: DHL, UPS, TNT,FedEx, Air, Sea, etc.
Certificate of product: CE, SAA, TUV, ETL, ROHS



Application

1.Hotels, Conference, Meeting rooms

2.Factories & Offices

3.Commercial Purposes

4.Residential/institution Buildings

5.Schools, Colleges & Universities, Hospitals

6.Other lighting use

mainly applied on indoor and commercial illumination,it can be widely used in starred hotels,shopping centers,meeting rooms,offices and other occasions that have high demand for the comparatively strict controlof light,such as laboratories. it can replace traditional grille lights directly.



Features:
1.Can replace traditional LED tube lights, no need for ballast and starter, reducing the rate of failure;
2. Turn on the light immediately, no flicker and no delay, no high-frequency noise;
3. Aluminum housing, resistant to damage and excellent heat dissipation, and recyclable;
4. Wide Voltage range, can work under low voltage, the brightness will not change with voltage fluctuation;
5. Great color rendering, color presentation is more realistic, more vivid, better light definition;
6. Long lifetime, lifespan is more than 50,000 hours;
7. Eco-friendly, No pollution of Lead and Mercury, Lower energy consumption and pollutants eliminated;
8.High luminous efficiency, save 60% electricity bill compared to traditional tube light.

2014 NEW LED Ceiling Light Brightness
Product features :
1. With internal Constant Current Power Supply.
2. Use the most mature international well-known LED SMD3528 as the light source, which can
ensure the led ceiling light brightness and long lifetime, also can reduce the light decay.
3. Use the high quality glass fiber or aluminum PCB for LED’s better heat dissipation.
4. High quality PMMA acrylic plastic material is of anti-UV radiation, durable, not brittle, not prone
to yellow.
5. 120º beam angle makes the lighting effect better.
6. Ambient temperature:-20°C~40°C, surface temperature: 42°C~45°C.
7. No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation, no
frequency flash, instant startup, no hurting eyes.





led ceililng light Remarks

1. Payment: L/C, T/T,Western Union, Paypal payment are available

2. Lead time: 10-15 workdays  after receiving the deposit.

3. Delivery method:DHL/Fedex/UPS express, Sea or air shipping for your choice

4. Delivery Port.: led TUBE light Factory delivery at the port of Shenzhen, China

5. MOQ:10pcs   led ceiling light
