Product Details
| Place of Origin | Guangdong, China | Brand Name | Startek | |
| Model Number | KD090C-2 | Type | TFT |
Product Description
Specifications
24 bit RGB interfaceWVGA 800* 480 dots in 9.0 inch landscape
16:9 aspect ratio
Stock for sale and never end of supply
1. LCD name: 9.0 inch , 800*480 , 24 bit RGB interface , Landscape TFT LCD
2. Part No.:KD090C-1
3. Display type:TFT
4. Display mode: transmissive
5. Resolution(pixels):800*RGB*480 dots,WVGA
6. Overall size:210.78*126.4*5.3 mm
7. Viewing area:201.1*115.15mm
8. Active area:198*112.08mm
9. Interface type: 24 bit RGB interface
10 Interface connector: connecting type
11. Backlight type and color:LED backlight/white
12. Viewing direction: 6:00
13. Operating temperature range: -20----70°C degrees
14. Storage Temperature range: -30----80°C degrees
15. Lead time:
Sample(1---30 PCS): immediately
31---100PCS: 1 week
101---500 PCS: 1--2 weeks
501---1000 PCS: 2--5 weeks
1001---5000 PCS: 3--5 weeks
5000 PCS+: 5--7 weeks

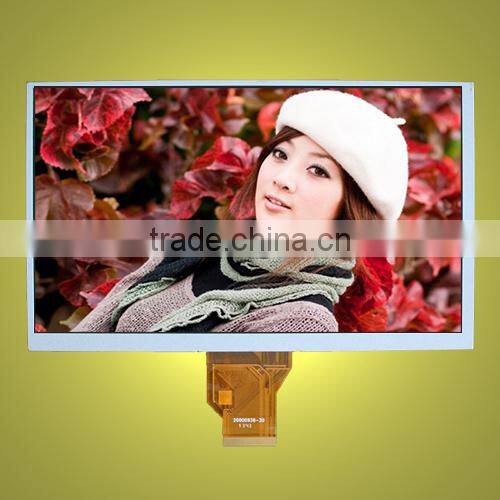

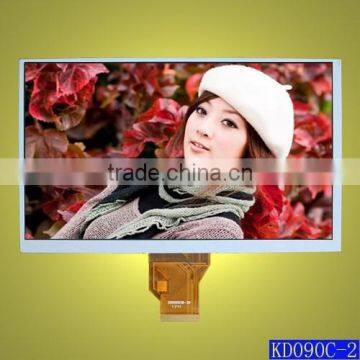

PIC1: The photo of the front of the working LCD module
PIC 2: The photo of the front of the non-working LCD module

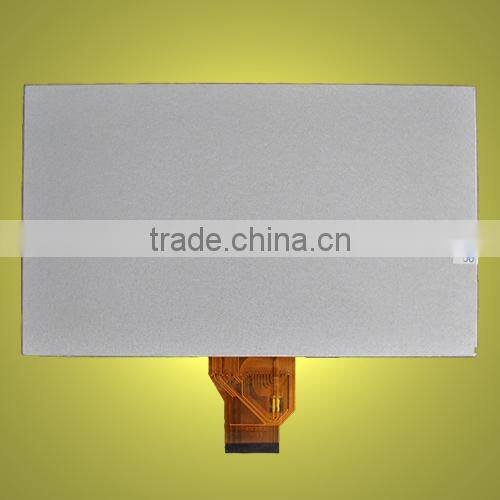

PIC 3: The photo of back of the LCD module
Brand | Startek | Part Number | KD090C-1 |
Species | TFT LCD module | Screen size | 9.0 inch |
Backlight |
| Brightness | 200 |
Contrast | 300:1 | Resolution | 800xRGBx480dots |
Pixels | 384000 | Response Time | 10(ms) |
Interface Type | 24 bit RGB interface | ||
Overall Size | 210.78*126.4*5.3 mm | Viewing Area | 201.1*115.15mm |
Active Area | 198*112.08mm | Driver |
|
Touch Panel | Without | Viewing Direction | 6:00 |
Operating temperature range | -20----70°C degrees | Storage Temperature range | -30----80°C degrees |
