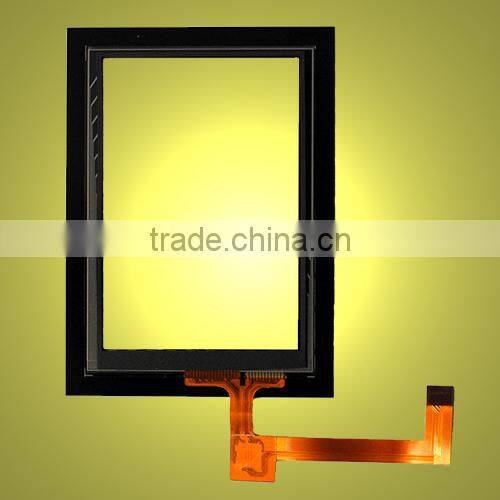

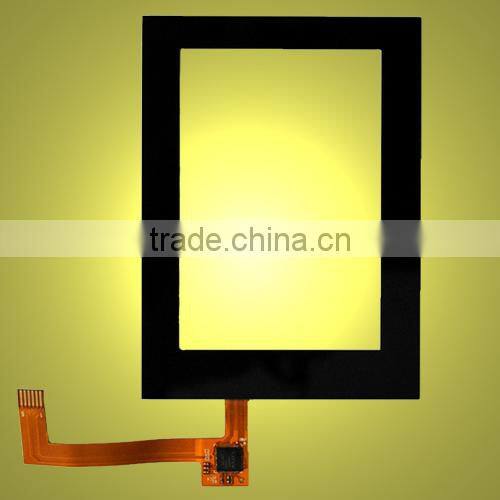

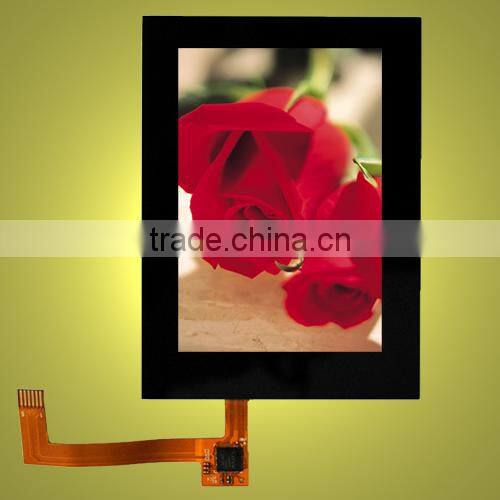

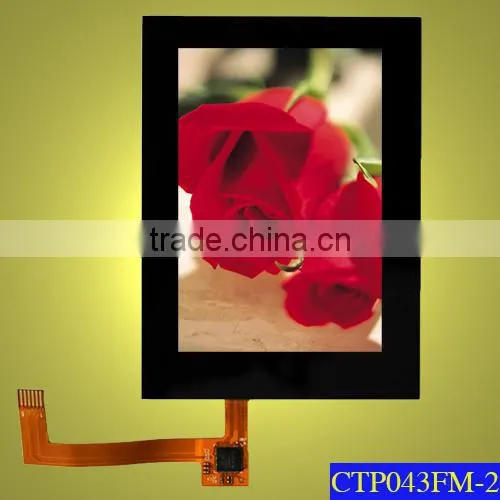

1. Product name: 4.3 inch Multi-touch point capacitive touch panel
2. Part No.:CTP043FM-2
3. Other model Part No.
4. Compatible part No.
5. Function require: Multi-touch
6. Touch type: Finger
7. Touch intensity: <0.1g
8. Action force: 80gf
9. Transmittance: 85%
10. Outline Dimension: 76.06*114.25*1.825 (MM)
11. Viewing area size: 57.16*94.60 (MM)
12. Active area size: 58.81*95.60 (MM)
13.Drive: ILI2113
14.Interface type: IIC
15.Interface connector:Socket
16.Hardness: Glass hardness - Mohs 7
17. Surface hardness: 5H above
18. Structure: G+G
19. Life span: 1000000 or more times
20. Resolution L < 1mm
21. Response time L<10ms
22. Operating system support: Linux, Android
23.Operating voltage:DC 2.8V
24.Operating temperature range: -10----70°C degrees
25.Operating humidity range: 20-85%
26.Storage Temperature range: -30----80°C degrees
27. Humidity: at the temperature below 40 ° C case, RH 0 to 90%
28. Lead time
Sample(1---30 PCS) immediately
31---100PCS 1 week
101---500 PCS 1--2 weeks
501---1000 PCS 2--5 weeks
1001---5000 PCS 3--5 weeks
5000 PCS+ 5--7 weeks
